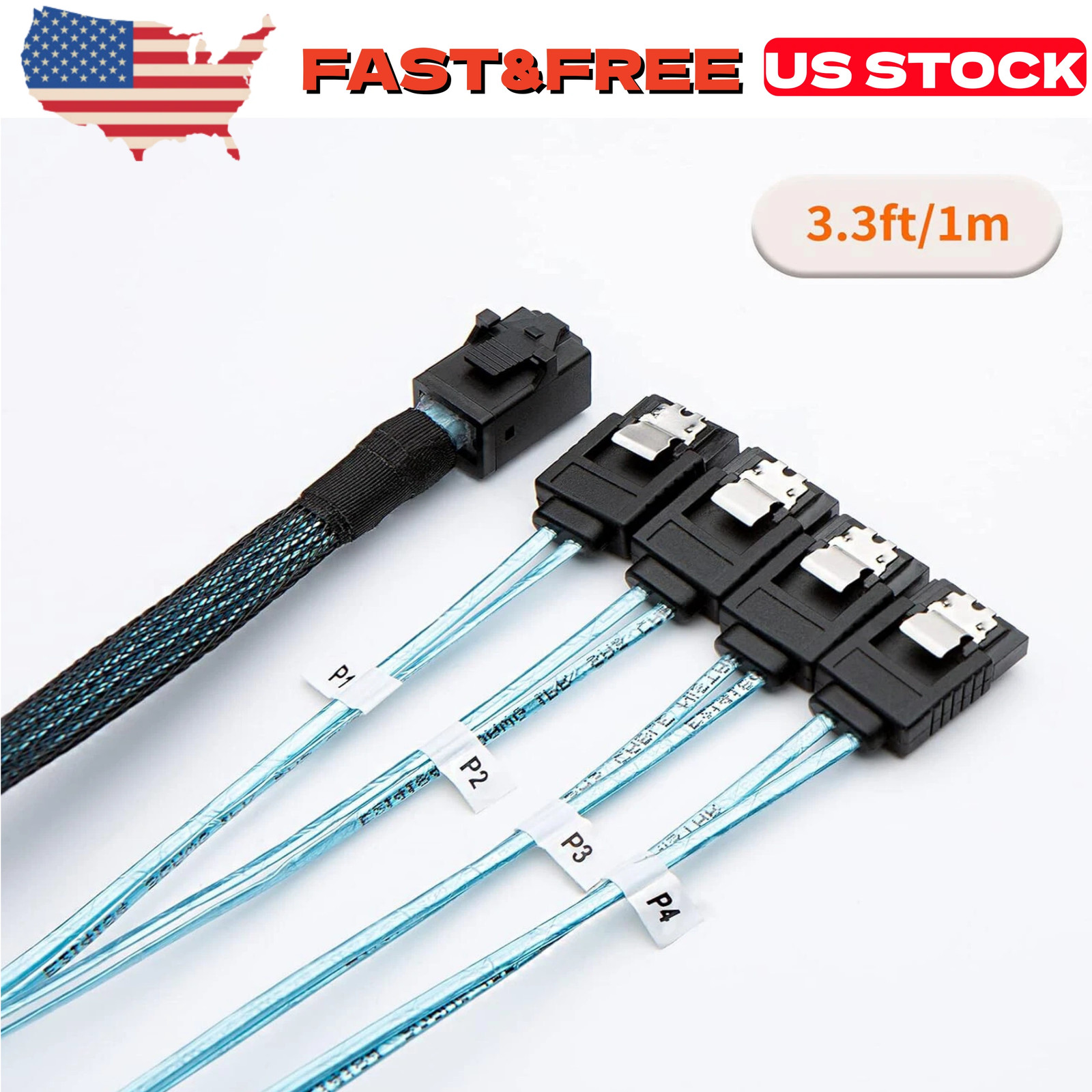

New Internal HDD Mini SAS Cable SFF-8643 To 4 SATA Connect to Hard Drive 1M US
PRODUCT DESCRIPTION
Product Details:
Product Type: Internal HDD Mini SAS Cable
Product Condition: 100% Brand new and high quality.
Fitment Type: Replacement Directly
Description
Please note: This mini SAS (SFF-8643) TO 4x SATA cable, SFF-8643 is host, connect to the Motherboard or RAID controller with mini SAS ports. 4x7pin SATA is the target, connect to the hard drives with SATA port
Before you buy this cable, Please make sure the Mini SAS (SFF-8643) on your motherboard or RAID controller. If the Mini SAS(SFF-8643) on your backplane, this cable will not work with them
Sff-8643: the new connector uses less PCB real estate and allows higher port density for internal hosts and devices. Hybrid versions of these new cables will allow for a smooth transition from 6GB to 12GB
Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and Fast data access Cable length 1MApplications
Data/Communications
1. RAID (Redundant Array of Independent Disks )
2. Workstations
3. Rack-mount server
4. Servers
5. Storage rack
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.
Mating Force: 100 N maximum for HD Mini SAS connector.
Unmating Force: 50 N maximum for HD Mini SAS connector..
Mating Force: 45 N maximum for SATA connector.
Unmating Force: 10 N maximum for SATA connector.Electrical Performance
1.Contact Current Rating
0.5Amperes maximum per pin when mated.
2.Voltage Rating
30VAC per contact when mated or unmated.
3.Contact Resistance
30mohm max. initial, 15mohm maximum after stress test.
4.Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5.Insulation Resistance
1000 Mohm minimum.Signal Integrity
1. Mated Connector Impedance: 100 ohm±15%
2. Cable Absolute Impedance: 100 ohm±10%
3. Cable Pair Matching: ±5 ohm
4. Common Mode Impedance: 25 to 40 ohms
5. Insertion loss: -6dB maximum up to 4.5Ghz;
6. Crosstalk: -26 dB up to 6Ghz;Package Quantity: 1 x nternal HDD Mini SAS Cable SFF-8643 To 4 SATA Connect to Hard Drive 1M
Attention:Please read the product instructions and pictures carefully before purchasing
to ensure that the product model matches yours, so that you can carry out maintenance more quickly!
Feature:
- High Quality
- Easy install
- Simple operation
- US Seller-Fast and Free Shipping
Package Includes:
1x Internal HDD Mini SAS Cable(as shown in the picture）
Note:
1.Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
2.No instruction included. Professional installation recommended.
3.Please feel free to contact us if you have any questions. Thanks for browsing!
