AMD X870E Chipset, Socket AM5, Ryzen 7, Ryzen 9 Processor Supported

Model #: X870E-P

MPN: PROX870E-PWIFI

UPC/EAN: 824142425565

Factory New in Box (Not Refurbished)

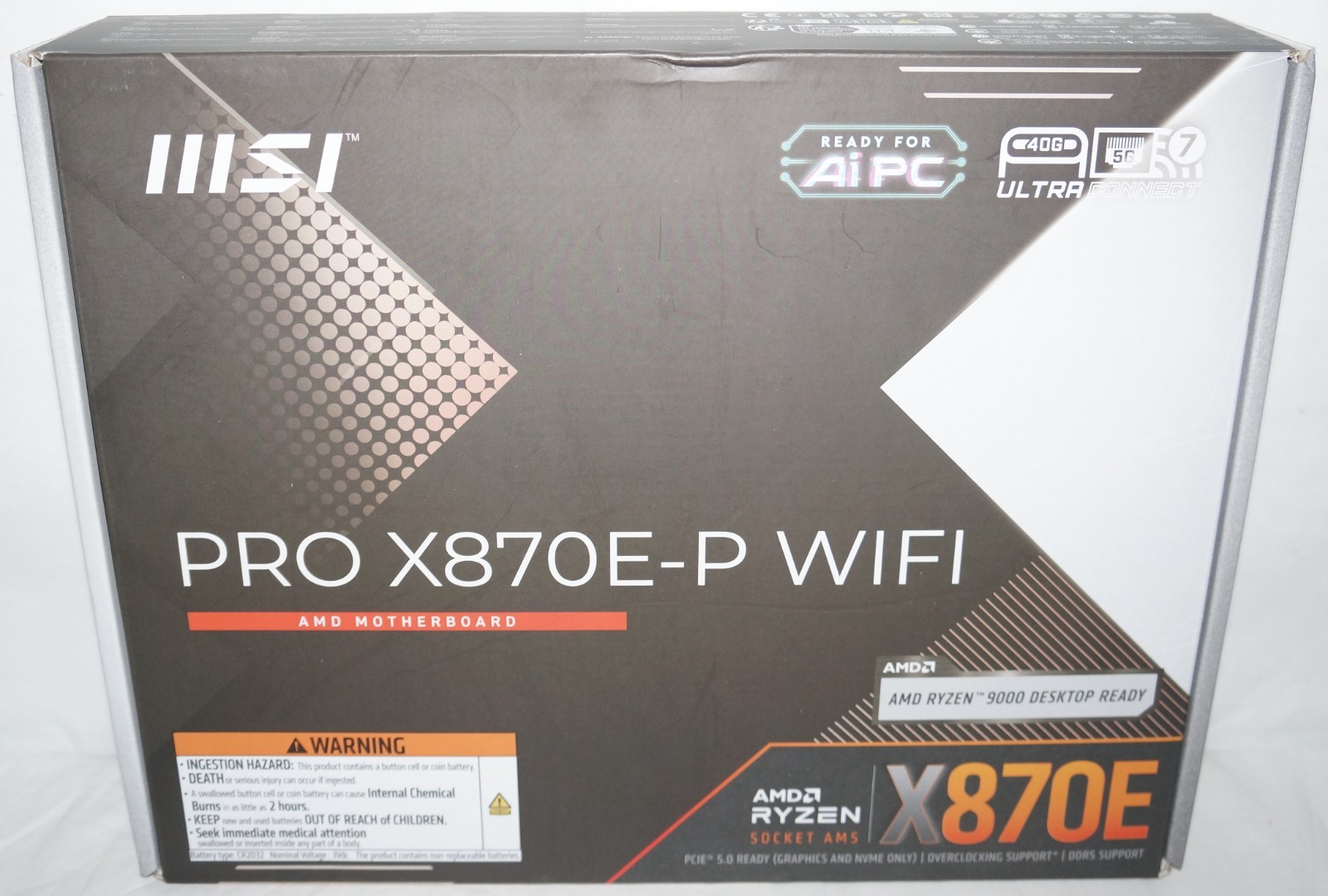

You are looking at a brand New MSI Pro X870E-P ATX Gaming Motherboard - AMD X870E Chipset, Socket AM5, Ryzen 7, Ryzen 9 Processor Supported.

It is factory new in box - never been used.

PRO X870E-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen 9000 series processors.

• Chipset: AMD X870E
  AMD CPU Support: Ryzen
  Socket Type: AM5
  ECC: Non-ECC; Non-Registered
  Memory Type: DDR5-4800, DDR5-5200, DDR5-5400, DDR5-5600, DDR5-5000
  Memory Speeds Supported: 8200 - 5600 MHz (OC)
  Memory Slots: 4 x 288pin DIMM
  Memory Channel Support: Dual Channel
  Max Memory Supported: 256GB
  Maximum Memory Supported Per Slot: 64GB
  Onboard Graphic Chipset: Requires CPU with Integrated Graphics
  M.2 Port Type: 2260, 2280, 22110
  SATA Express: 1 x M.2 Socket 3, E Key, 3 x M.2 Socket 3, M Key
  SATA 6Gb/s: 4
  RAID Support: RAID 0, RAID 1, RAID 5, RAID 10
  Audio Chipset: Realtek ALC897
  Audio Channels: 7.1
  WiFi Support: M.2 Slot
  LAN Chipset: Realtek 8126VB
  LAN Speed: 100/1000/2500/5000Mbps
  Wireless Technology:
  802.11b
  802.11g
  802.11a
  WiFi 4 (802.11n)
  WiFi 5 (802.11ac)
  WiFi 6 (802.11ax)
  Bluetooth v5.4
  WiFi 7 (802.11be)
  PCI Express 4.0 x16: 1
  PCI Express 5.0 x16: 1
  PCI Express 3.0 x16: 1
  PCI Express x1: 1
  LAN Ports: 1 x 100/1000/2500/5000 RJ-45 LAN
  Audio Ports:
  1 x 3.5 mm Microphone
  1 x 3.5 mm Line-In
  1 x 3.5 mm Line-Out
  Specialty Ports: 2 x WiFi Antenna Ports
  USB 2.0: 4 x USB 2.0 (Type-A)
  USB 3.1:
  1 x USB 3.2 (Gen 2x2 Type-C)
  2 x USB 3.2 (Gen 1 Type-A)
  1 x USB4 (Type-C 40 Gb/s)
  Video Connectors: 1 x HDMI 2.1
  Headers:
  1 x CPU Fan Header
  1 x Water Pump Header
  6 x System Fan Header
  USB
  3 x USB 2.0 Headers (6 Ports)
  2 x USB 3.2 Gen 1 Type-A Headers (4 Ports)
  1 x USB 3.2 Gen 2 Type-C Header (1 Port)
  Other I/O: 3 x Addressable LED Headers
  Power Connectors
  1 x 24-pin ATX Connector
  2 x 8-pin +12 V Connector
  1 x 8-pin PCIe Power Connector
  ATX Connector: 24-pin ATX Power Connector
  Depth: 12.00 in. (304.80 mm)
  Width: 9.61 in. (244.00 mm)
  Form Factor: ATX
  What's in the Box
  Motherboard
• EZ M.2 Clip Remover
• M.2 Clips
• Antenna
• 2x SATA Cables
• 1 to 2 EZ Conn-Cable
