1PC New Original Graphtec X / Y Drive Belt for CE5000 CE3000 Series Cutting Plotters 1PC • New Original OEM X / Y Drive Belt | CE5000 / CE3000 40 / 60 / 120 / 120AP Sizes

Product Name: New Original Graphtec X Drive Belt / Y Drive Belt

Compatibility: Graphtec CE5000 (40/60/120/120AP), CE3000 (40/60/120/120AP)

Y Belt OEM P/N (Reference): 621369800 (40), 621359810 (60), 621359820 (120)

Quantity & Condition: 1 Piece • Brand New, Factory Sealed

Function: Precise Axis Traversal • Smooth Power Transfer • Low-Noise Operation

Solves Issues: Belt slipping/stretching • Misaligned cuts • Carriage vibration • Premature motor wear

1PC New Original Graphtec X or Y Drive Belt – CE5000 / CE3000 Series (All Widths)

This 1PC New Original Graphtec Drive Belt is the official OEM replacement for either the X-axis (carriage) or Y-axis (media feed) on Graphtec CE5000 and CE3000 series cutting plotters (40/60/120/120AP models). As a critical transmission component, it ensures accurate, repeatable movement of the carriage (X) or media roller (Y) at high speeds. Worn, stretched, or cracked belts cause slippage, inconsistent cut depth, contour misalignment, and increased noise—leading to material waste, reworks, and reduced plotter lifespan.

Manufactured from high-strength, oil-resistant rubber with precision-molded teeth, this genuine Graphtec belt delivers OEM-grade durability and grip, minimizing stretch and wear even under heavy daily use. Unlike generic aftermarket belts that often fail early or fit poorly, the original Graphtec belt is engineered to strict tolerances, ensuring a perfect fit with drive pulleys and idlers. It operates quietly and smoothly, restoring your plotter’s cutting precision and reliability to factory standards.

Choose X Drive Belt (for left-right carriage movement) or Y Drive Belt (for forward-back media feed) at checkout. Each belt is sold as a 1-piece pack, ideal for replacing a damaged belt or as a spare for preventive maintenance. Installation requires basic hand tools and includes a simple tension adjustment—follow the step-by-step guide below to ensure optimal performance and avoid premature wear.

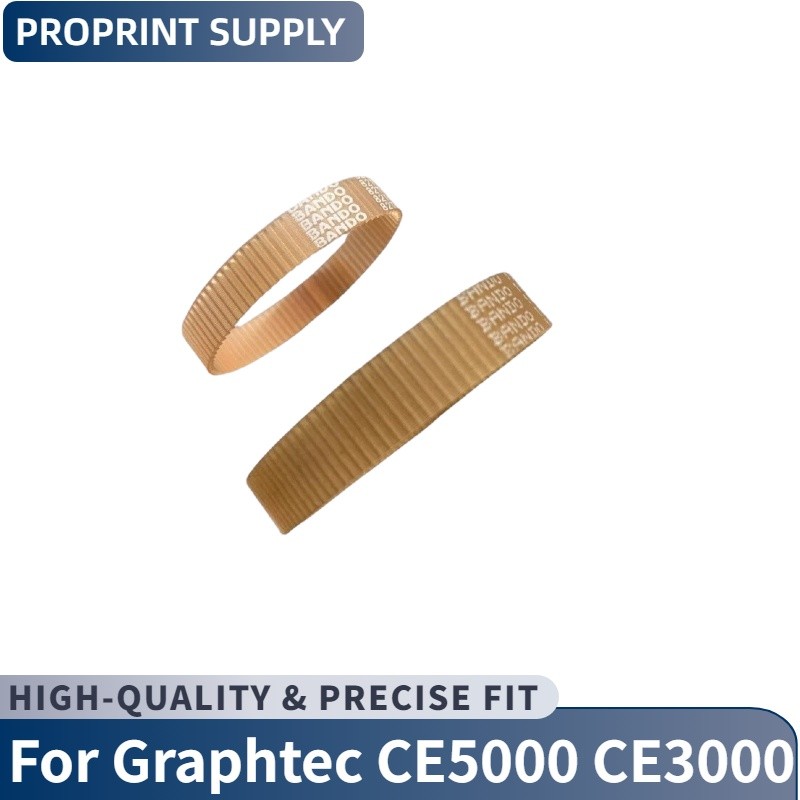

X-Axis Drive Belt (Carriage) Y-Axis Drive Belt (Media Feed) 📋 Core Specifications

Brand: 100% New Original Graphtec ® Genuine OEM

Type: Precision Timing Belt (X or Y Axis, Select at Checkout)

Material: High-Strength Rubber • Precision-Molded Teeth • Reinforced Core

Compatibility: CE5000-40/60/120/120AP, CE3000-40/60/120/120AP

Y Belt OEM Part Numbers (Graphtec Service Manual):

CE5000-40: 621369800
• CE5000-60: 621359810
• CE5000-120/120AP: 621359820

Quantity: 1 Piece (Single Belt)

✅ Compatible Graphtec Models

• CE5000-40
• CE5000-60
• CE5000-120
• CE5000-120AP
• CE3000-40
• CE3000-60
• CE3000-120
• CE3000-120AP

💡 Fit Note: Belt length varies by plotter width (40/60/120). Select the correct axis (X/Y) and plotter size at checkout to ensure compatibility. This belt is not compatible with CE6000/CE7000/FC9000 models.

🔧 Installation & Tension Adjustment Guide

⚠️ SAFETY FIRST: POWER OFF and UNPLUG your plotter before starting. Wear gloves to protect hands from sharp edges.

1. Access the Belt:
   X-Axis: Remove the right-side cover (if applicable) to access the carriage drive belt and pulleys.
   • Y-Axis: Remove the rear cover to access the media drive belt and motor pulley.
2. Remove Old Belt: Loosen the idler pulley tension screw to release tension. Slide the old belt off the motor pulley and idler pulley.
3. Install New Belt: Align the new Graphtec belt with the pulleys, ensuring teeth fully engage. Tighten the tension screw gradually.
4. Adjust Tension (Critical): Apply moderate pressure to the center of the belt span—deflection should be 3–5 mm. Over-tightening causes motor bearing wear; under-tightening leads to slippage.
5. Test Operation: Reinstall covers, power on the plotter, and perform a test cut. Check for smooth movement, no slipping, and precise cuts.

💡 Pro Tip: Replace both X and Y belts at the same time for balanced performance. Clean pulleys with a lint-free cloth before installing the new belt to remove debris.

📦 Package Contents

• ✔ 1 x New Original Graphtec Drive Belt (X or Y Axis, Select at Checkout)

❌ Not Included: Idler pulleys, tension screws, or tools.

🏢 Why Choose Original Graphtec Drive Belts?

• Genuine OEM Precision: Exact fit and tooth profile—eliminates slippage and ensures accurate cuts.
• Long-Lasting Durability: Resists stretching, cracking, and oil damage—outlasts generic belts by 2–3x.
• Quiet Operation: Smooth power transfer reduces vibration and noise—ideal for home and office use.
• Protects Your Plotter: Proper tension and fit prevent premature wear on motor bearings and pulleys.
• Factory Certified: Meets Graphtec’s strict quality standards—ensures reliable performance for years.
