New in Box D-Link 4 Port Broadband VPN Router with Ethernet Cable DI-804HV For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

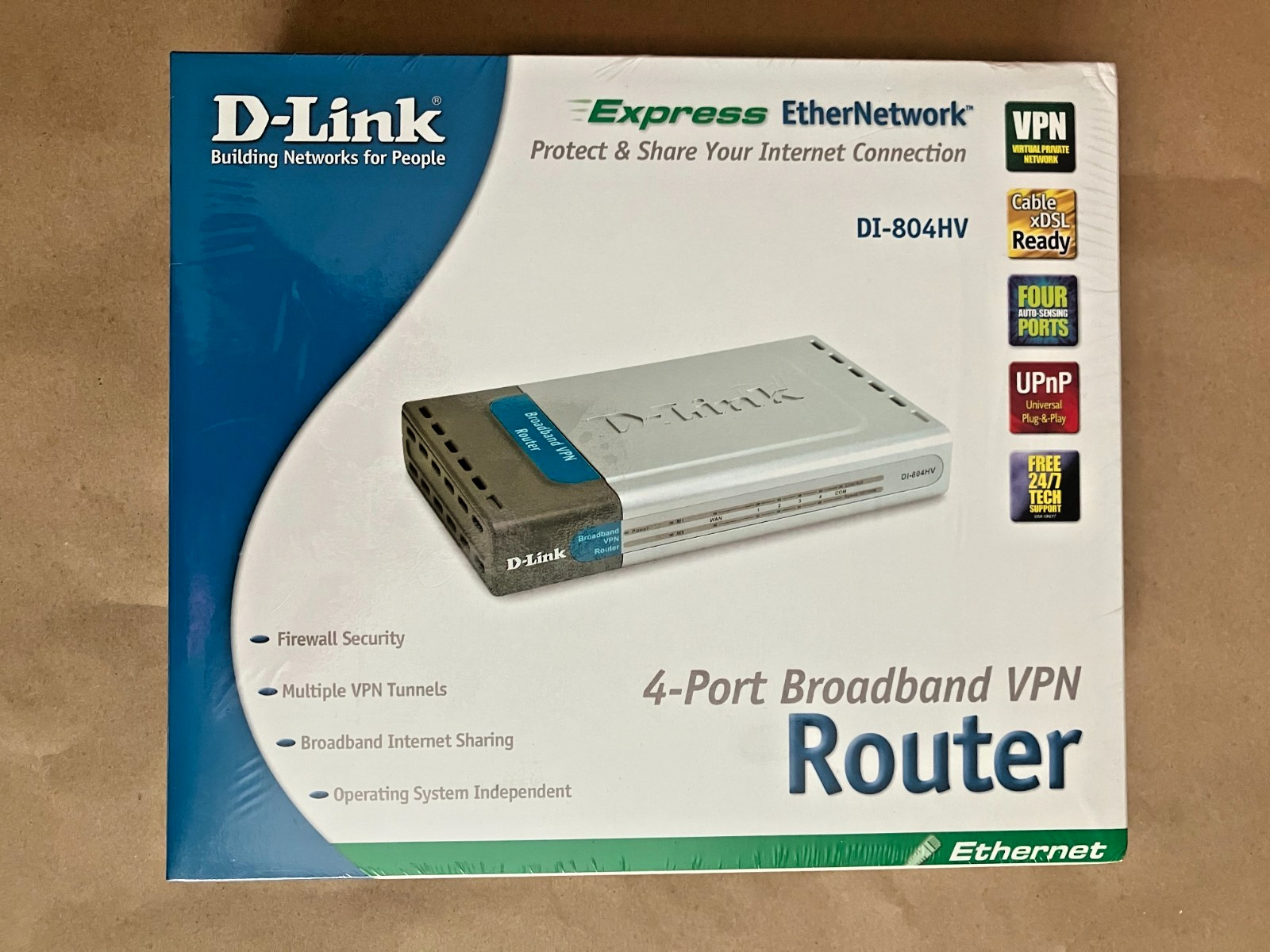

New in Box D-Link 4 Port Broadband VPN Router with Ethernet Cable DI-804HV

Price: US $34.98

New in box, still in original shrink wrap. This wired broadband router with VPN does not have DI-804HV is a 4-port Ethernet Broadband Router with VPN (Virtual Private Network) capabilities. The DI-804HV is ideal if you’re creating your home or small business network, or if you’re a more advanced user looking for additional management settings. The VPN feature allows users to securely connect multiple computers over the Internet. It also features 10/100Mbps Auto MDIX Ethernet ports allowing CAT 5 cable (straight-through or crossover) to work with the DI-804HV. The DI-804HV includes a new setup wizard and D-Link’s easy-to-use web-based graphical user interface (GUI) to help users configure network settings with a few simple clicks. With its built-in firewall protection, this router will also help to prevent unwanted Internet intruders from accessing your private network.
HardwareNumber of Ports

1 RJ-45 10BASE-T/100BASE-TX port for DSL/Cable modem connection
1 DB-9 RS-232 port (460Kbps Baud) for ISDN TA/analog modem connection (for WAN backup)
4 RJ-45 10BASE-T/100BASE-TX 10/100Mbps LAN switch ports

Broadband Support

DSL modem
Cable modem
PPP over Ethernet (PPPoE)

Backup Link Support

Dial-up ISDN TA
Dial-up Analog modem
PPP
Dial-on-Demand with auto login to ISP
Auto-disconnect with user-defined idle timer
PAP/CHAP security

Routing
Routed Packet Type

IP packets

Routing Protocols & Methods

RIP-1, RIP-2
Static Routing
Dynamic Routing

VPN & IPSec
Application Support

IPSec pass-through
PPPTP pass-through
L2TP pass-through

Data Encryption Methods

IP ESP (Encapsulating Security Payload)
Confidentiality over IP payload
Optional authentication of IP payload and ESP header
Null encryption

Encryption Transforms

56-bit DES (Data Encryption Standard)
168-bit 3DES

Authentication Transforms (for ESP and AH)

MD5
SHA-1

Security

Pre-shared key
Manual key
IKE Security Association (SA) assignment

Connection Modes

Site to Site
Client to Site

Number of Tunnels

40 IPSec tunnels (max.)

Internet Gateway & Firewall
Supported Functions

Network Address Translation (NAT)
DHCP server automatic IP assignment
Virtual server

Packet Inspection

Static Packet Inspection (SPI)

Number of DMZ Ports

1 port (user-assignable to any LAN port)

Firewall Security

Stateful Packet Inspection (SPI) to prevent Denial of Service (DoS) attacks (Syn flood, ICMP flood, UDP flood, "ping of death", IP spoofing, land attack, tear drop attack, IP address sweep attack, Win Nuke attack)
Intrusion Detection Logging
LAN/WAN filtering

Management & Configuration
IP Number Self-identification
