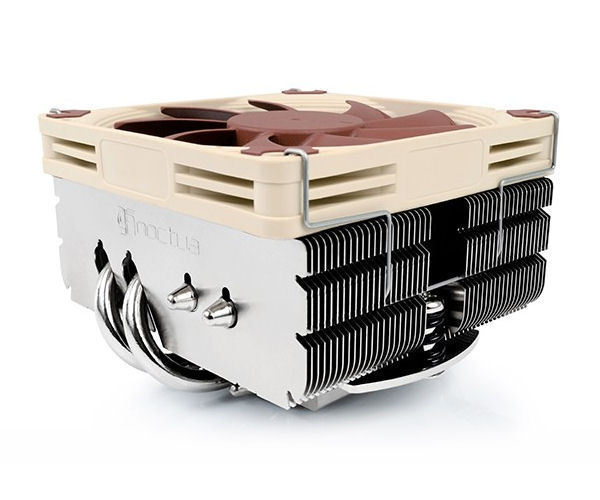

Award-winning NH-L9x65 cooler: more than 100 awards and recommendations from international hardware websites and magazines

Dedicated special edition for the AMD AM4 socket

Quiet, premium-grade NF-A9x14 92mm fan with PWM for automatic speed control

Includes Low-Noise Adaptor and renowned NT-H1 thermal compound

6-year manufacturer’s warranty

Type

Fan & Heatsinks

Fan Size

92 x 92 x 14mm, 92 x 92 x 25mm

Bearing Type

SSO2

RPM

2500 RPM (Max ), 1800 RPM ( w/ L.N.A ), Min Rotation Speed (PWM ): 300RPM

Air Flow

57.5m³/h (Max), 40.8 m³/h ( w/L.N.A. )

Noise Level

23.6 dB(A) ( Max), 14.8 dB(A) (w/ L.N.A )

Power Connector

4 Pin

Heatsink Material

Copper ( Base and Heat-pipes), Alum.( cooling Fins ), Soldered Joints, Nickel Plated

Fan Mounting Types to Heatsink

Vertical

Dimensions & Weight

Max CPU Cooler Height

65mm

Fan Dimensions

95 x 95 x 65mm (with fan)

Heatsink Dimensions

95 x 95 x 51mm (w/o fan)
