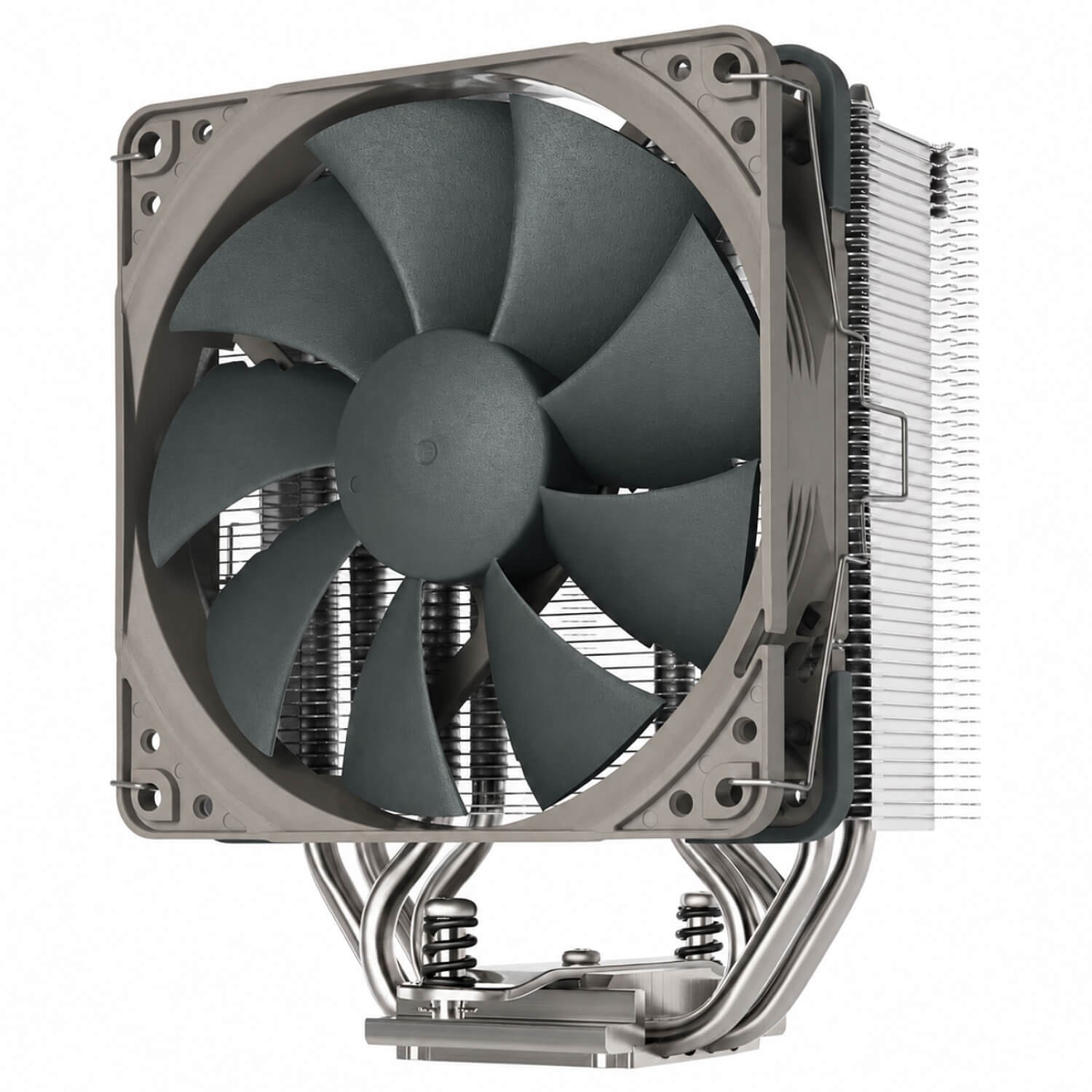

Noctua NH-U12S Redux 120mm CPU Cooler Intel LGA1700 1200 AMD AM5 AM4 Quiet PWM
Noctua NH-U12S redux CPU Cooler is a slim 120mm single-tower air cooler with an NF-P12 redux-1700 PWM fan, 158mm height, full RAM clearance, SecuFirm2 mounting and pre-applied NT-H1 for desktop PC cooling. NH-U12SREDUXSpecificationCooling TypeAir CoolingLighting typeNo lightingSocket1155\ 1150\ 1151\ AM4\ 1200\ 1700\ AM5\ 1851Height (mm)160Included Fan (mm)120TDP130WInformationNoctua NH-U12S redux CPU Cooler
A slim 120mm single-tower air cooler for compatible desktop processors
Designed for efficient CPU cooling with broad case, RAM and PCIe compatibility
allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" allowfullscreen="" title="Noctua 120mm CPU cooler comparison" style="box-sizing: border-box; position: absolute; top: 0px; left: 0px; width: 800px; height: 450px; border-width: 0px; border-style: none;">Slim 120mm Tower Design
The cooler measures 158mm in height and 125mm in width with the fan installed
Its slim heatsink has a fin depth of 45mm and does not overhang the RAM slots on current platforms
The compact width helps keep the top PCIe slot accessible on most standard ATX and Micro-ATX motherboards
NF-P12 redux-1700 PWM Fan
The included 120mm NF-P12 redux fan is designed for pressure-demanding heatsink applications
PWM control automatically adjusts the fan within its 0–1700rpm speed range
The four-pin fan reaches a maximum specified noise level of 25.1dB(A)
Four-Heatpipe Cooling Construction
Four nickel-plated copper heatpipes transfer heat through the aluminium fin stack
The precision-machined nickel-plated copper base supports even contact and heat distribution
NT-H1 thermal compound is pre-applied to the base for a simpler installation process
SecuFirm2 Multi-Socket Mounting
The included SecuFirm2 mounting system supports compatible AMD AM5 and AM4 platforms
Intel support includes compatible LGA1851, LGA1700, LGA1200 and LGA115x platforms
Compatibility with the processor, motherboard and case should be checked before installation
The cooler is covered by a six-year manufacturer warranty
