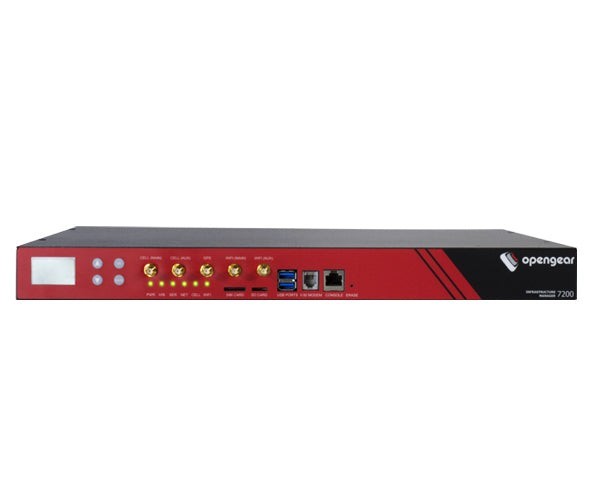

Opengear Infrastructure Manager IM7208-2-DAC-US Enterprise Console Server & Remote Management Appliance
Take complete control of your critical network infrastructure with the Opengear IM7208-2-DAC-US Infrastructure Manager. Designed for enterprise environments, data centers, telecommunications, and remote branch deployments, this powerful out-of-band management appliance provides secure remote access, monitoring, and recovery of network equipment—even during primary network outages.
Whether you're managing routers, switches, firewalls, servers, or other mission-critical devices, the IM7208 delivers reliable remote console access, advanced security, and redundant connectivity to keep your infrastructure online.
Key Features
- 8 x RJRS-232 Serial Console Ports (50–230,400 bps)
- Software-selectable Cisco Straight or Cisco Rolled pinout
- Dual Gigabit Ethernet Connectivity (select any two from four available interfaces)
- 10/100/1000 RJ45 Copper
- Dual SFP Fiber Module Slots
- Integrated 802.11 a/b/g/n Wireless Access Point
- Internal V.92 Analog Modem with RJ11 connection for emergency dial-up access
- 2 x USB 3.0 Host Ports
- Front LCD Configuration Panel
- Local RJ45 Console Port
- Dual Redundant Internal Universal AC Power Supplies
- Standard 1U Rack Mount Form Factor
Enterprise Security
Built for secure remote infrastructure management with support for:
- IPSec VPN
- OpenVPN
- SSH v2
- SSL Encryption
- TACACS+
- Kerberos
- LDAP Authentication
- RADIUS & RSA SecurID
- PAP / CHAP Authentication
- Authenticated NTP
- Syslog Event Logging
- FIPS 140-2 Validated Security Module
- NERC CIP Security Support
Advanced Network Management
- Stateful Firewall
- DHCP Server
- Dynamic DNS
- WAN Failover
- Port Forwarding
- Access Control Lists (ACLs)
- SNMP Monitoring
- Nagios Integration (NSCA & NRPE)
- HTTPS Web Management
- AJAX Web Terminal
- Secure Remote Console Access
- Auto Response & Event Management
- Firewall Throughput: 700 Mbps
- VPN Throughput: 140 Mbps
Hardware Specifications
- 1 GHz Marvell ARM Processor
- 256MB DDR3 Memory
- 64MB NOR Flash
- 16GB Internal Flash Storage
- Dual Internal Universal 100–240V AC Power Supplies
- Power Consumption: Less than 30 Watts
Dimensions:
- 17" x 10" x 1.75"
- 1U Rackmount
- Weight: Approximately 10 lbs.
Wireless Features
- 802.11 a/b/g/n
- Access Point or Client Mode
- Infrastructure or Ad-Hoc Operation
- WPA2, WPA, WEP Security
- AES & TKIP Encryption
Built for Enterprise Reliability
- MTBF: 150,000 Hours
- Serial Ports Protected with 4kV ESD
- Ethernet Ports with 1500V Isolation
- RoHS Compliant
- CE, UL, TÜV, C-Tick Certified
Ideal For
- Data Centers
- Enterprise IT
- Network Operations Centers (NOC)
- Managed Service Providers (MSPs)
- Telecommunications
- Industrial Networks
- Remote Branch Offices
- Server & Network Console Management
Buy with confidence! The Opengear IM7208-2-DAC-US is a premium enterprise-grade infrastructure management solution trusted by IT professionals worldwide for secure, reliable out-of-band management and remote access to mission-critical network equipment.
