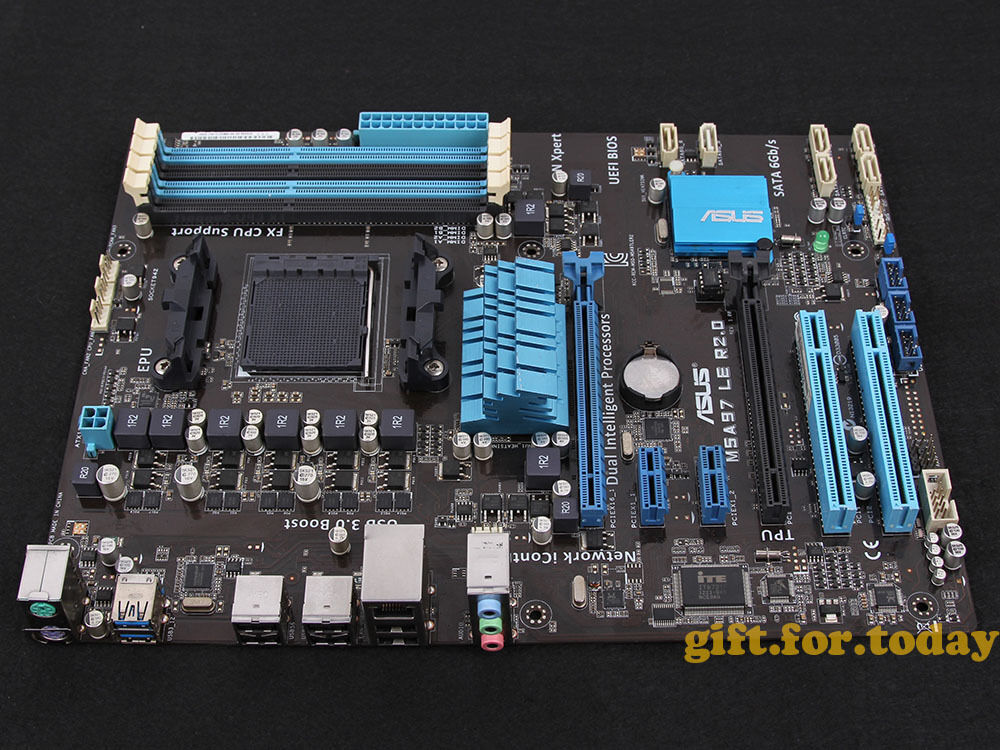

ASUS M5A97 LE R2.0 Motherboard Introduction

CPU

AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
Supports AM3+ 32 nm CPU
Supports CPU up to 8 cores
Supports CPU up to 140 W
AMD Cool 'n' Quiet™ Technology

Chipset

AMD 970/SB950

Memory

4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to ASUS official website for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
* Due to CPU spec., AMD 100 series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR3 1333MHz.

System Bus

Up to 4.8 GT/s HyperTransport™ 3.0

Multi-GPU Support

Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

1 x PCIe 2.0 x16 (blue)
1 x PCIe 2.0 x16 (x4 mode, black)
2 x PCIe 2.0 x1
2 x PCI

Storage

AMD SB950 controller :
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10

LAN

Realtek® 8111F, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC *1
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- ASUS Noise Filter
- Optical S/PDIF out header(s) at mid-board

USB Ports

ASMedia® USB 3.0 controller :
2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
AMD SB950 controller :
12 x USB 2.0/1.1 port(s) (6 at back panel, black, 6 at mid-board)

ROG Exclusive Features

Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Special Features

ASUS Dual Intelligent Processors - TPU & EPU :
ASUS TPU :
- Auto Tuning
- TurboV
ASUS EPU :
- EPU
ASUS Power Design :
- 4 +2 Phase Power Design
ASUS Exclusive Features :
- AI Suite II
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- Precision Tweaker 2
- ASUS O.C. Profile
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Slot

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
2 x USB 3.0
6 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports

3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
3 x Chassis Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)

BIOS

64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Form Factor

ATX Form Factor
12 inch x 9 inch ( 30.5 cm x 22.9 cm )

Note

*1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

ASUS Dual Intelligent Processors, Extreme USB 3.0Transfer Speed, and Windows 8 on AMD 970

· Dual Intelligent Processors - TPU +EPU

· USB 3.0 Boost - Faster USB 3.0Transmission with UASP

· Network iControl - Real-timeNetwork Bandwidth Control

· UEFI BIOS - Flexible & EasyBIOS Interface

· Auto Tuning - Auto System Level Up

· Quad-GPU CrossFireX Support!

· True USB 3.0 & SATA 6Gb/sSupport - Fully Unleash Performance

· Windows 8 Ready – Assured Compatibility
