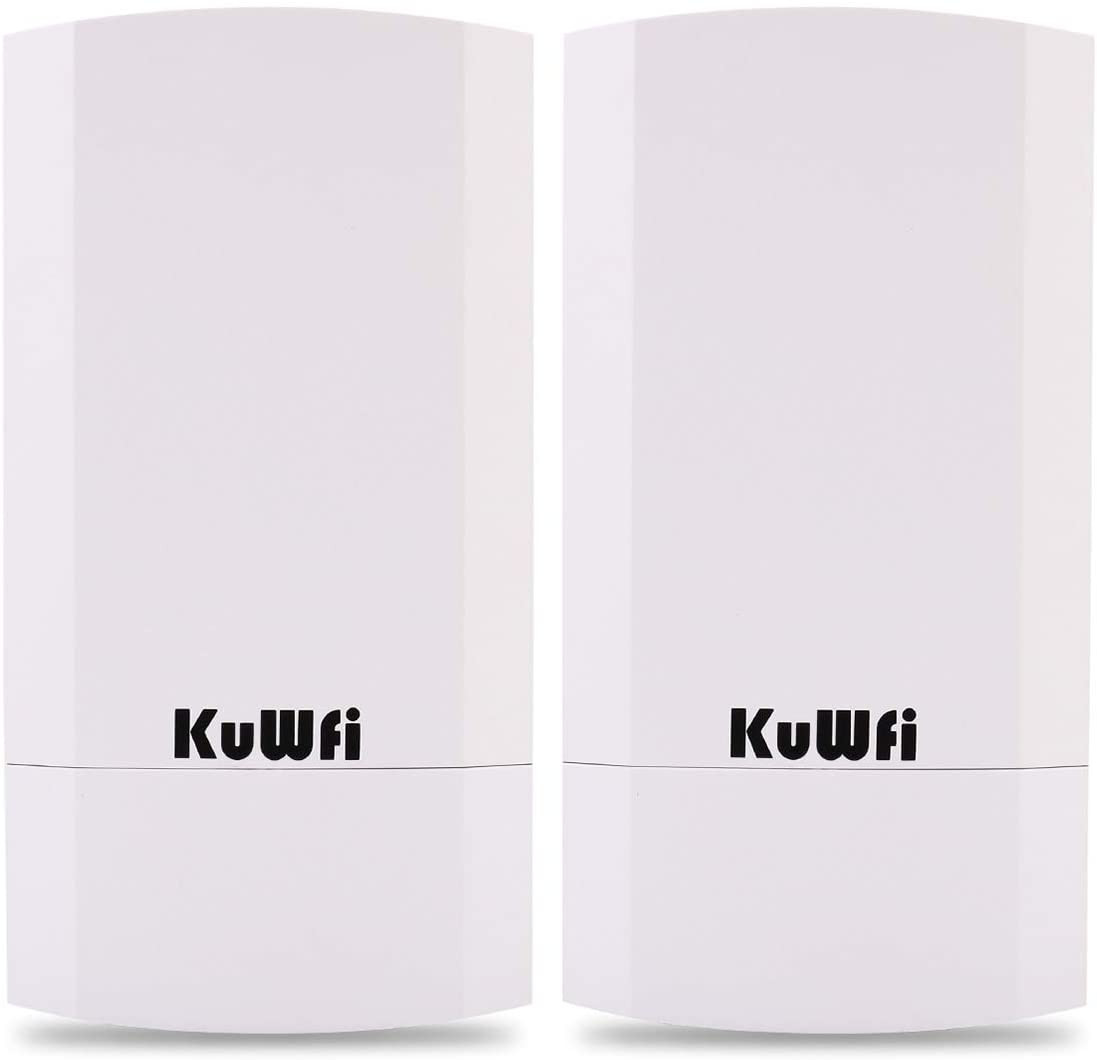

Outdoor Wireless WiFi Bridge Support Long Range Extender Transmitter PTP 300mbpsDescription

• 【What CPE70R is】KuWFi CPE70R is an 300Mbps Outdoor Wireless WiFi Bridge support 1KM Long Range WiFi Extender with LED display to configure the PT/PTMP connection, AP + Bridge operation mode, more st Support AP and bridge operation mode, simple to built the PTP/PTMP connections, meet with multiple Wi-Fi transmission scheme demands. Outdoor Wireless CPE Bridge Waterproof, dust proof, lighting protection. Operating Temperature: -30℃-55℃ Storage Temp: -40℃-70℃
• 【Multiple operation mode,suit for different network & environment】 Point to Point/Multi-Point Connection (1-4) for Elevator Monitor/surveillance networks: Connect an IP Surveillance Camera to CPE70R’s secondary port and utilize its long-range connectivity to send surveillance video back through the wireless network for extended surveillance coverage. Tethering a series of IP Camera to the CPE70R give you 'eyes on' places you might not otherwise see. Easy to set CPE with IP cameras & networks DVR
• 【Point to Point Connection for Wireless Coverage】 Multi-Mode wireless wifi bridge with ethernet port and LED display: Support Wireless AP, Repeater operation mode; Support SSID broadcasting, Multi SSID up to 4; Support DHCP server; WiFi coverage before 2 houses with 1KM distance
• 【Tips on product how to use 】Its LED Display can show operation mode/channel/signal strength, its H/C switch ctrl the Master/Slave units, no need to access into GUI, press reset 1s will automatic paired; avoid the complex setup program. It transmits via wireless WiFi, reducing the trouble of wiring c. If it is passing the wrong gateway and DNS information. You can try to put a manual IP address with Gateway address from the original modem along with your choice of DNS

• KuWFi CPE70R is an 2.4G outdoor Long Range wifi bridge CPE with LED display. it work in pairs for point to point connection,make more than 16PCS IP camera can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks
  2.4G 300Mbps Data Rate
  CPE70R features 802.11n Wi-Fi and MIMO technology, 2.4G 300Mbps wireless speed ensures high speed internet access and more end users access

  High Gain Antenna for More Range
  Build in 12dBi MIMO panel antenna(embedded), Tx power up to 28dBm. stronger signal strength, more wireless coverage

  Power over Ethernet - WAN Port support passive PoE
  CPE70R has integrated passivePower over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily avail, eliminating the mess of altering existing network infrastructure

  Multi-Mode-Updated version (without PPPOE Mode)
  - Support Wireless AP, Repeater operation mode
  - Support SSID broadcasting, Multi SSID up to 4
  - Support DHCP server

  Network Security
  - With function of build in firewall, IP filter, URL filter and MAC filter
  - Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment
  -Support 128bit WPA、WPA2、WPA-PSK、WPA2-PSK security
  Outdoor Performance Waterproof/dust proof/lighting protection; Operating Temperature: -30℃-55℃ Storage Temp: -40℃-70℃
  Main Feature
  - 1*10/100Mbps WAN Port, 1*10/100Mbps LAN Port
  - FLASH * DDR2: FLASH 8MB * DDR2 64MB
  - Size: 168mm*88mm*57.6mm

  What you get ?
  CPE70R- 2pcs
  POE Power Adapter (24V0.5A) - 2pcs
  Quick Start Guide - 1pcs
  Ethernet C (1meter) - 2pcs
  Plastic Hoop - 4pcs

  Product Description

  KuWFi CPE70R is an 2.4G 300Mbps outdoor CPE WiFi Bridge with PoE power.

  It work in pairs for point to point connection,make more than 16PCS IP camera can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks

  • 802.11n Wi-Fi and MIMO technology
  • FLASH * DDR2: FLASH 8MB * DDR2 64MB
  • With function of build in firewall, IP filter, URL filter and MAC filter
  • Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment
  • Support 128bit WPA、WPA2、WPA-PSK、WPA2-PSK security
  Work Mode
  • Support Wireless AP, Repeater operation mode
  • Support SSID broadcasting, Multi SSID up to 4
  • Support DHCP server
  High Gain Antenna
  • Build in 12dBi MIMO panel antenna(embedded)
  • Tx power up to 28dBm
  • Stronger signal strength
  • More wireless coverage
  Power over Ethernet
  • It has integrated passive Power over Ethernet (PoE)
  • For easy installation and lower cost
  • So it can be installed in areas where power outlets are not readily avail
  • Eliminating the mess of altering existing network infrastructure
  Buttons & Port
  • 1*10/100Mbps WAN Port, 1*10/100Mbps LAN Port
  • Reset button(If the units pairing failed, press and hold reset to restore)
  • F & C button: Select /Adjustment button
  • H/C button: Master-slave switch button(H=Master, C=Slave)
  LED Display
  • LED Display: Show unit's name(H/C)/channel/signal strength, No need to access into GUI, avoid the complex setup program
  • If P- is not displayed, you need to re-pair or contact the seller’s email
  • NOTE: If The KuWFi is passing the wrong gateway and DNS information.You can try to put a manual IP address with Gateway address from the original modem along with your choice of DNS and it should work
  Package List
  • CPE70R- 2pcs
  • POE Power Adapter (24V0.5A) - 2pcs
  • Quick Start Guide - 1pcs
  • Ethernet C (1 meter) - 2pcs
  • Plastic Hoop - 4pcs
