Adapter 2 x USB 3.0/2.0 Port support transfer speed up to 5Gbps ( 1 external + 1 internal )

* 1 x Power eSATA / USB 2.0 Combo Port ( External )

* Low Profile bracket to fit HTPC or slim PC case

* Compatible with pcie x1, x4,x8,x16

USB 3.0 :

* Support Windows 8 UASP

* No driver needed for Windows 8 ( do not install driver in Windows 8 )

* Fully compliant with PCI Express Base Specification Revision 2.0

* Single-lane (x1) PCI Express Throughput Rates Up to 4.8Gbps

* Compliant with Universal Serial Bus 3.0 Specification Revision 1.0

* Fully compatible with USB2.0 , USB 1.1

* Transfer Rate: 5Gbps 480Mbps, 12Mbps

* NEC uPD720202 Chipset

* Built-in SATA Power Connector

Power eSATA :

* This 2 ports can be connected as eSATA, PeSATA, or USB 2.0.

* Combine with our Power over ESATA cable ( not included in package ) , both 2.5"" and 3.5 HDD can be supported without power supply from other :

* Connect direct to SATA Hdd

* Data transfer up to 6Gbps ( SATA III, depends on your mother board SATA port specification), and 480Mbps (USB 2.0 )

* Supports WinXP, Win Vista and windows 7/8

Attention Please:

* The users need to connect the SATA Connector on mainborad to the SATA port on this card, as shown in below picture, then the eSATAp port will work:

* Only if the SATA port on the mainboard has SATAIII Signal, the external eSATAP port will support SATAIII device.

Package Contents :

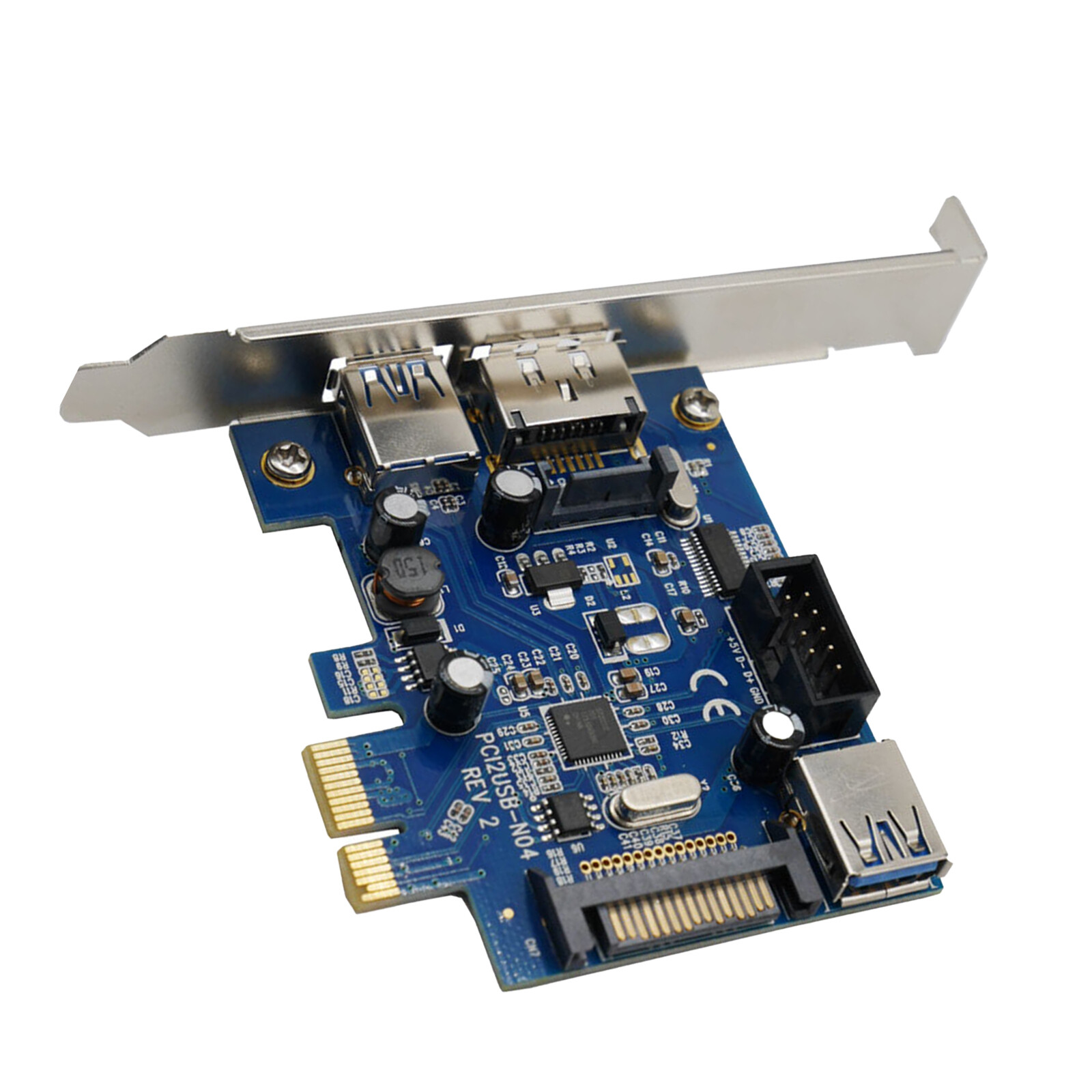

1 x PCIE to USB 3.0 + Power eSATA Card Adapter
