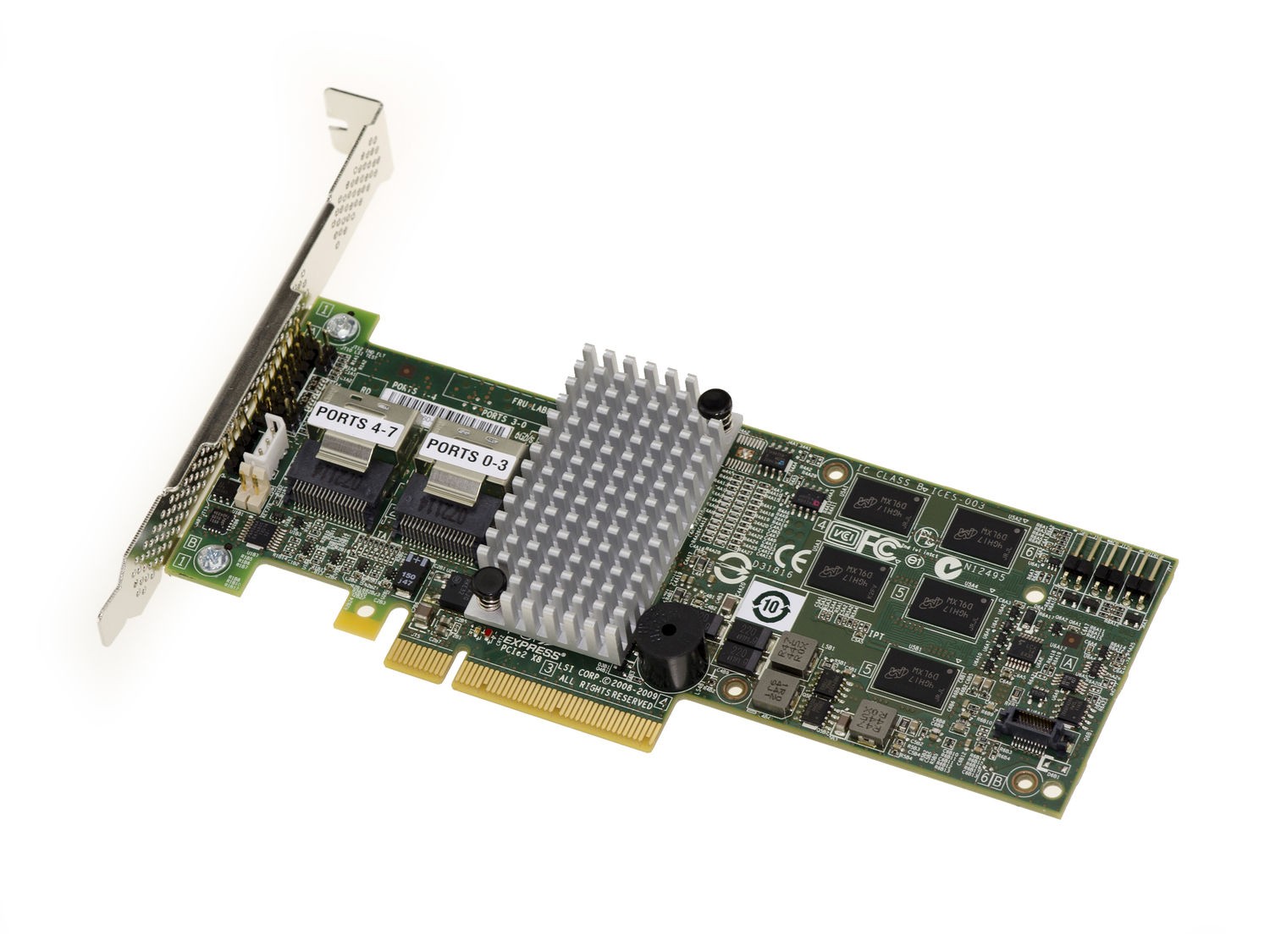

LSI card delivered in "OEM" version, i.e. delivered in a neutral box and with drivers to download from the Broadcom website.
Main functions:
8 internal 6Gb/s SATA+SAS ports, via Mini-SAS SFF-8087 (horizontal mounting),
LSI SAS 2108 6Gb/s RAID-on-Chip 800MHzPowerPC® processor,
512MB 800MHz DDRII cache memory,
Optional battery,
RAID 0, 1, 5 and 6 / RAID Spans 10, 50 and 60.
Features :
Eight internal 6 Gbps SATA+SAS ports,
Two internal mini-SAS connectors (SFF8087),
PCIe 2.0 x8,
LSI SAS 2108 RAID on Chip (ROC),
6GB/s transfer rate per port,
SAS Half Duplex bandwidth 600MB/s per lane,
512MB 800MHz DDRII cache memory,
Operating voltage 3.3V +/-9%,
Support up to 128 devices in non-RAID mode,
Optional battery LSIiBBU07
RAID:
RAID 0, 1, 5, and 6,
RAID spans 10, 50 and 60, Online Capacity Expansion (OCE), Online RAID Level Migration (RLM),
Auto resume,
Single controller Multipathing, Load Balancing,
Configurable bands up to 1MB,
Fast initialization,
SSD Guard compatible,
SMART compatible,
Support up to 64 logical drives.
COD support.
Hot Spare,
SES and SGPIO compatible.
Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3 FCC Class A, Class B UL1950 UL CSA C22.2 VCCI RRL for MIC BSMI
Microsoft® Windows® Vista/2008/Server 2003, Linux®, Solaris? (x86), FreeBSD ® , VMware and more.
Card delivered with Low and High Profile brackets.
