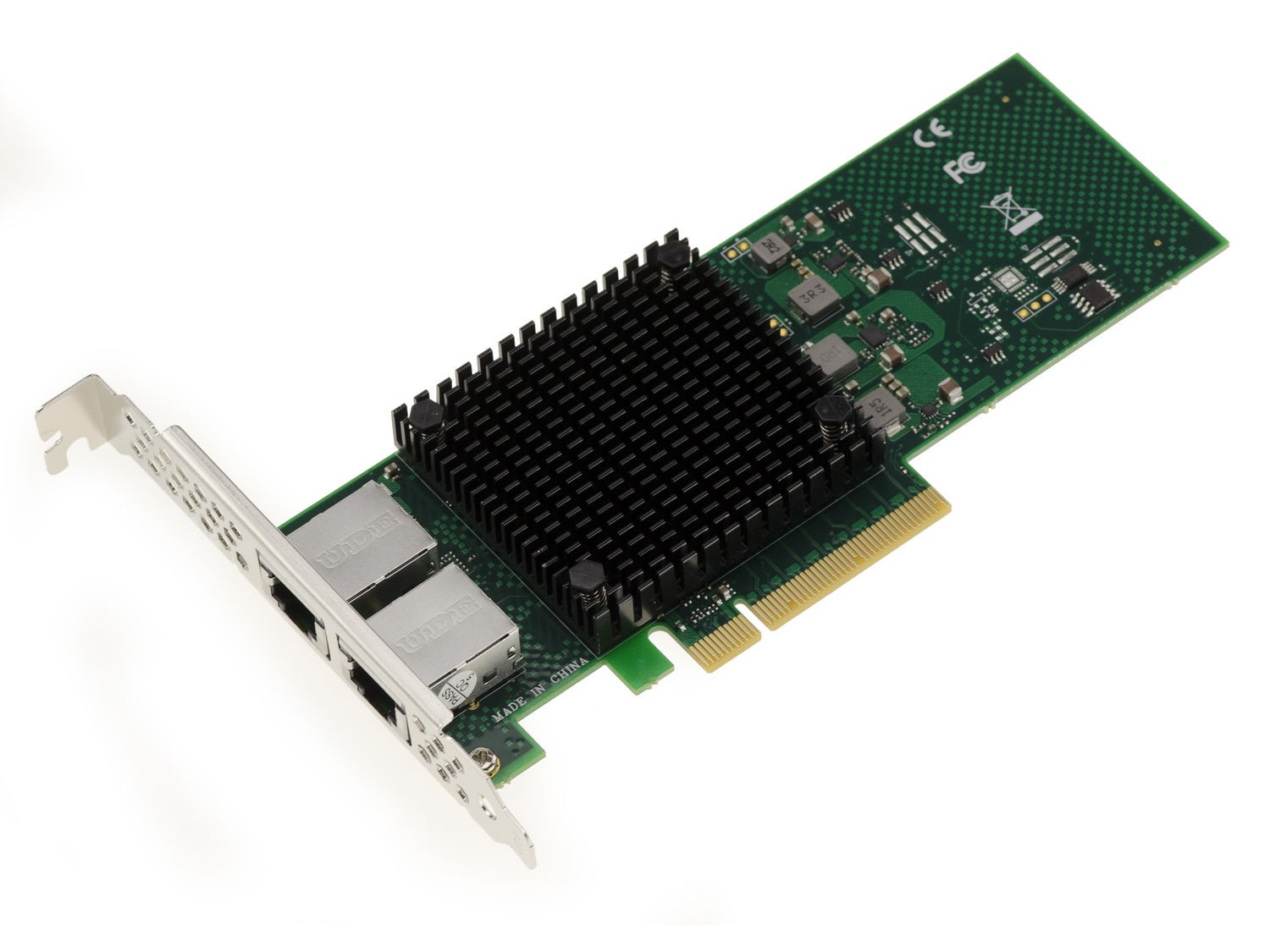

For DESKTOP PC or server on PCIe 8x port. Compatible with all 10 Gigabit networks. Industrial quality card, intended for intensive use.
Compatibility:
Windows Server 2019 /R2 / 2016/ R2: Windows 10/11: FreeBSD 9 / 10 and above,
Linux Stable Kernel version 2.6.32/3.x/4.x and above,
VMware ESX/ESXi 5.x/6.x and above.
Features :
Intel EZX710AT2 CHIPSET.
PCIE 3.0 8x (8x, 16x port compatible).
2x 10G RJ45 type connectors.
Support speeds: 10G, 5G, 2.5G, 1G and 100Mbps.
For standard RJ45 copper cabling.
Supported protocols: IEEE 802.1Q* VLANs, IEEE 802.3 2005* flow control support, 10 GbE and 1 GbE Ethernet/ 802.3ap (KX/KX4) compatible, 10 GbE 802.3ap (KR) compatible, 1000BASE-BX compatible.
Network Virtualization: VXLAN, NVGRE, Geneva, Network Service Headers (NSH), VEPA, VEB.
Support Intel flow director, MSI-X, FPP (64 VFs per port).
Compatible Data Plane Development Kit (DPDK).
Support Network Functions Virtualization (NFV).
Supported distances: 10GBASE-T 55m in CAT 6 / 100m in CAT 6a - 1000BASE-T/100BASE-T 100m in CAT5e, CAT 6, or CAT 6a.
Jumbo Frame packages up to 15.5 KB.
Activity diodes (variable color depending on flow).
Powered by PCI Express port +12V plus or minus 8% / +3.3V plus or minus 9%.
Supplied with two brackets (low profile and high profile).
