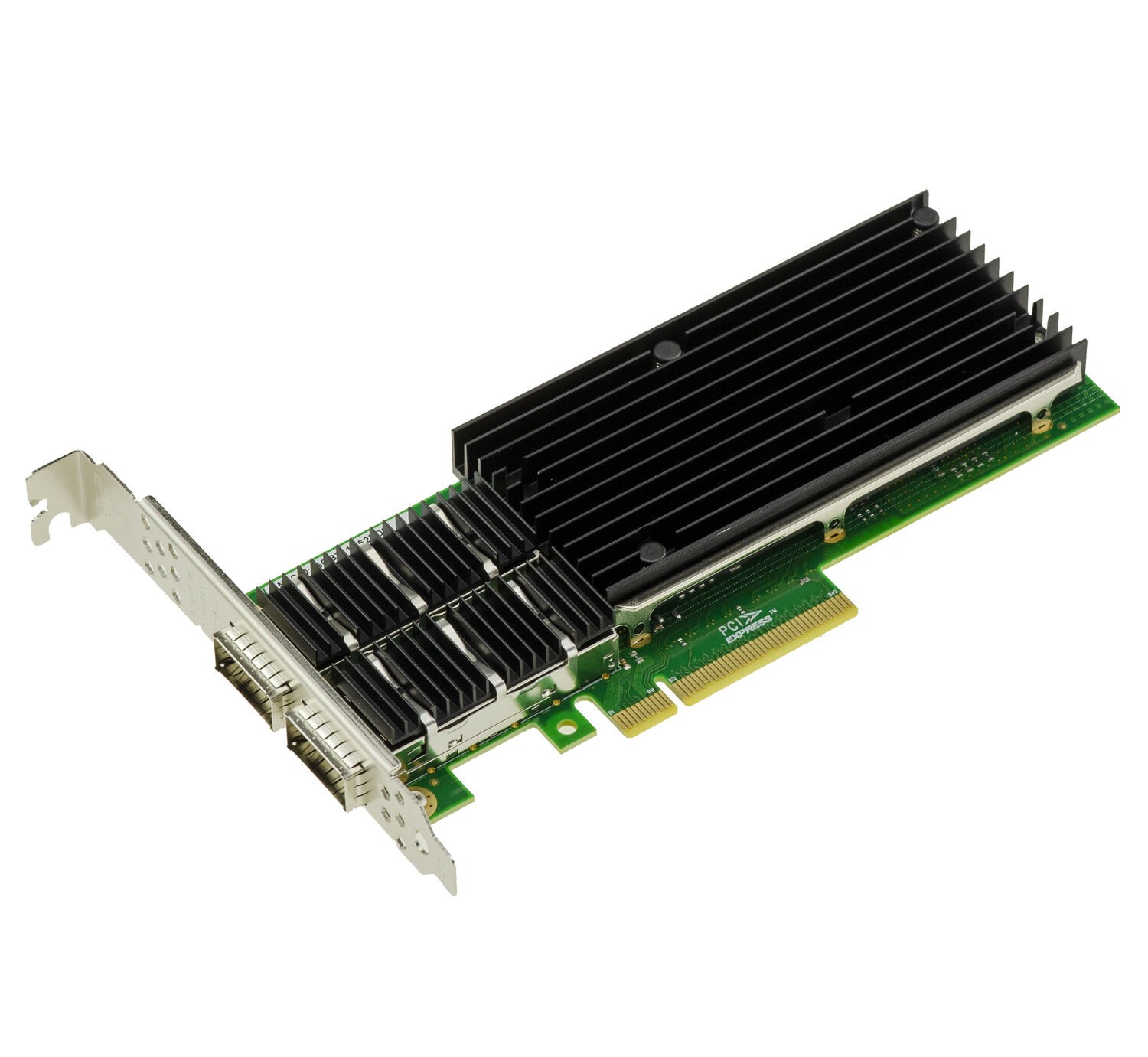

Dual-port 40Gb/s network card based on the Intel XL710 controller. Thanks to hardware acceleration, it reduces CPU load by supporting functions such as TCP/UDP/IP checksums and TCP segmentation. PCIe 3.0 x8 compatible and PCIe 2.x backward compatible, it also benefits from Intel PROSet tools for simplified installation and 7/8/8.1/10/11, Windows Server 2008 up to 2025 and above, Linux Stable Kernel version 3.x/4.x and above, Linux CentOS/RHEL 6.5 / 7.x and above.
Ubuntu 14.x/15.x/16.x and above, VMware ESX/ESXi 4.x/5.x/6.x and above.
For PCIe Gen 2.0 port or higher, x8 or x16.
Features :
PCI Express v3.0 (8.0GT/s) x8 port.
Intel XL710 chipset.
Transfer rate per 40 Gigabit port.
40GBASE-SR4/LR4, 40GbE QSFP+ AOC/DAC interfaces.
Supported standards:
IEEE 802.3ba 40 Gigabit Ethernet
IEEE 802.3x Full Duplex and flow control
IEEE 802.3BD
IEEE 802.1AS
IEEE 802.1Q VLAN
IEEE 802.3AD
IEEE 802.3az – Energy Efficient Ethernet (EEE)
IEEE 802.
Jumbo frame support up to 9.5Kb.
Network virtualization VXLAN, NVGRE, Geneva, Network Service Headers (NSH), VEPA,
VEB
Supported functions: PXE, iSCSI, FCoE, DPDK, VMDq, RSS, PCI-SIG*SR-IOV
LED indicators (40 Gbps): Yellow (link) and Blue (activity)CHIPSET Mellanox Connect X-3.
Consumption 5.6W.
Operating temperature 0°C to 55°C.
Supplied with two brackets (low profile and high profile).
Dimensions: 165*120*21
Weight 175g
