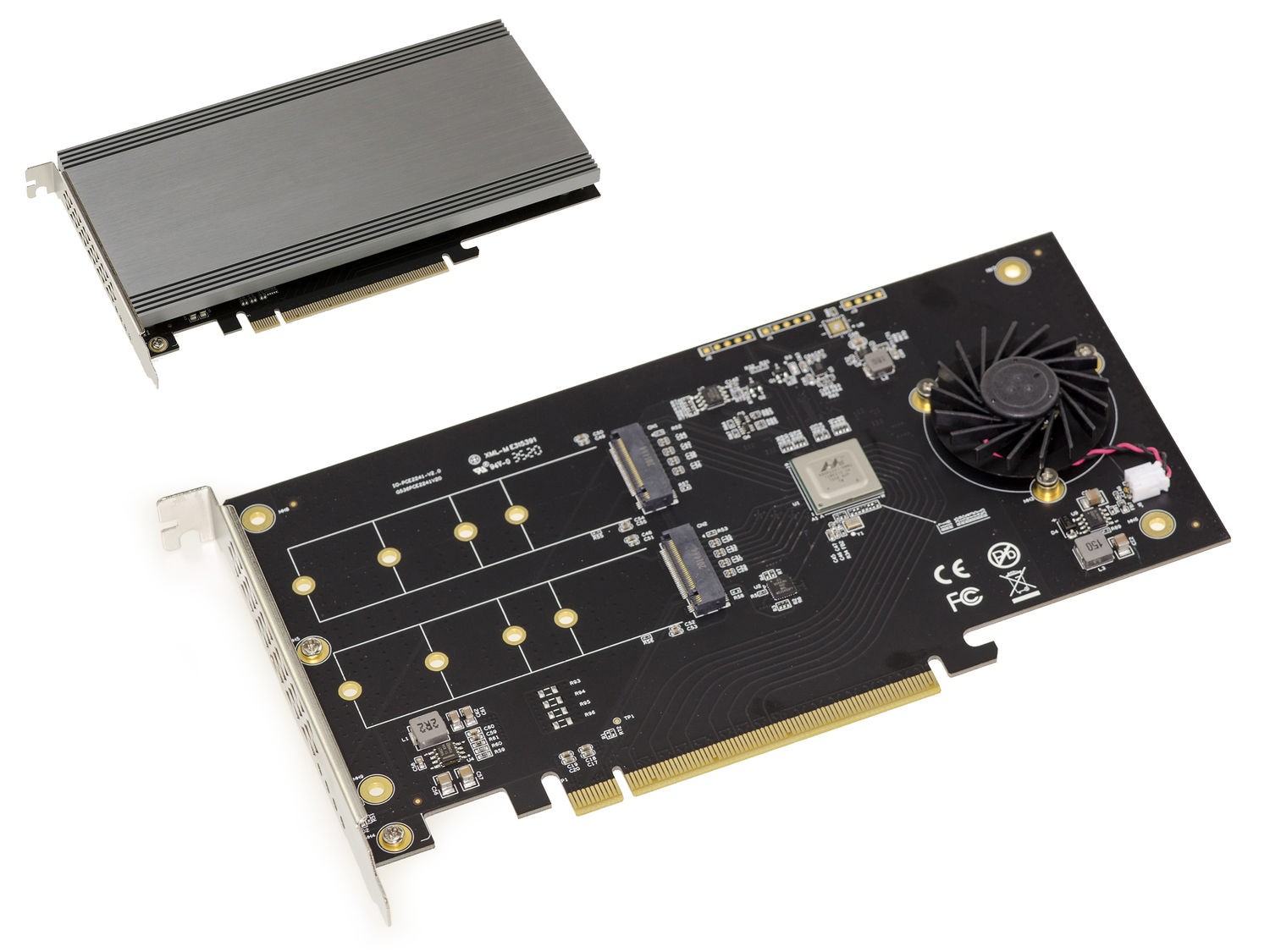

This card will allow you to control two M.2 PCIe M Key (or B+M Key) SSDs independently or in a RAID cluster. It is "SWITCH" type and not bifurcation, so it will work on all motherboards whether or not they support bifurcation mode, and will offer a maximum bandwidth of 16x and not split into 2 times 4x.
For any M.2 "M Key" PCIe (NVMe or AHCI) type SSD only, does not support SATA type M2 SSDs.
Specifications:
For PCIe 3.0 or higher 16x port.
PCIe 16x 3.1 card with 2 M.2 4x ports.
Integrated TRIM & SMART control with TBW tracking.
Support PCIe 3.1,3.0, PCIe 2.0 motherboards.
Complies with PCI Express M.2 1.0 specification.
Supports data transfers up to 2.5Gb/s,5Gb/s,8Gb/s.
Compatible with formats 2230, 2242, 2260, 2280.
MARVELL 88NR2241 RAID CHIPSET.
Support hardware RAID 0 AND 1.
Easy installation and no drivers required (UEFI and NVMe compatible Bios required).
SWITCH type card, does not require switching to bifurcation mode.
Mac, Windows and Linux compatible (if NVMe supported by the OS).
This card will allow you to control two M.2 PCIe M Key (or B+M Key) SSDs independently or in a RAID cluster. It is "SWITCH" type and not bifurcation, so it will work on all motherboards whether or not they support bifurcation mode, and will offer a maximum bandwidth of 16x and not split into 2 times 4x. For any M.2 "M Key" PCIe (NVMe or AHCI) type SSD only, does not support SATA type M2 SSDs. Integrated TRIM & SMART control with TBW tracking. Complies with PCI Express M.2 1.0 specification. Supports data transfers up to 2.5Gb/s,5Gb/s,8Gb/s. Compatible with formats 2230, 2242, 2260, 2280. Easy installation and no drivers required (UEFI and NVMe compatible Bios required). SWITCH type card, does not require switching to bifurcation mode. Mac, Windows and Linux compatible (if NVMe sup
