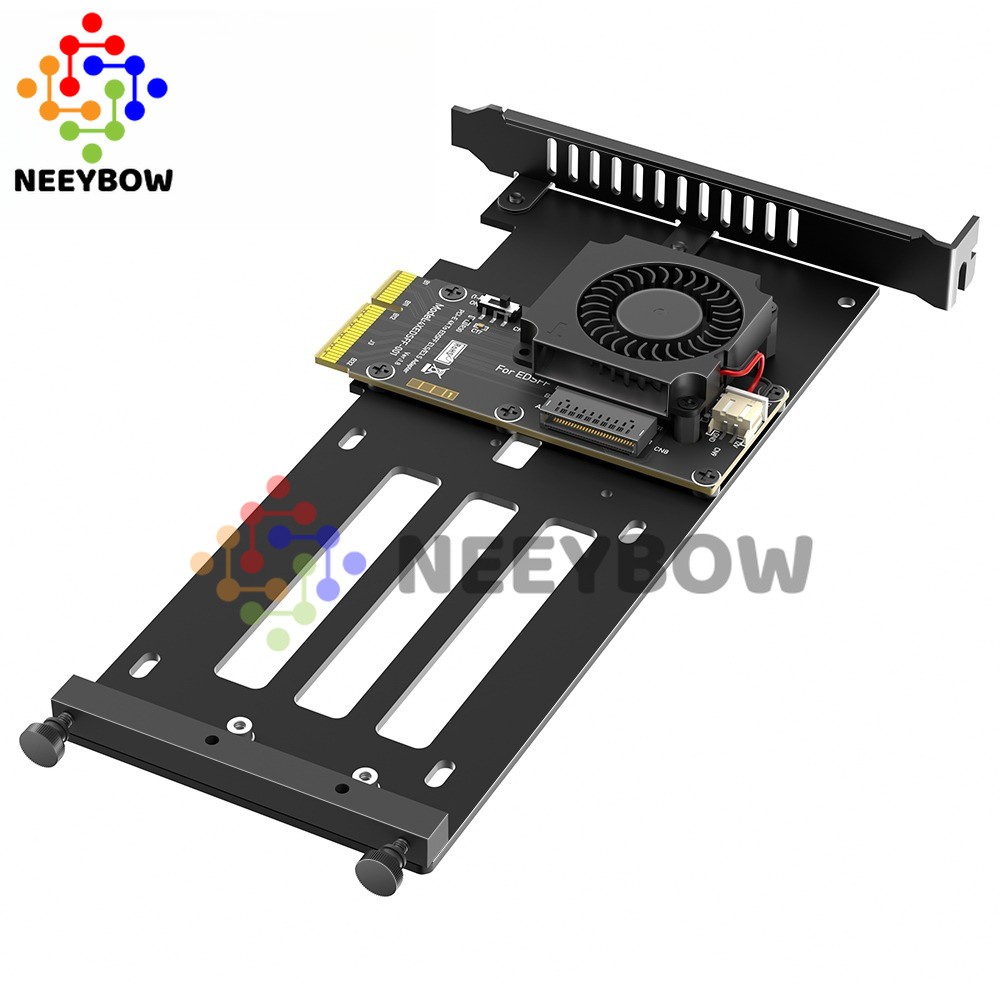

P CIe 5.0 x4 to E1.S/E3.S (EDSFF Gen-Z) SSD Adapter Card with Cooling Fan for Desktop/Server
Product features:
1. PCIe 5.0 Gen5 High-Speed Performance: Built for PCIe 5.0 x4 interface with full 32GT/s signaling, delivering up to 16Gbps bandwidth (4 lanes × 8GT/s). Backward-compatible with PCIe 4.0/3.0 slots at reduced speeds, ideal for enterprise-grade E1.S/E3.S SSDs.
2. Universal EDSFF Compatibility: Features an EDSFF Gen-Z slot supporting E1.S SSDs in all standard thicknesses: 5.9mm, 8.01mm, 9.5mm, 15mm, and 25mm. The adjustable bracket and hand-tightened screws ensure secure installation for both E1.S and E3.S drives.
3. Active Turbo Cooling System: Equipped with a 12V/0.05A turbo fan and an on/off switch to prevent overheating during intensive workloads. The cooling design maintains optimal operating temperatures for high-performance EDSFF SSDs under heavy read/write operations.
4. Sturdy Metal Mounting Bracket: Includes a durable full-height metal bracket and an integrated SSD replacement bracket, providing a secure, cable-free setup in standard ATX/mATX/ITX cases. No loose cables or complicated wiring required.
5. Plug-and-Play, Driver-Free Operation: No software or drivers needed. Works seamlessly with Windows 10/11, Windows Server, Linux, Ubuntu, CentOS, VMware ESXi, and other mainstream operating systems, supporting both Intel and AMD platforms.
6. Enhanced Stability & Signal Integrity: High-quality FR4 high frequency PCB with gold-plated contacts and impedance-controlled traces minimizes signal loss and crosstalk. Built-in voltage regulation ensures consistent power delivery to your EDSFF SSD.
Package contents:
1* PCIe 5.0 x4 to EDSFF SSD Adapter
6* M3 Sliver Screw
1* 6#-32 Screw
2* Standoff
