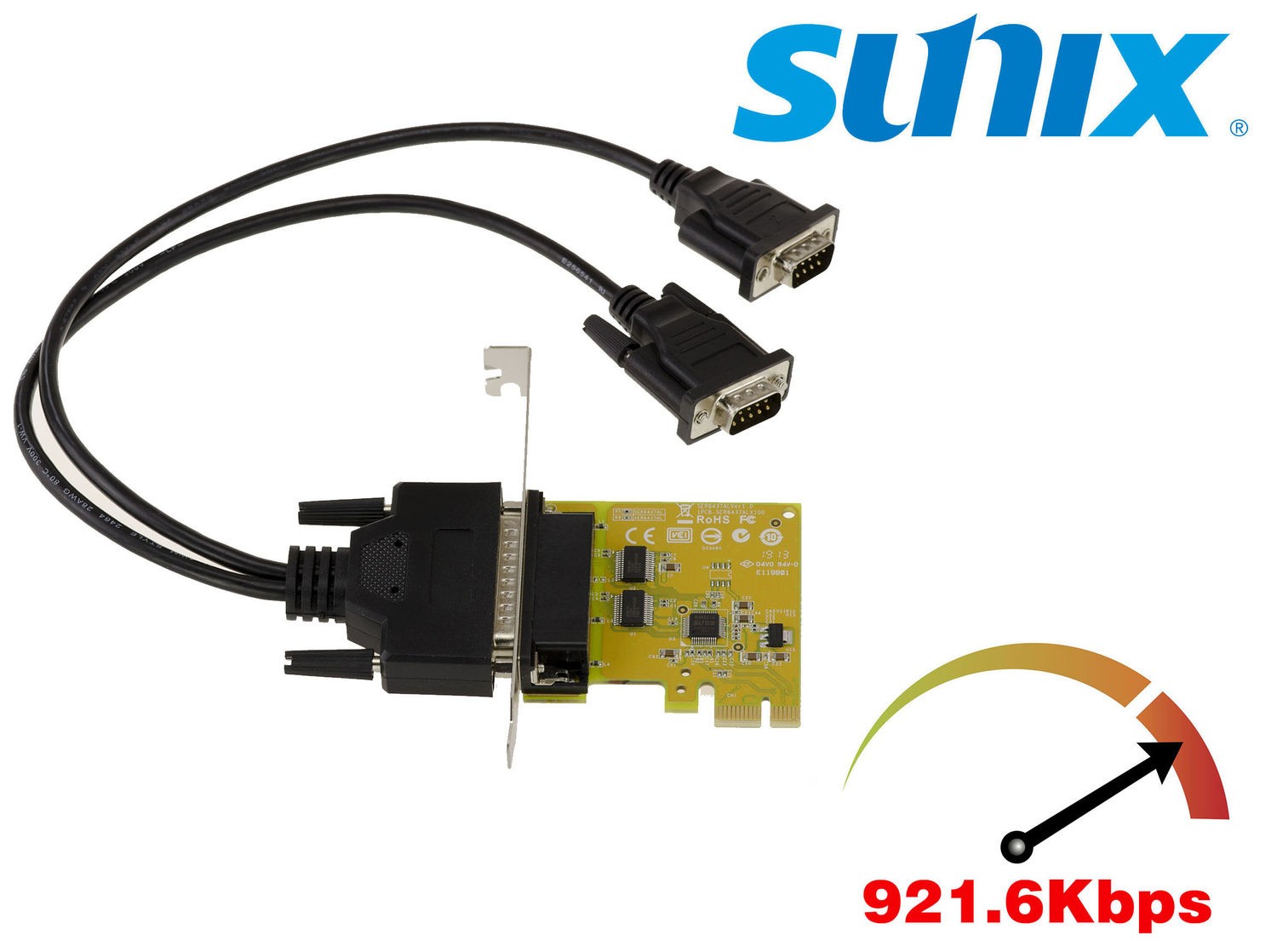

PCIe Card 2 Ports COM RS232 DB9 HIGH SPEED LOW HIGH PROFILE SUNIX SER6437HL
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
PCIe Card 2 Ports COM RS232 DB9 HIGH SPEED LOW HIGH PROFILE SUNIX SER6437HL
Price: FR $48.76
Features :
Manufactured by SUNIX (Reference SER6437HL).
SUNIX SUN2212 CHIPSET.
PCIe 2.0, 1x.
IRQ and IO assigned by the system.
FIFO 128 byte Hard'are.
DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI signals.
Transfer rate of 50bps ~ 921.6Kbps.
Stop Bit 1, 1.5, 2.
Parity even, odd, none, mark, space.
Flow Control None, Xon/Xoff, RTS/CTS.
Protections: ±15KV ESD (HBM) / ±15KV IEC1000-4-2 Air Gap Discharge / ±8KV IEC1000-4-2 Contact Discharge.
DB25 connector on bracket, supplied with DB25 cable to 2 male DB9 connectors.
Drivers for: XP/Vista/7/8.x/10(X86/X64) - Server 2003/2008/2012/2016 (x64) - Embedded XP Embedded/POSReady 2009/POSReady/Embedded System 2009 - Linux 2.x / 3.x / 4.x - DOS - FreeBSD 5.3~5.5/6.0~6.4 - QNX 6.3.2/6.4.0.
Standards: CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B FCC Part 15 Class B, BSMI: CNS13438, RoHS.
Environment: 0 to 60°C (operation), 5 to 95% RH, -20 to 85°C (storage).
Card dimensions 65 x 88 mm.
With High and Low profile by SUNIX (Reference SER6437HL). DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI signals. Transfer rate of 50bps ~ 921.6Kbps. Parity even, odd, none, mark, space. Flow Control None, Xon/Xoff, RTS/CTS. Protections: ±15KV ESD (HBM) / ±15KV IEC1000-4-2 Air Gap Discharge / ±8KV IEC1000-4-2 Contact Discharge. DB25 connector on bracket, supplied with DB25 cable to 2 male DB9 connectors. Drivers for: XP/Vista/7/8.x/10(X86/X64) - Server 2003/2008/2012/2016 (x64) - Embedded XP Embedded/POSReady 2009/POSReady/Embedded System 2009 - Linux 2.x / 3.x / 4.x - DOS - FreeBSD 5.3~5.5/6.0~6.4 - QNX 6.3.2/6.4.0. Standards: CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B FCC Part 15 Class B, BSMI: CNS13438, RoHS. Environment: 0 to 60°C (operation), 5 to 95% RH, -20 to 85°C (storage) Recommended products Provided by PCIe Card 2 Ports COM RS232 DB9. POS 5V 12V. LOW HIGH PROFILE SUNIX SER6437S-B View product PCIE Card RS232 2 COM Ports DB9 - Low High Profile - ASIX 99100 View product PCIe RS232 Card PCI Express - Low Profile - 1+1 COM Ports DB9 View product PCIE Card RS232 COM DB9 1 Port - ASIX AX99100 - HIGH + LOW Profile View product PCIE RS232 Powered Card - 2 COM PORTS DB9 View product PCIe Card Series RS232 2 Ports COM UART DB9 - OXFORD OXPCIe952 Chipset View product PCIe RS232 Card - 4 COM Ports DB9 On Octopus View product SUNIX Industrial Range - PCIe Card 4 Ports COM RS232 + 1 Port LPT - MIO5499A View product
