Card used as an original part in certain DELL servers (Compatible for DELL PX2810403-26). Suitable for any PC or Windows 8/10/11 and Windows Server Server, XP Professional x64, Windows Vista Red Hat Linux Novell SLES, NetWare VMware ESX/ESXi Oracle Solaris, Linux Citrix XenServer.
Features :
Single port, 8/4/2 Gbit/s automatic negotiation,
IOPS 200,000 source/target I/O per second per port,
Service category 2 and 3,
Topology FC-AL, FC-AL2, point-to-point, switched matrix,
FCP-3-SCSI & FC-TAPE (FCP-2) protocols.
Multimode optics
Throughput OM1 OM2 OM3: 2 Gbit/s 150 300 500 / 4 Gbit/s 70 150 380 / 8 Gbit/s 21 50 150
PCI Express Core Specification rev. 2.0
Electromechanical Specifications for PCI Express Rev. Cards 2.0
PCI Bus Power Management Interface Specification Rev. 1.2
PCI Immediate Replacement Specifications Rev. 1.0
PCIe x8 physical connector
StarPower Training
?Maximum x4 channels for 2nd generation flow
?Maximum x8 channels for 1st generation flow
Connectivity / QLE2560 Port: Single-port 8 Gbps Fiber Channel
Shipped in an individually wrapped box with backing
standard size, a low profile replacement stand and a Quick Start Guide
Shipped with SR optical transmitters installed
HBA specifications
Ventilation no ventilation required
Supplied with installation CD and two brackets (low profile and high profile).

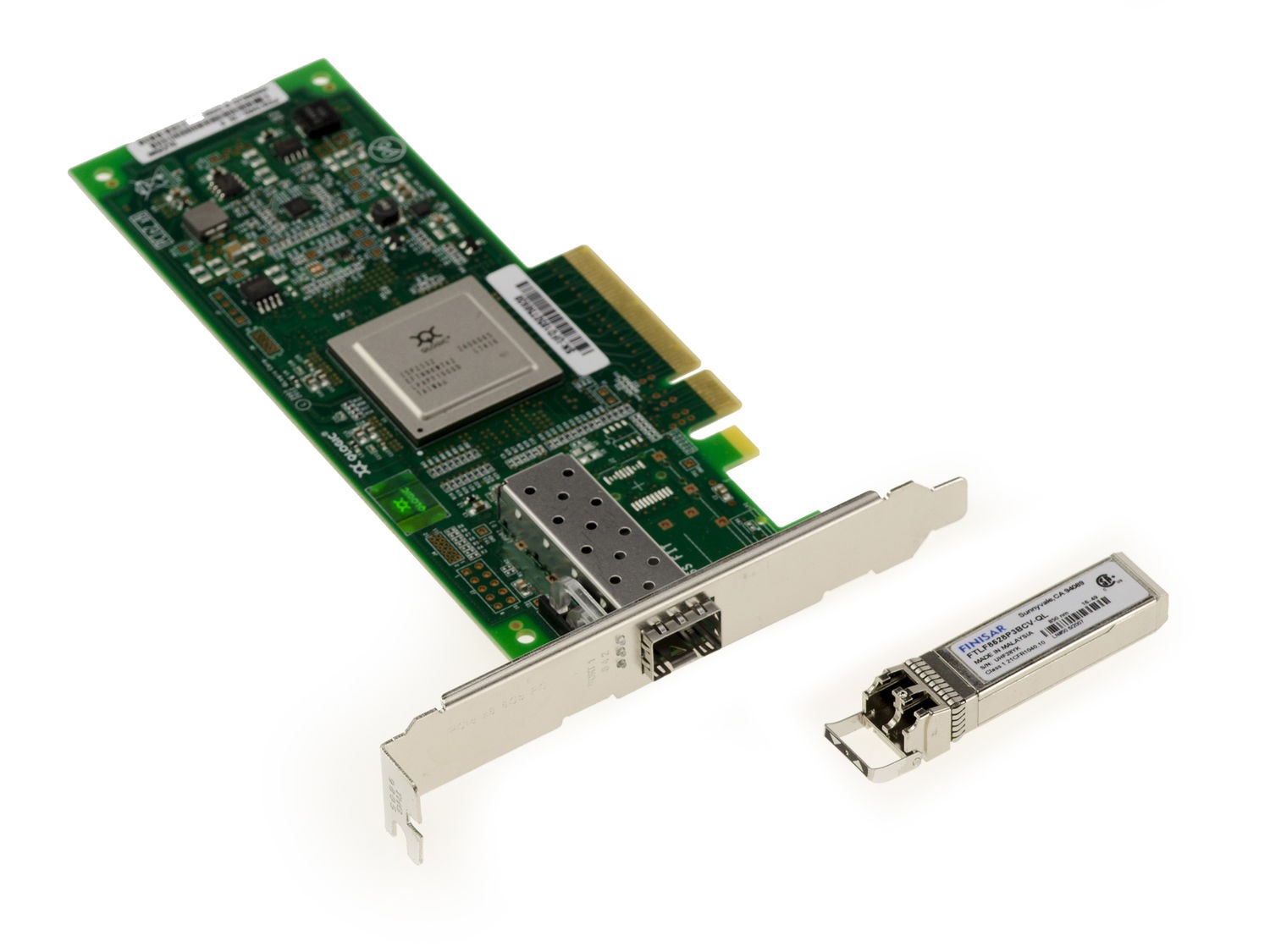

With LC MMF SFP+ 850nm Module supplied
