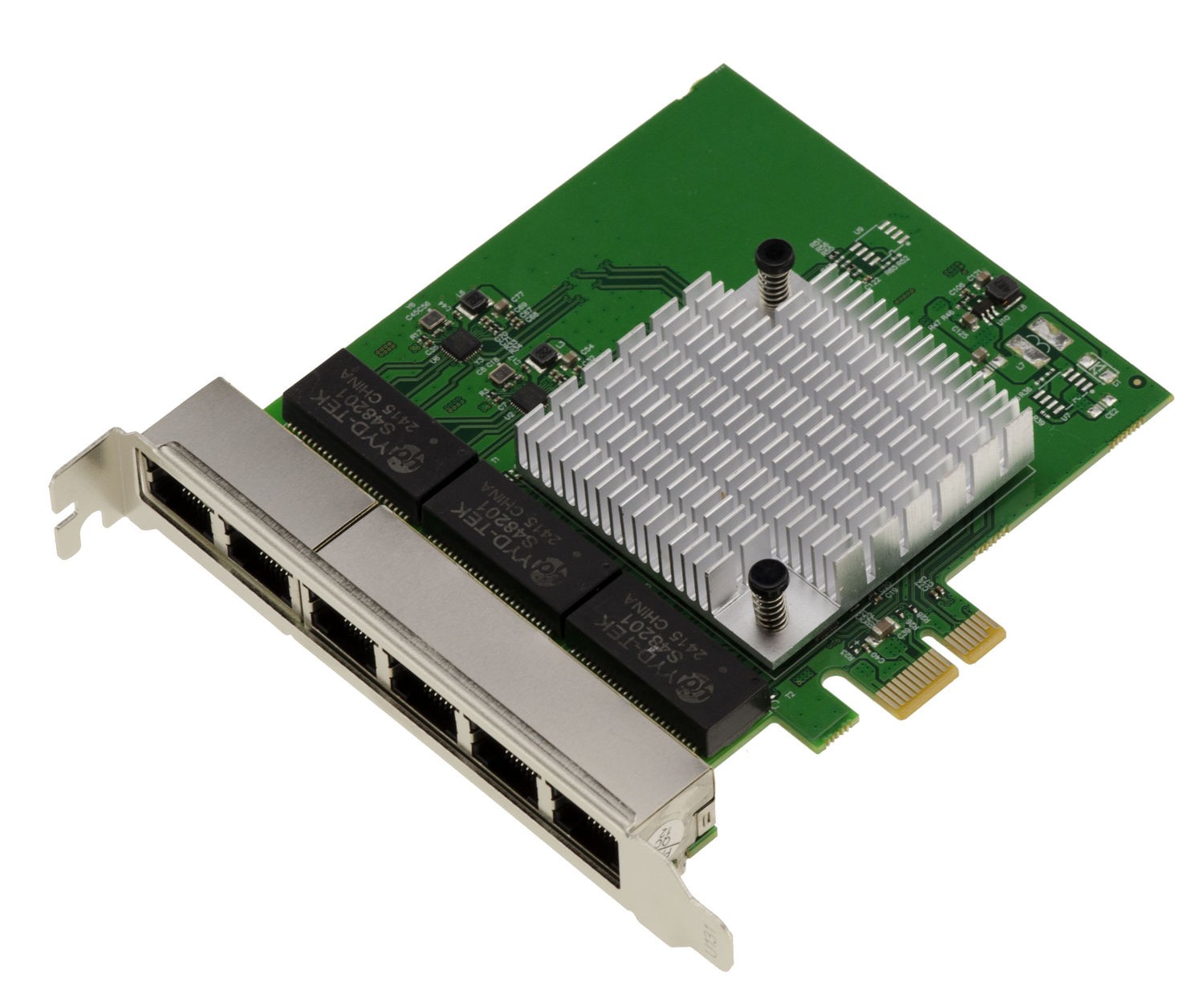

For DESKTOP PC on PCIe x1 port, allows you to add six Gigabit Ethernet network ports.
Compatibility:
Windows XP, Vista, 7, 8.x, 10, 11 (32/64 bit). Windows Server 2003, 2008, 2012, 2022 (32/64 bit). Linux, MAC OS and DOS
Features :
Card equipped with 6 REALTEK RTL8111H chips (one per port).
For PCI EXPRESS x1 port 2.0 and above (3.0 and above recommended) compatible x1, x4, x8 and x16.
Built-in 10/100/1000M transceiver, support Giga Lite (500M) mode.
Auto-negotiation with next page capability.
Pair swap/polarity/skew support.
Automatic detection and correction of crossings.
ECC (Error Correction Code), CRC (Cyclic Redundancy Check) compatible.
Support for on-ship buffer.
PCI MSI (Message Signaled Interrupt) and MSI-X support.
Fully compliant with IEEE802.3, 802.3u and 802.3ab standards.
Support IEEE 802.1P layer 2 Priority Encoding, 802.1Q VLAN tagging, IEEE 802.3az-2010(EEE), Full Duplex flow control (IEEE.802.3x).
Support for jumbo frames up to 9K bytes.
Quad core compatible Receive-Side Scaling (RSS) and Protocol Offload'aRP&NS).
Supports the ECMA-393 ProxZzzy standard.
High profile only.
