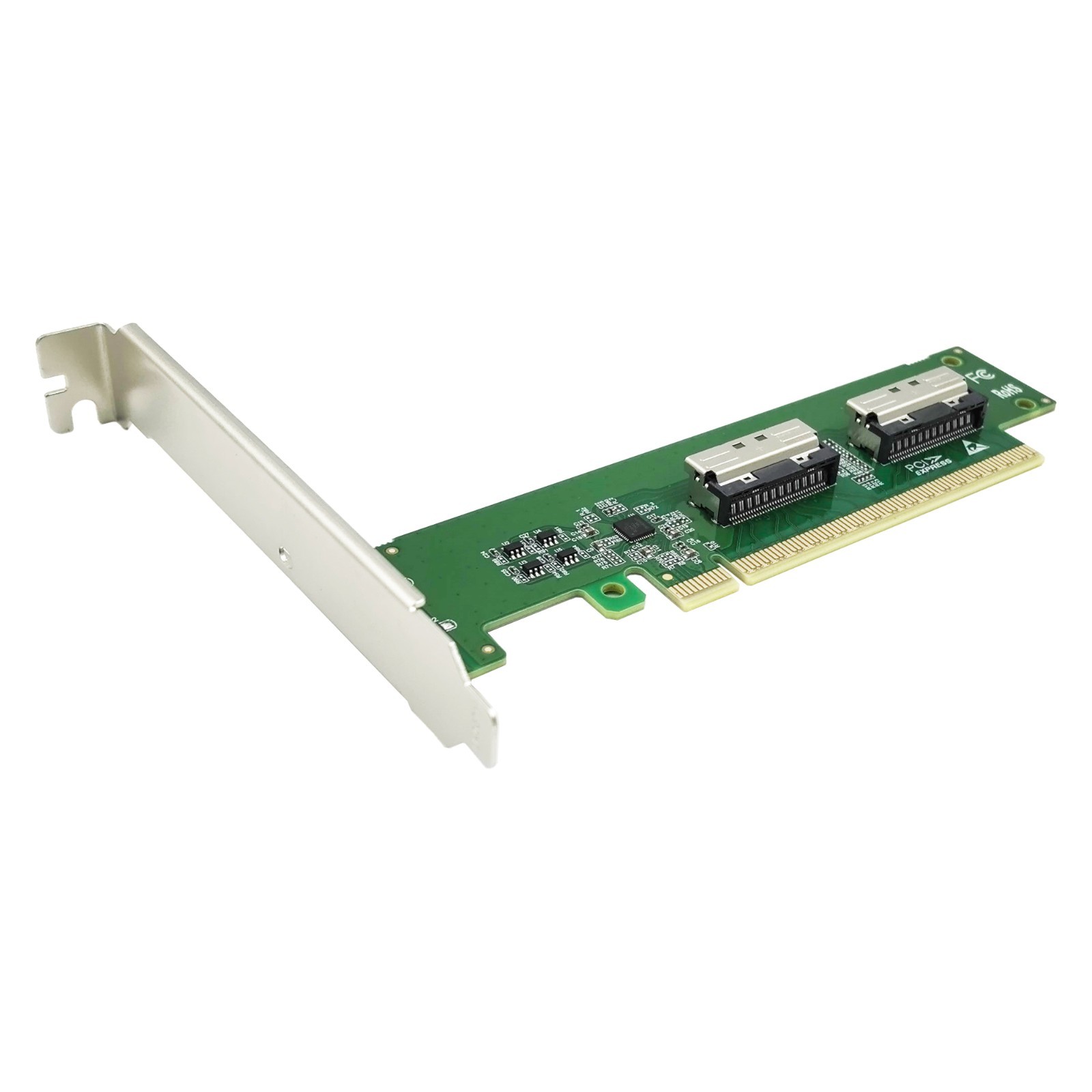

PCIe5.0 x16 to Two MCIO 8i Adapter XIC PE5160-4IL V2 shinreal

Price: CN $56.00

ProductDescription

XIC PE5160-4IL V2 is a high performance, low dielectric loss factor interfaceconversion card. It connects NVMe SSD or PCIe connectors viaMCIOconnector. The bandwidth of the card is the bandwidth that the PCIe slot of the motherboard can support.

The Motherboard with CPU and BIOS needs to support bifurcation to ensure PCIe x16 link width to bifurcate two x8 link width or four x4 link width for NVMe SSD, Otherwise this card can only support PCIe x16 link width.

Features

Support up to 4 PCIe devices or NVMe SSDs

Compatible with PCIe Gen5, Gen4, Gen3

Directly connected to U.2 NVMe SSD by MCIO to SFF-8639 cable

Support bifurcated in quad x4 data link width configuration(CPU and BIOS both support)

Support bifurcated in two x8 data link width configuration (CPU and BIOS both support)

Build in MCIO 8i connector 2 sets, pin-out defined by SFF-9402

PCIe lane reversal

Operating system support

The adapter does not require a driver for operation orcommunication to attached NVMe drives. The drives are presented natively to the host and use the native NVMedrivers.

Parameters

HARDWARE

Model

XIC PE5160-4IL V2

Number of Device

4 internal

Bus Type

PCI Express

Interface

MCIO 8I

CONNECTOR(S)

Device Connector
