PEX88048 PCIe 4.0 x16 to Four SlimSAS SFF-8654 8i Switch Adapter support 8 ports For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

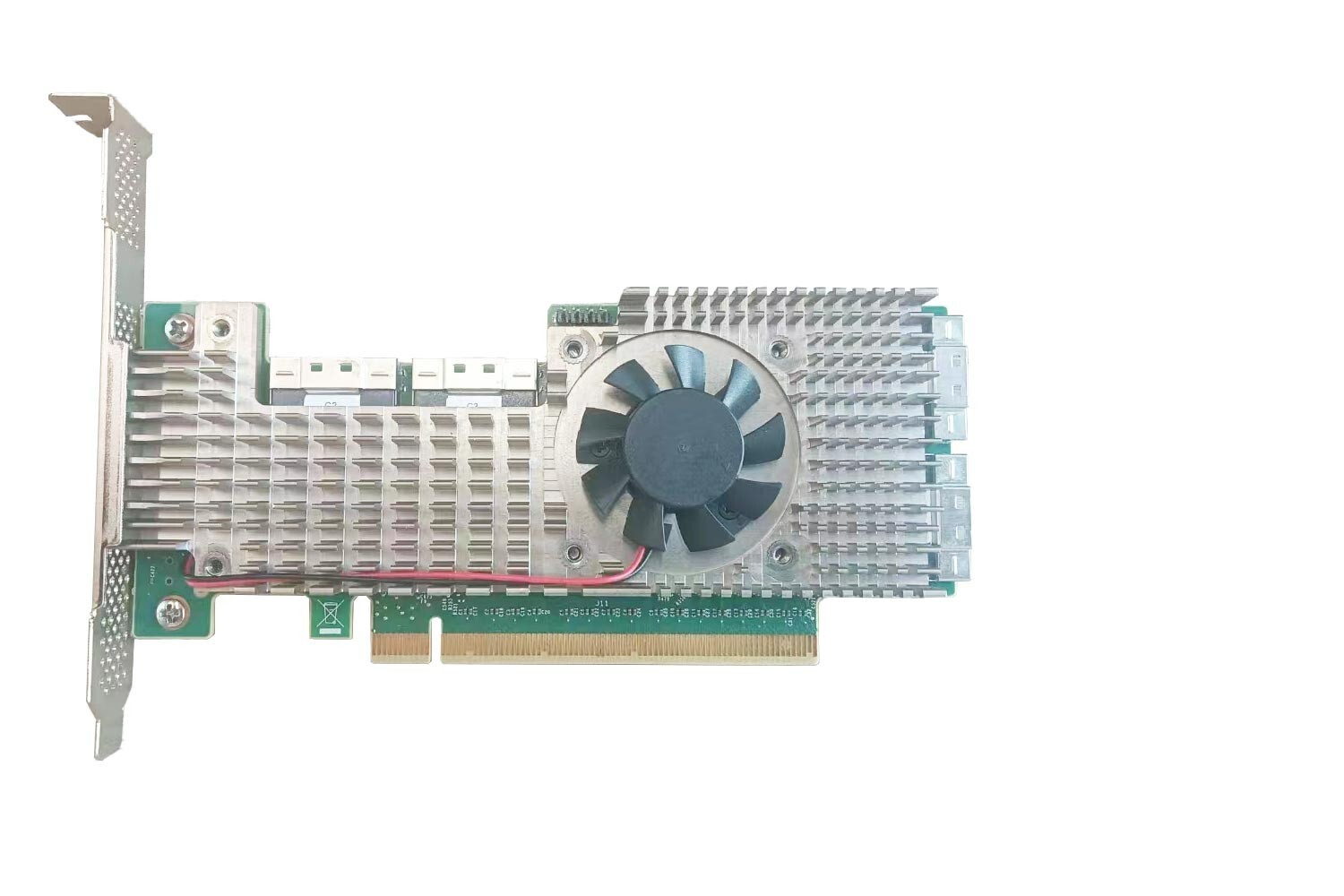

PEX88048 PCIe 4.0 x16 to Four SlimSAS SFF-8654 8i Switch Adapter support 8 ports

Price: CN $680.00

Product Description

SR8848 is a PCIe 4.0 x16 to 4 port developed based on Broadcom PEX88048 with built-in 8654 8I NVMe switch adapters. The 9F48 has four built-in 8654 8I Interface, which can be connected to SSD hard drives according to different usage scenarios, and supports up to 8x4 SSD connection; It supports PCIe NVMe interface and provides multi-host PCIe conversion. The card does not require the motherboard to support splitting to scale multiple PCIe devices, and it also supports hot swapping well, providing full line speed on all ports for performance-demanding applications such as servers and switching fabrics; With full load, a single port can achieve data transfer rates of up to 6.9GB.

It is suitable for situations where multiple NVMe interfaces need to be extended, and its support for surprise hot plug in most systems makes it very suitable for SSD testing

Features

lBased on Broadcom PEX88048Switch Controller

l4 x SlimSAS 8i internal connectors, which can be connected to SSD hard drives according to different usage scenarios

lCompliant with PCIe 4.0 basic specification, PCIe 3.0, 2.0, 1.0

lGood support for hot plug.

lSupport bifurcationand expansion, no need for motherboard support bifurcationto support 8 PCIe 4.0 x4 NVMe devices.

Supported operating systems

ŸWindows 10 /11

ŸWindows Server 2019 /2022

ŸRHEL/Centos7.6 /7.9 /8.2 /8.3

ŸDeepin 15.11 /20 /20.6 /20.9

ŸUbuntu 18.04.5 /20.04.1 /22.04.3
