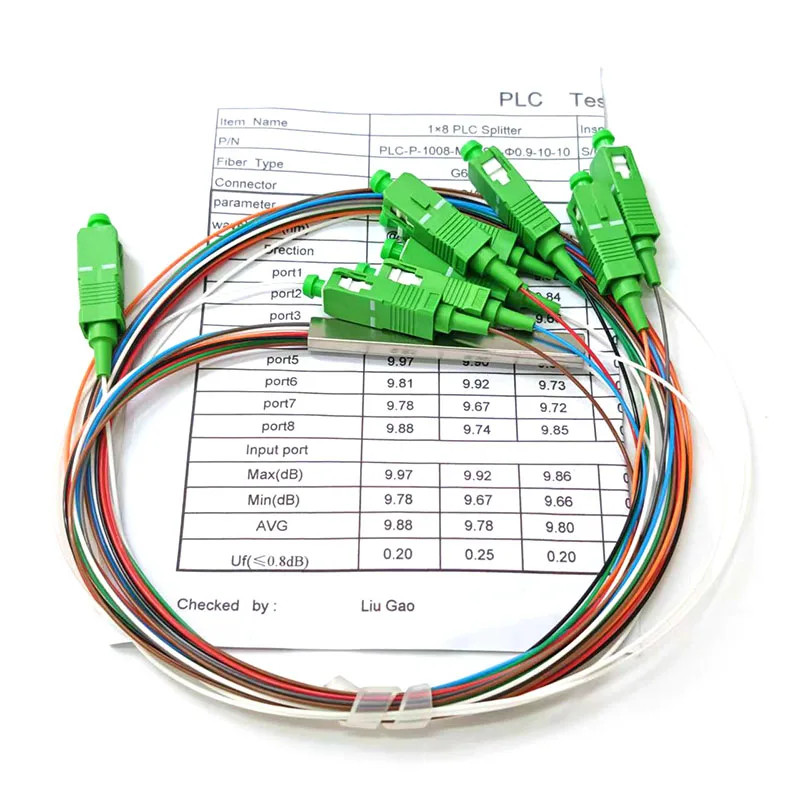

Fiber Optic PLC Splitter 1x8 SC/APC 0.9mm Steel Tube Mini Blockless FTTH SM 1*8 SConnector PLC Splitter
Application:
Specification:
Parameters
1x4
1x8
1x16
1x32
1x64
1260-1650
InsertionLoss(dB)
Max(S/P)
7.4/7.2
10.7/10.5
13.7/13.5
16.9/16.5
21
LossUniformity(dB)
Max
0.6
0.8
1.2
1.7
2.5
ReturnLoss(dB)
Min(S/P)
50/55
50/55
50/55
50/55
50
PDL(dB)
Max
0.2
0.3
0.3
0.3
0.4
Directivity(dB)
Min
55
55
55
55
55
PigtailLength(m)
FiberType
1
1
1
1
1
TemperatureStability
0.6
0.6
0.8
1
1
(-40~85℃)(dB)
-20~75
-40~85
40x4x4
40x4x4
40x4x4
50x7x4
60x12x4
Fiber optic PLC splitter, also known as a beam splitter,is based on a quartz substrate of an integrated waveguide optical power distribution device, similar to a coaxial cable transmissionsystem.The optical network system also needs to be an optical signal coupled to the branch distribution. The fiber optic splitter is one of the most important passive devices in the optical fiber link, is optical fiber tandem device with many input terminals and many output terminals, especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH etc.) to connect the ODF and the terminal equipment and to achieve the branching of the optical signal.
Planar Lightwave Circuit (PLC) is a more recent technology. PLC splitters offer a better solution for applications where larger split configurations are required. To achieve this, waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light. As a result, PLC splitters offer very accurate and even splits with minimal loss in an efficient package.
