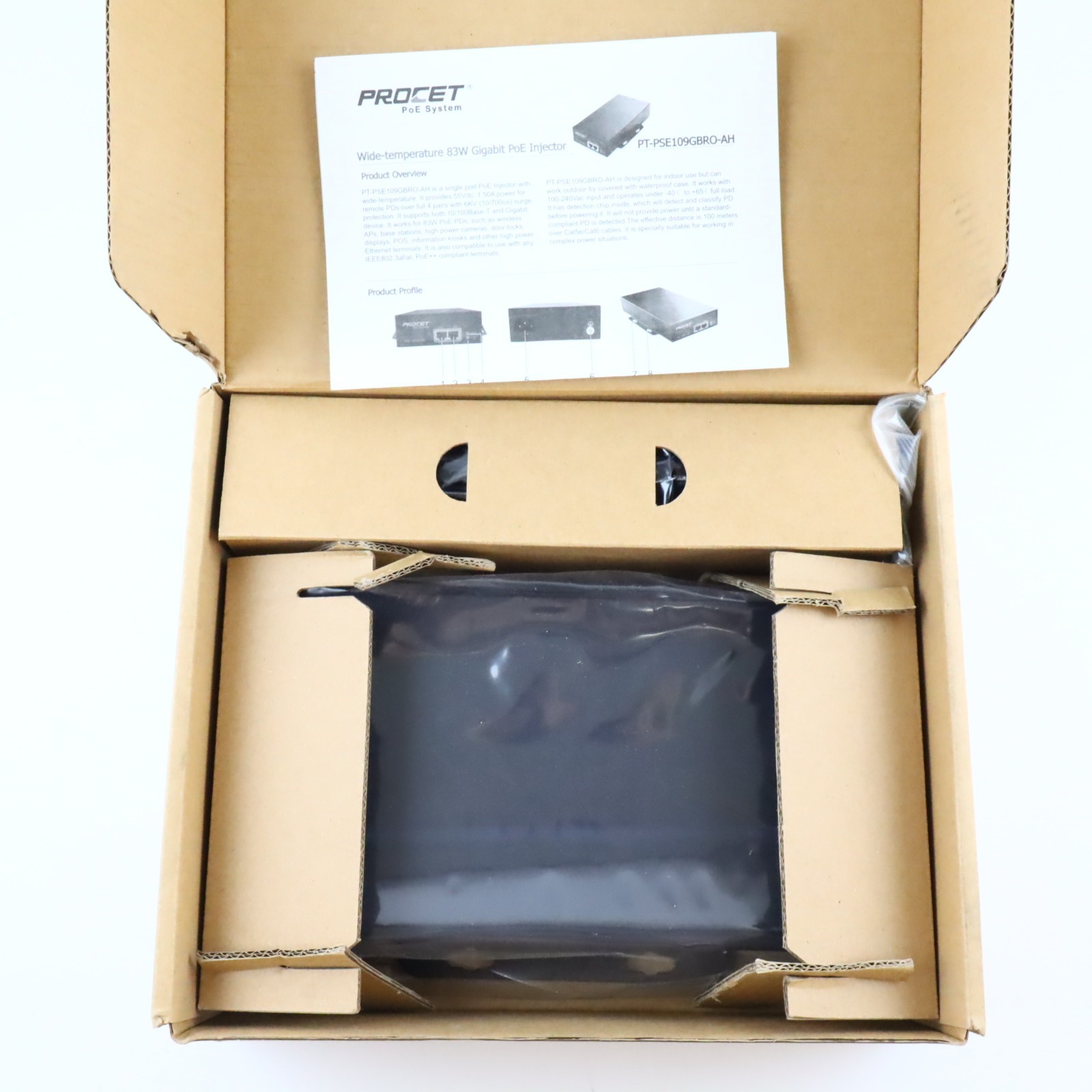

PROCET PT-PSE109GBRO-AH 83W Gigabit PoE++ Injector Industrial Application - NEW
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
PROCET PT-PSE109GBRO-AH 83W Gigabit PoE++ Injector Industrial Application - NEW
Price: US $29.95

The PROCET PT-PSE109GBRO-AH is an 83W Gigabit PoE injector designed to deliver network connectivity and power to compatible devices through a single Ethernet cable. Its four-pair power delivery supports demanding applications such as wireless access points, high-power IP cameras, displays, access-control equipment, and information kiosks.

A wide operating temperature range makes it suitable for installations exposed to substantial temperature changes. Integrated device detection checks compatible connected equipment before supplying power, while surge protection helps protect the Ethernet connection. Gigabit connectivity supports cable runs up to 100 meters using suitable Cat5e or Cat6 high-power PoE injection.

  • Supports 10/100/1000 Mbps Ethernet.
  • Four-pair power delivery with 55V DC output.
  • Automatic powered-device detection and classification.
  • 6kV surge protection.
  • Full-load operation from −40°C to +65°C.
  • Compatible with IEEE 802.3af/at and supported PoE++ PROCET
  • Model: PT-PSE109GBRO-AH
  • Part Number: AA02026
  • Version: 2.9
  • Product Type: Gigabit PoE injector
  • Rated Power: 83W
  • Input Voltage: 100–240V AC
  • Output Voltage: 55V DC
  • Output Current: 1.50A
  • Ethernet Speed: 10/100/1000 Mbps
  • Connections: RJ45 data input and RJ45 data/PoE output
  • Powered Outputs: 1
  • Power Delivery: Four pairs
  • Maximum Cable Distance: 100 meters with suitable Cat5e/Cat6 cable
  • Operating Temperature: −40°C to +65°C
  • Surge Protection: 6kV, 10/700µs
