PWM Driver Module, DC 12V 24V 48V PWM 4-Wire Fan Temperature Controller with Dig

Price: US $24.19

PWM Driver Module, DC 12V 24V 48V PWM 4-Wire Fan Temperature Controller with Digital Display 2 Channel Temperature Governor for PC Fan/AlarmDescription Number of Items 1 Model 1 Part Number 1 Voltage 12 volts Display Type LCD Operating Temperature 85 °C Color Green Item Dimensions L x W x H 0.61"L x 2.54"W x 0.61"H Item Weight 0.04 kg Product Dimensions 0.61"L x 2.54"W x 0.61"H

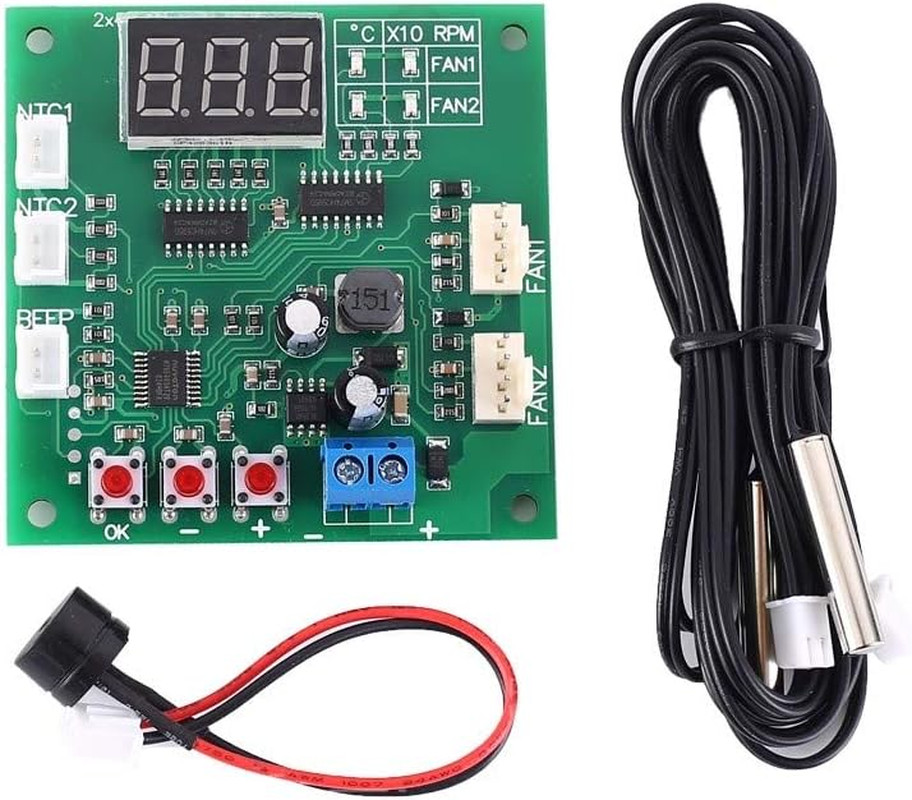

Product description PWM Driver Module

The control board displays the value through the display screen.The current value of the four LED indicators on the right side of the display screen indicates that the two LEDs on the first line indicate the temperature and speed of the channel 1 (x10rpm),and the two LEDs on the second line represent the channel two Temperature and speed (x10rpm).
Under normal working conditions, the four values will be displayed in turn.You can quickly switch the value manually by pressing the + Button and - Button at any time.After manual switching,you will stay at this value for a long time before entering the wheel display state.You can shield the display of channel 2 as needed.

It is a PWM 4-Wire Fan Temperature Controller.It has a temperature and speed display and a stall alarm.
The current value of the four LED indicators on the right side of the display screen indicates that the two LEDs on the first line indicate the temperature and speed of the channel 1 (x10rpm),and the two LEDs on the second line represent the channel two Temperature and speed (x10rpm).
This product is not limited by the fan current,but the pin current of the fan interface on the board should not be greater than 3A.If you use a higher current fan,please connect the fan power cord directly to the main power.
Note: The working voltage must be equal to the fan voltage.If you use a 12V fan but supply 24V,it will burn the fan.
