Description:

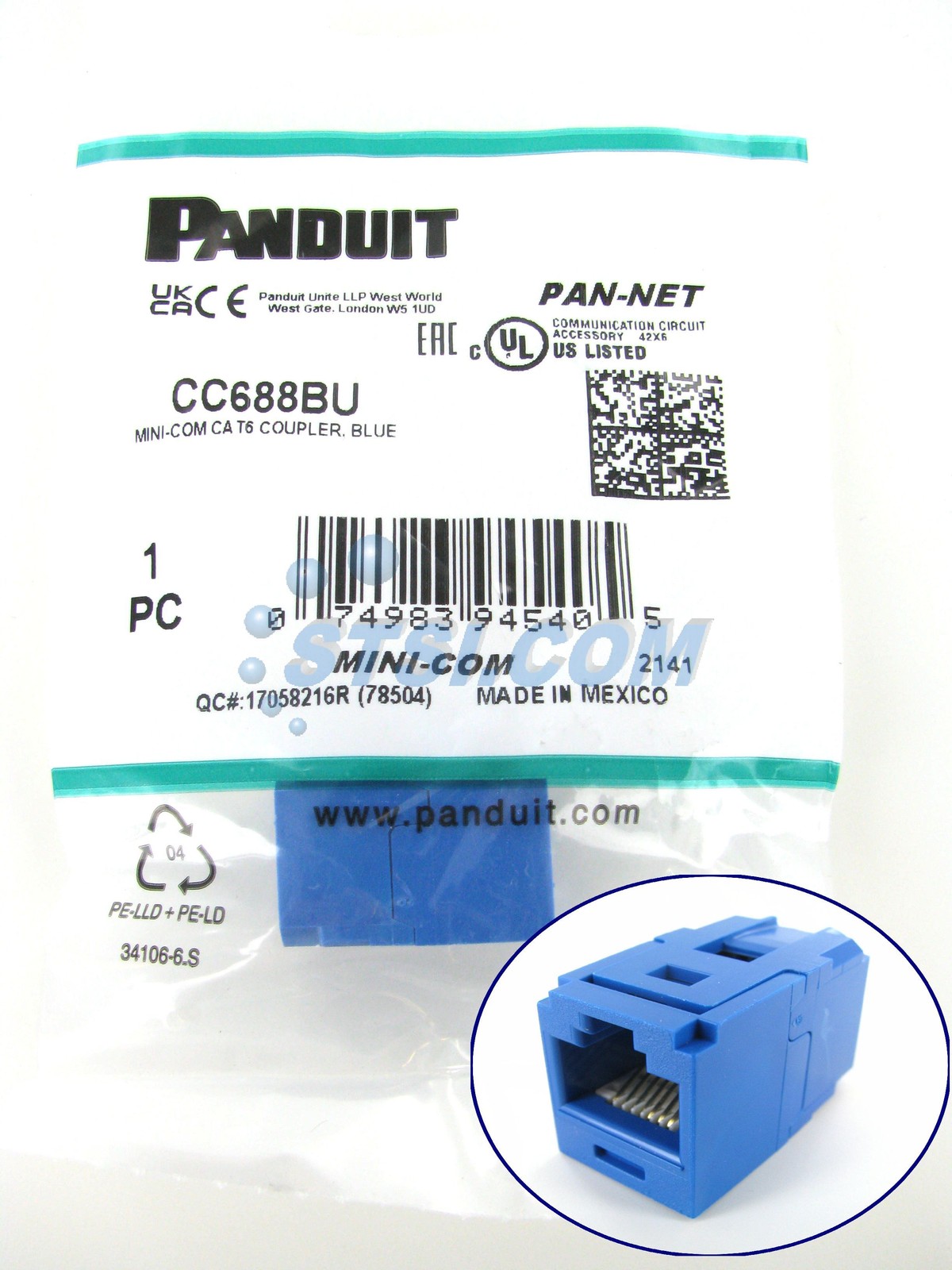

Category 6, RJ45, 8-position, 8-wire universal coupler module, BlueThe Mini-Com® Cat 6 UTP RJ45 Coupler Module is designed and 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. The coupler module is compatible with Mini-Com Modular Patch Panels and Faceplates. The coupler is Blue.Specifications:

• Product Type Coupler Module
• Performance Level Category 6
• Connector Type Coupler Module
• Termination Style Coupler
• Body Material Polycarbonate
• Contact Material Plated Phosphor Bronze
• Module Type Mini-Com®
• Wiring Scheme T568A/T568B
• Shield Type Unshielded (UTP)
• Sub Brand Pan-Net®
• Maximum Operating Temperature (°C) 75
• Maximum Operating Temperature (°F) 167
• Minimum Operating Temperature (°C) -10
• Minimum Operating Temperature (°F) 14
• Maximum Storage Temperature (°C) 75
• Maximum Storage Temperature (°F) 167
• Minimum Storage Temperature (°C) -40
• Minimum Storage Temperature (°F) -40
• Resistance Properties Heat-Resistant
• Color Blue
• Standards Met Exceeds Channel Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category with up to 2 couplers per channel, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
• Overall Depth (In.) 1.09
• Overall Depth (mm) 27.7
• Overall Height (In.) 0.71
• Overall Height (mm) 18
• Overall Length (In.) 1.09
• Overall Length (mm) 27.7
• Overall Width (In.) 0.62
• Overall Width (mm) 15.7
