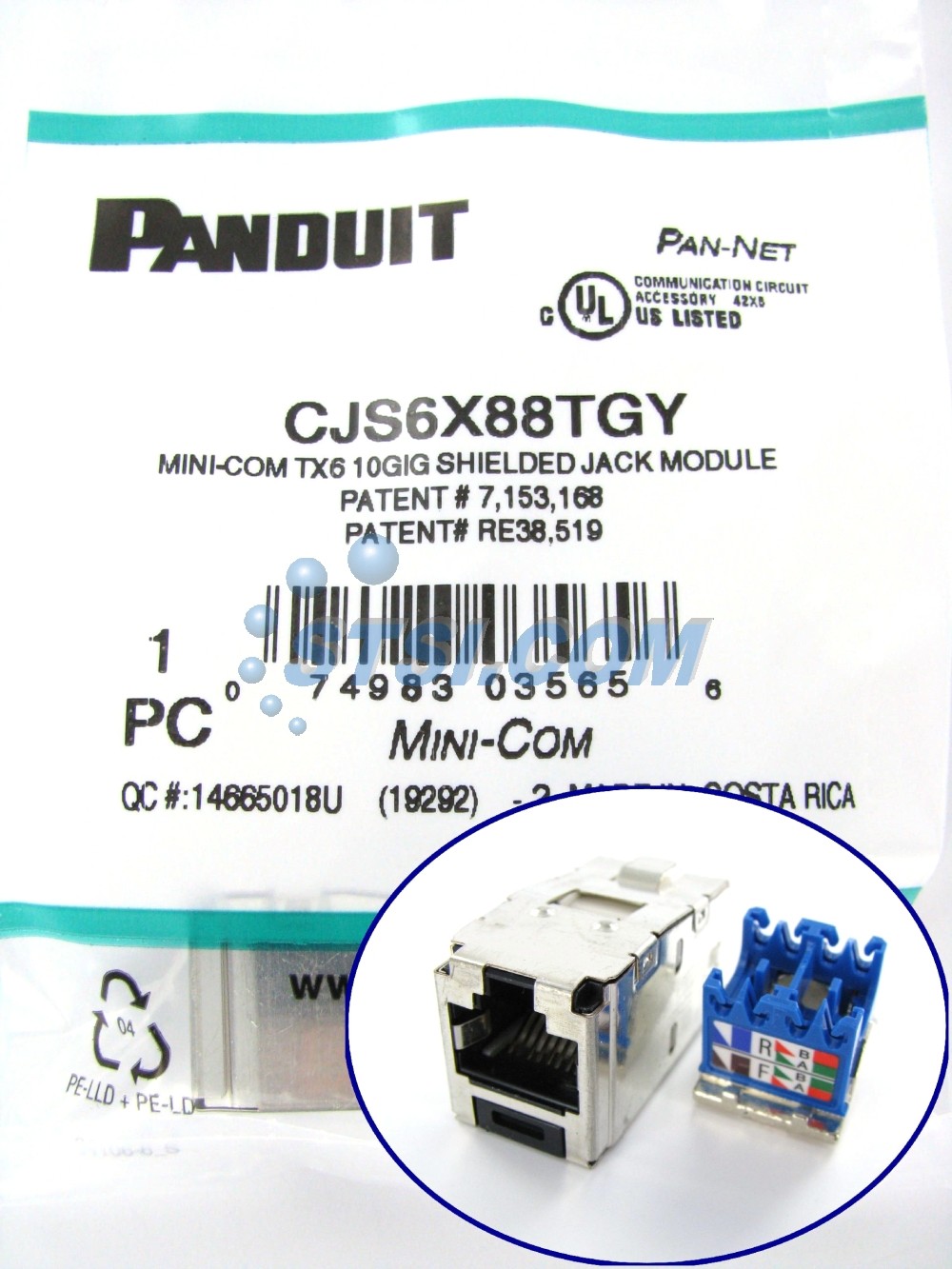

Panduit CJS6X88TGY Shielded RJ45 Cat6a TG Jack Module, Black

Description:

Mini-Com Module, Cat 6A, Shielded, 8 pos 8 wire, TG Style
Features:

• Exceed requirements of ANSI/TIA-568-C.2 Category 6A, IEEE 802.3an-2006, and ISO 11801 Class EA channel standards
• Exceed requirements of ANSI/TIA-568-C.2 Category 6A and IEC 61156-5 Category 6A component standards
• Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications
• Each jack is 100% tested to ensure NEXT and RL performance and is individually serialized for traceability
• Utilize patent-pending enhanced Giga-TX™Technology for jack terminations which optimizes performance by maintaining cable pair geometry and eliminating conductor untwist
• Fully grounded and bonded to patch panel when installed in Panduit All Metal Modular Patch Panel
• Contacts plated with 50 microinches of gold for superior performance
• No punchdown tool required; termination tool (EGJT-1) ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability
• Optional termination tool (TGJT) reduces termination time by 25%, ideal for high volume installations
• Can be re-terminated a minimum of twenty times
• Blue termination cap designates 10Gig™ Category 6A performance and provides positive strain relief; helps control cable bend radius and securely retains wires
• Terminate 4-pair, 22 – 26 AWG, 100 ohm, solid or stranded shielded twisted pair cable
• Universal termination cap is color-coded for T568A and T568B wiring schemes
• Integrated strain relief with wire cap provides 360 degree conductive path for grounding
• .187" grounding tab provides conductive patch for grounding individual jacks
• Accept 6 and 8-position modular plugs without damage
• Can be clearly identified with optional labels and icons
• Compatible with Mini-Com® Modular Patch Panels, Faceplates, and Surface Mount Boxes
• Optional RJ45 Blockout device blocks out unauthorized access to jack modules and potentially harmful foreign objects, saving time and money associated with data security breaches, network downtime, repair and hardware replacement
• Optional Dust cap keeps out dust and debris while not in use
• Optional RJ45 Lock-in device blocks unauthorized removal of cable, IP phone, other networking equipment or critical Number CJS6X88TGY
• RoHS Compliancy Status Compliant
• Note CJS6X88TGY replaces CJS6X88TG
• Part Description Category 6A, RJ45, 10 Gb/s, 8-position, 8-wire universal shielded black module with integral shield.
• Product Type Shielded Jack Module
• Material Module housing - ABS
• Shield - Tin plated Phosphor Bronze
• Wire Cap - Plastic
• Color Black
• Depth (In.) 1.50
• Depth (mm) 38.1
• Height (In.) 0.73
• Height (mm) 18.6
• Width (In.) 0.62
• Width (mm) 15.8
• CE Compliant No
• No. of Module Spaces 1
• Performance Level Category 6A/Class EA
• Pricing Description Mini-Com Module, Cat 6A, Shielded, 8 pos 8 wire, TG Style
• Wiring Scheme T568A/T568B
