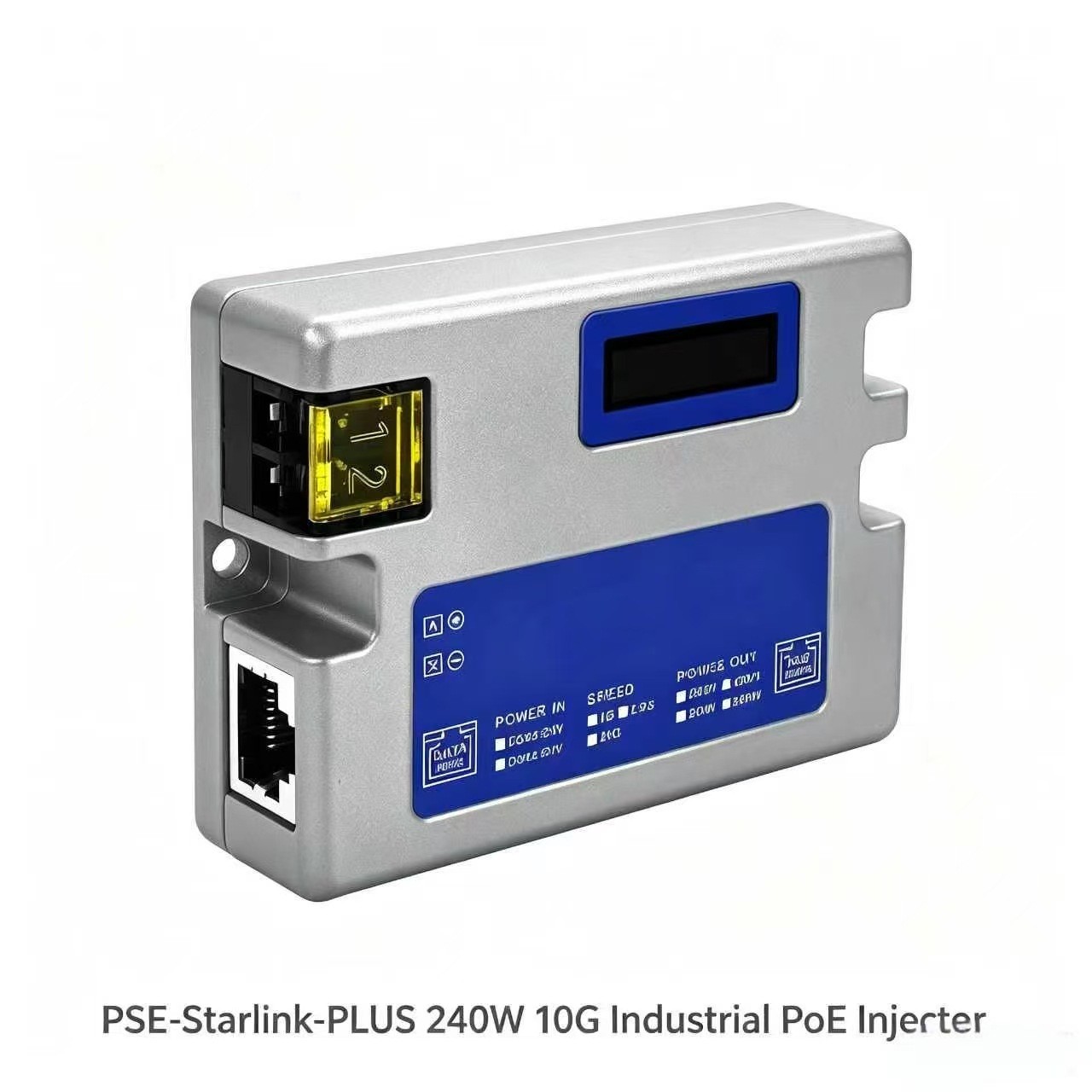

Overview

This industrial-grade 10G multi-gigabit PoE injector delivers simultaneous high-speed data transmission and high-power PoE output in a compact aluminum housing. Featuring a built-in OLED real-time monitoring display, full-circuit intelligent protection system, -40°C to +80°C ultra-wide operating temperature, and 10KV lightning surge protection, it is engineered for harsh industrial and outdoor environments. Ideal for high-power PTZ cameras, industrial wireless APs, machine vision systems, smart transportation, and satellite communication equipment.

Key Features

• ✔ 10G Multi-Gigabit Ethernet – All ports support auto-negotiation of 10M/100M/1G/2.5G/5G/10G. Plug-and-play with no manual configuration. Compatible with Starlink Gen 2, Gen 3, V5, Enterprise, High Performance.
• ✔ 240W High-Power PoE Output – Delivers heavy PoE power for demanding devices.
• ✔ Real-Time OLED Display – Built-in OLED screen shows DC input voltage, PoE output current, load power consumption, and automatic fault alerts. No extra testing instruments needed.
• ✔ Intelligent Power Protection – Overvoltage/undervoltage protection, short circuit auto-recovery, and overpower limiting. Automatically cuts off or isolates faults to protect both injector and connected devices.
• ✔ 10KV Lightning Surge Protection – 10KV 8/20μs lightning surge protection standard. Effectively resists lightning-induced surges and static interference in outdoor wiring.
• ✔ Industrial Wide Temperature – Operating range: -40°C to +80°C. Storage range: -40°C to +90°C. Adaptable to extreme cold, high-temperature workshops, and all-weather outdoor deployment.
• ✔ Compact & Flexible Installation – Dimensions: 80×60×23mm, weight: 0.12kg. Supports both desktop placement and wall-mounted installation. Aluminum alloy shell for stable heat dissipation.

Specifications

• Type: Industrial 10G PoE Injector
• PoE Power Output: 240W/320W
• Ethernet Speed: 10M/100M/1G/2.5G/5G/10G auto-negotiation
• Ports: 1× 10G PoE port (output) + 1× 10G LAN port (input)
• DC Input Terminal: 6.35mm
• Display: OLED real-time monitor (voltage/current/power)
• Lightning Protection: 10KV 8/20μs (seller claims)
• Operating Temperature: -40°C to +80°C (seller claims)
• Storage Temperature: -40°C to +90°C (seller claims)
• Humidity: 5%-90% RH operating, 5%-95% RH storage, non-condensing
• Housing: Aluminum alloy shell
• Dimensions: 80×60×23mm (3.15×2.36×0.91 in)
• Net Weight: 0.12kg / 0.26 lbs
• Installation: Desktop / Wall mount
• Cable Recommendation: Cat6 or higher UTP

Package Includes

• 1× 240W/320W10G Industrial PoE Injector
• 1× DC power cable with connector
• Mounting screws for wall installation

Compatibility Note

This PoE injector is designed for high-power network terminal equipment including PTZ cameras, industrial wireless APs, machine vision cameras, 5G small cells, and satellite communication antennas. Please verify your device's PoE power requirements and connector type before purchasing. This product does NOT include the connected network device.

Application Scenarios

• Industrial Machine Vision – High-power AI cameras, visual inspection equipment, automated production line terminals
• Outdoor Video Surveillance – Heavy-duty PTZ cameras, multi-lens security cameras, intelligent recognition cameras
• Smart Transportation – Highway traffic cameras, roadside radar, tunnel monitoring equipment
• Wireless Communication – Wi-Fi 6/7 APs, 5G small base stations, industrial wireless routers, microwave transmission
• Smart City – Unmanned parks, smart street lights, port monitoring, border surveillance
• Energy & Industrial Sites – Photovoltaic stations, wind farm monitoring, oilfield equipment, container data terminals
