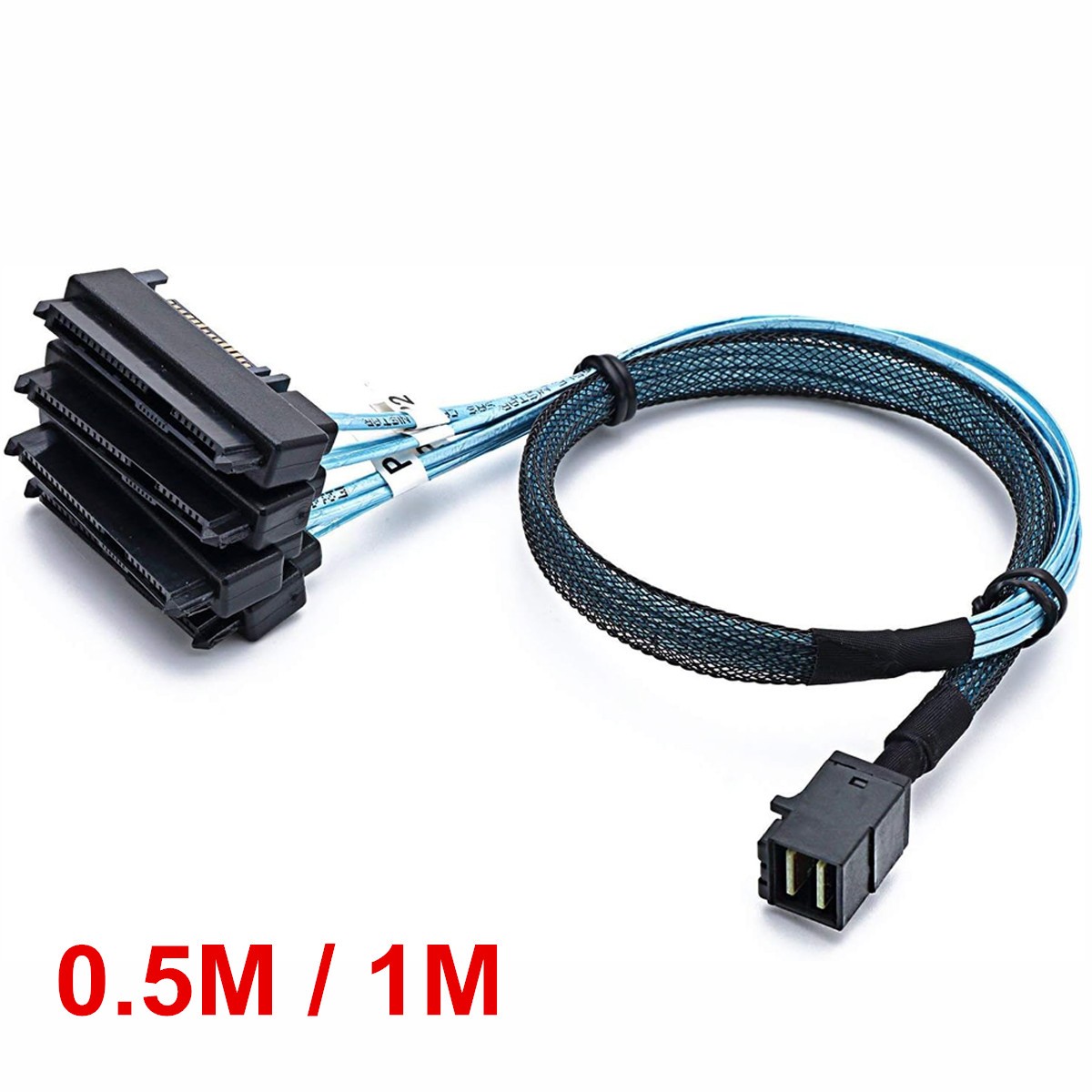

Power Port Hard Drive 0.5M 1M Mini SAS HDD SFF-8643 to 4 SFF-8482 Connector US Power Port Hard Drive 0.5M 1M Mini SAS HDD SFF-8643 to 4 SFF-8482 Connector US Internal Mini SAS SFF-8643 to 4× SFF-8482 Fan-Out Cable with Power
- This internal Mini SAS cable connects a Mini SAS SFF-8643 host (RAID controller or motherboard) to four SAS/SATA hard drives using 29-pin SFF-8482 connectors with integrated 15-pin SAS power ports. Designed for enterprise-level storage applications, it ensures stable performance and reliable signal integrity.
Controller-Based Mini SAS to SAS Breakout Cable (Host → Target)
- This is a forward breakout (fan-out) cable, where SFF-8643 is the host side and SFF-8482 connectors are the target side. It is intended for direct connection from a controller to HDDs.
- Not compatible with backplane Mini SAS ports.
High-Quality Construction for Data Reliability
- Built with 30AWG high-performance cable, optimized for low insertion loss, reduced crosstalk, and consistent impedance, ensuring dependable data transmission for SAS and SATA drives.
Broad Compatibility for Enterprise & Server Use
- Ideal for RAID arrays, rack-mount servers, workstations, storage racks, and data communication systems. Compatible with SAS and SATA hard disk drives using SFF-8482 A: Internal Mini SAS SFF-8643 (Host)
- Side B: 4 × 29-Pin SFF-8482 SAS connectors with 15-Pin power
Cable Details:
- Wire Gauge: 30AWG
- Cable Length Options: 0.5M / 1M
- Cable Color: Black & (Redundant Array of Independent Disks)
- Enterprise Servers
- Rack-Mount Storage & Communication Systems
- Mechanical Performance
- Mating Force: ≤ 55 N
- Unmating Force: ≤ 49 N
- Test Standard: EIA-364-13
- Insertion/Extraction Speed: 25 mm/min
- Electrical Performance
- Current Rating: 0.5A per pin (max)
- Voltage Rating: 30VAC per contact
- Contact Resistance:
- Initial: ≤ 30 mΩ
- After Stress Test: ≤ 15 mΩ
- Dielectric Withstanding Voltage: 500VAC / 1 min
- Insulation Resistance: ≥ 1000 MΩ
Signal Integrity:
- Mated Connector Impedance: 100Ω ±15%
- Cable Impedance: 100Ω ±10%
- Pair Matching: ±5Ω
- Common Mode Impedance: 25–40Ω
Insertion Loss:
- ≤ -6dB @ 4.5GHz
- ≤ -11dB @ 9GHz
- Crosstalk: ≤ -35dB @ 6GHz
Package Includes:
