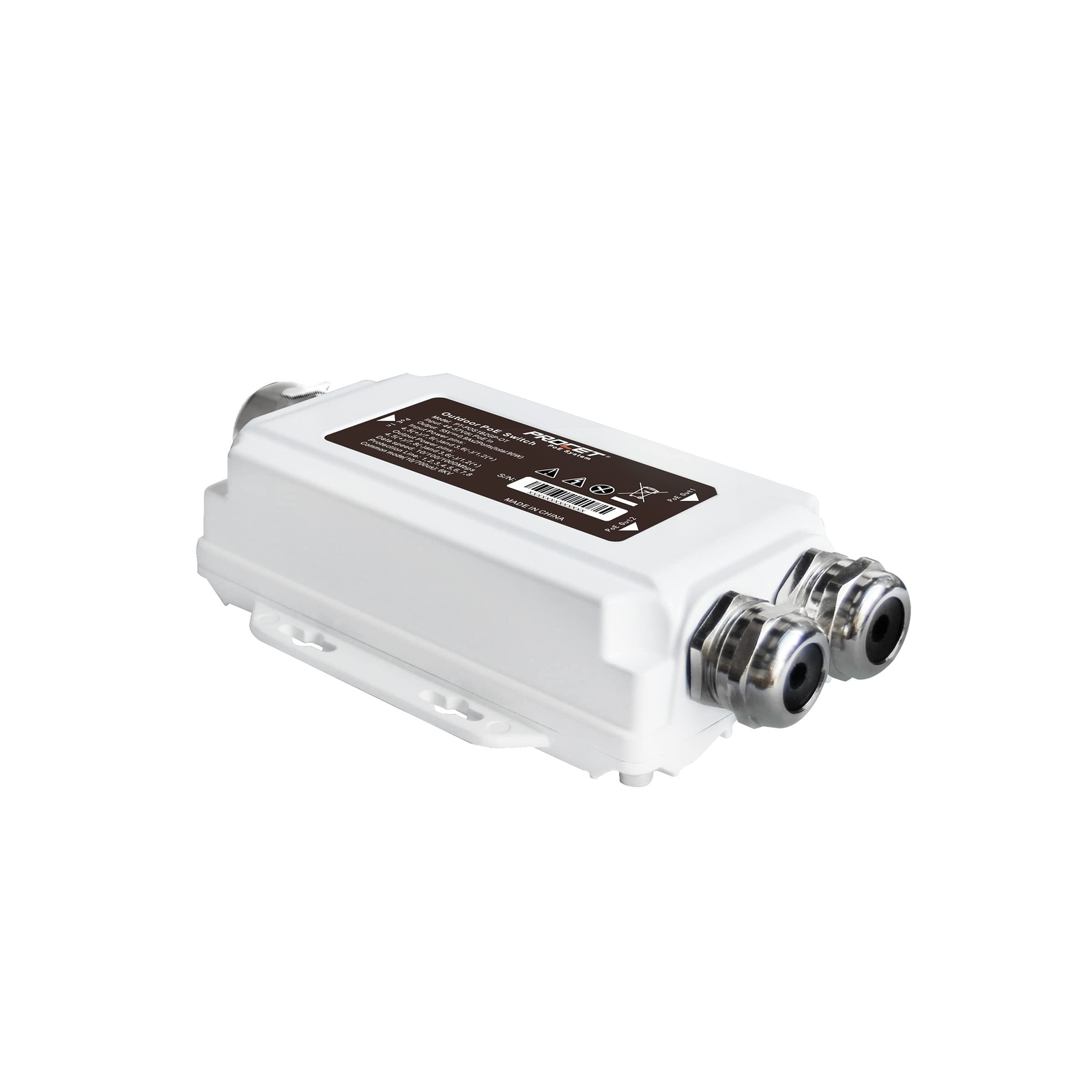

Procet Outdoor 12-55VDC Input |10G PoE Injector Adapter | 55VDC 0.55A 30 Watts Output | PoE+ 802.3at IP67 Rated Waterproof for 10GbE Devices Wi-Fi 6, AX WiFi, 802.11ax WiFi, WiFi 6 routers
Product Details
- Brand: PROCET PoE System
- Hardware Interface: Ethernet
- Color: White
- Compatible Devices: Internet Protocol Camera
- Data Link Protocol: IEEE 802.3
- Data Transfer Rate: 1000 Megabytes Per Second
- Item Weight: 1.2 Hundredths Pounds
- UPC
- Manufacturer: Beijing Creative Lianjie Network Technology Co.,LTD
- Product Dimensions: 7.4 x 4.1 x 1.8 inches
- Item Weight: 0.192 ounces
- Item model number: PT-PSE108GR-OT-10DE
- Date First Available: March 23, 2021
- Manufacturer: Beijing Creative Lianjie Network Technology Co.,LTD
- Works with your existing power source - Solar, can be used to power 802.3af/at devices from a 12 volt to 55 volt DC input, you will instantly get 55V PoE on the output. Convert existing battery 12-55 volt power sources to PoE for use with Power over Ethernet IP Cameras, Phones, Base station Radios and WiFi access points
- Industrial-scale, boost PoE, Temperature rating of -40 to 65 degrees Celsius. Build-in detecting chip inside, which will Auto-negotiating IEEE802.3af/at PDs, no worry about powering a non-PoE device
- PoE port 6KV surge protection, protect output against over voltage, over current, short circuit
- Support not only 10/100/1000Mbps of data speed, but also 2.5G/5G/10G bps transmission rate for Wi-Fi 6 router, effective distance is 100meters(328ft)
- IP67 rated for outdoor use, waterproof. Small in size with high performance. Wall-mount or Pole mount
More and more people are cutting the cord and going solar,Solar toPOE+:Whether you have a remote PTZ Camera or Wifi,this injector can take awide range of input power and power and deliver constant POE+ with surgeprotection.An outdoor rated POE injector/midspan specially forexterior,complex backhaul and networking applicantions.Enclosed in an IP67Reflective Aluminum case with a sealing that gasket passestension,bearing,corrosion,and aging test for IP67 apolatons.It supports notonly 10/100/1000Mbps of data rates,but also 2.5/5/10GbE NBase-T.The singleoutput port delivers 55V,0.55A power 2 pair for remote PD wth 6KV (10/700us)sure protecton. It works with iuput voltage of 12-55Vdc makes it possible forsolar application.The output voltage is a fixed one at 55V.Wide temperatureextend to -4℃ to +65℃.The output port equipped detecting chip which iscompliant with IEEE802.3af/at can power up wireless APS,IP cameras,Microwaveradio,base stantions and other power Ethernet backhaul devices.For planningpurposes,the effective distance is 100 meters over Cat5e/Cat6 cables.Eaeily toinstall with mounting holes,no need to open the equipment.With Stainless SteelCable ties can be fixed on a pole. -lnput :12-55Vdc 4.0A -Output: 55Vdc 550mA-Power Pins: 4/5(+), 7/8(-) Mode B- -Data Speed: 10/100/1000Mbps &2.5/5/10GbE-Full comoliant with lEEE802 3af/at -PoE Surge Protection 6KV,Protected line:1,2,3,4,5,6,7,8 - Operating Temperature: -40°C to 65°C -Operating Humidity:20% to 80%, non-condensation -Storage Temperature: -40°C to 85°C - StorageHumidity: 10%% to 95%, non condensation - Operating Altitude: up to5000meters. - Case: Aluminum -Color: WhiteMounting: Wall-mounted/Pole-mounted- IP Rated: IP67 -Size: 187mm X 104.79mm X 45mm -Weight: 565g -Packing. :Manual x 1
