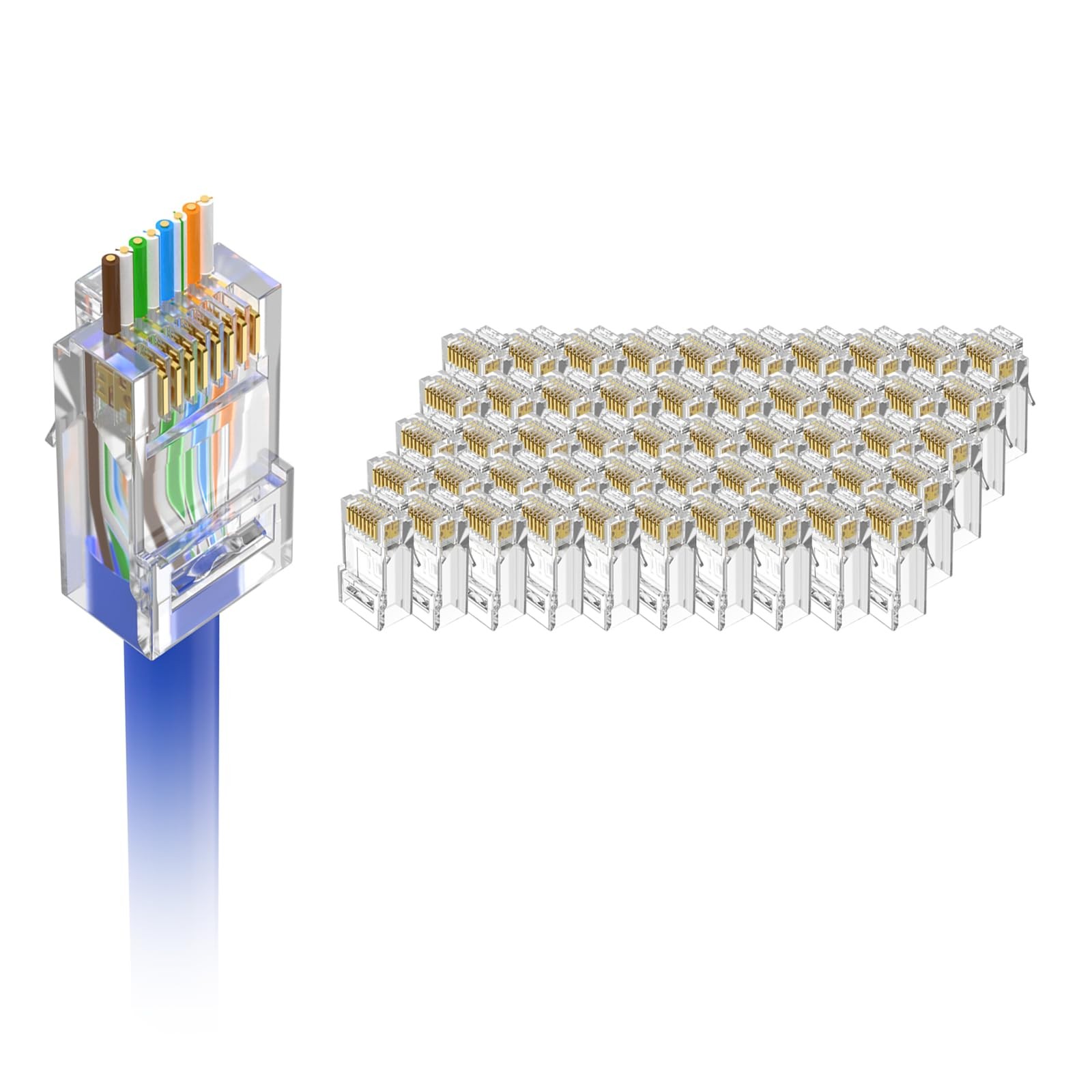

RJ45 Cat6 Pass through Connectors 50-Pack, Cat 6/Cat 5E RJ45 Ends Gold Plated fo

• 𝗖𝗔𝗧𝟲 UTP rj45 pass thru connectors solid or stranded UTP CAT6/CAT5E/CAT5 cable ( wire core diameter should be 0.93 mm-1.04 mm ). Suitable for devices with standard RJ45 ports such as PC, Hub, Router, Switch, etc.
• 𝗛𝗶𝗴𝗵 𝗤𝘂𝗮𝗹𝗶𝘁𝘆--The are made of Phosphor Bronze with gold-plated, anti-oxidational and durable. 3-Prong blades can more accurately pierce the wire than 2-prong blades, ensure more stable and high data transfer speed. The transmission speed can up to 1000Mbps.
• 𝗦𝗮𝗳𝗲𝗿 𝗮𝗻𝗱 𝗗𝘂𝗿𝗮𝗯𝗹𝗲--Our cat6 connectors with UL Listed are flame retardant, and safer to use in computer rooms, offices, and homes.
• 𝗘𝗮𝘀𝘆 𝘁𝗼 𝗨𝘀𝗲--The PASS-THRU DESIGN cat6 termination end can help you easily insert the wire trough the connector, and you can reconfirm wiring sequence before crimping to improve install success rate and reduce waste.
• 𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁𝘀: 50 x cat6 rj45 pass-thru plug. All our products have 24h friendly customer service. If there is any problem, please be assured that we will try our best to help you.

SPECIFICATIONS 1.ELECTRICAL:
UL APPLICATIONS: 250 VOLTS AC MAX. AT 2 AMPS.
DIELECTRIC WITHSTANDING VOLTAGE : 1000 VOLTS AC. 60 SEC.
INSULATION RESISTANCE: 500 MΩ.
RESISTANCE: 20mΩ MAX.
OPERATING AMBIENT TEMPERATURE: -20°C ~ 75°C. 2.MECHANICAL:
STRAIN RELIFE: 20POUND MIN.
DURABILITY: 1200 MATING CYCLES. 3.MATERIAL:
HOUSING: POLYCARBONATE, UL94V-0 OR UL94V-2.
COLOR: TRANSPARENT OR OTHER COLOR ARE AVAILABLE.
BLADE: COPPER ALLOY.
GOLD PLATING: 3u'', ARE AVAILABLE. 4. USAGE:
SUITABLE FOR STRANDED & SOLID WIRE 23AWG ~ 26 AWG.
(It can be used for the wire OD from Ø 0.93 ~ Ø1.04)
