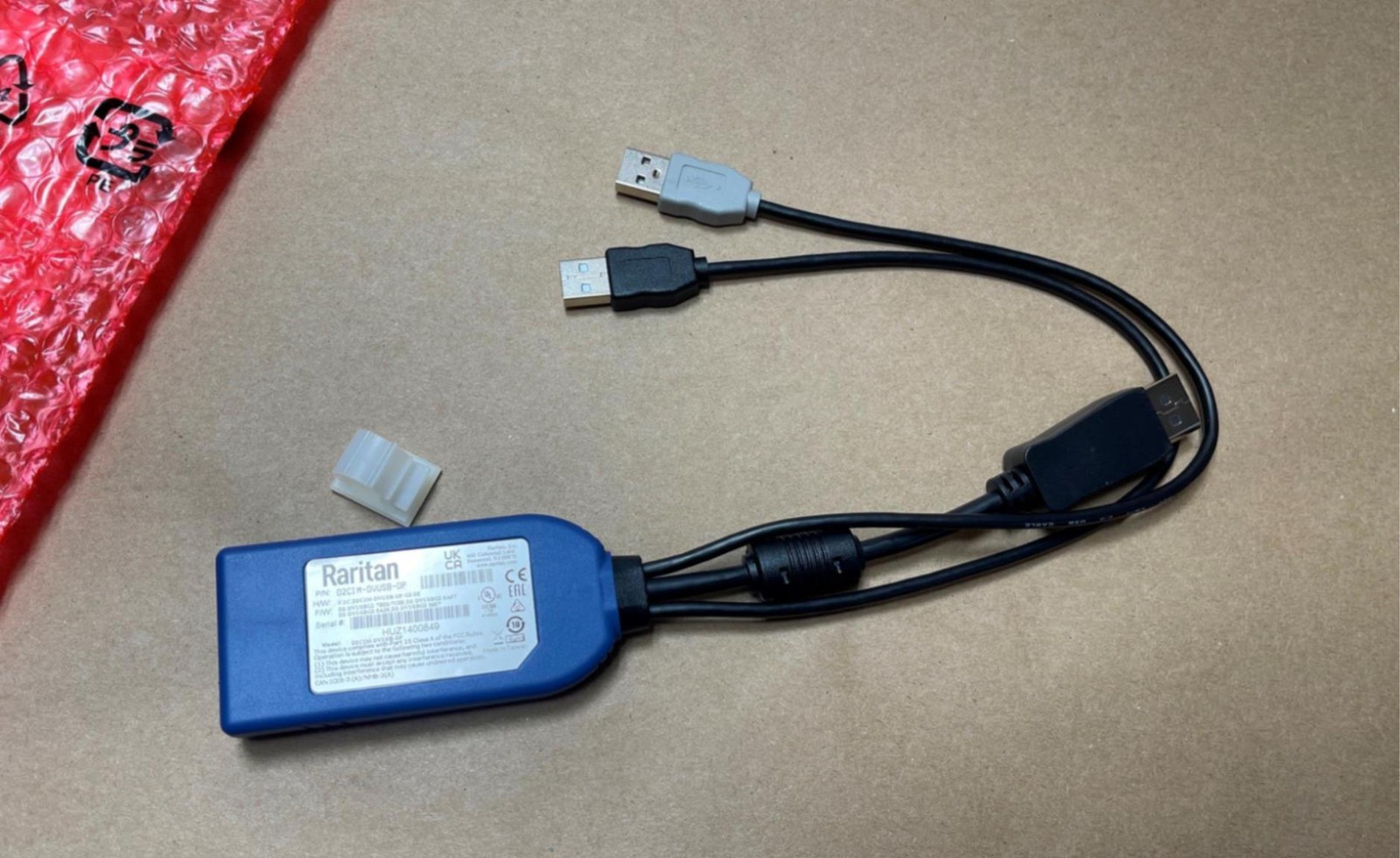

Raritan Dominion KX II Dual USB/DisplayPort CIM D2CIM-DVUSB-DP Raritan Dominion KX II Dual USB/DisplayPort CIM D2CIM-DVUSB-DP
The RaritanD2CIM-DVUSB-DP is a dual USB, DisplayPort based virtual media CIM foruse with certain Raritan KVMs. This CIM is required for virtualmedia, absolute mouse synchronization, and the advanced KVM featuresof the Raritan Dominion KXIII or the Legacy Raritan Dominion KXII.This CIM is recommended for customers with DisplayPort KVM needs,planning to access virtual media drives at the OS/BIOS levels as wellas the Smart Card, tiering and audio features.
* Please note: ThisDigital Computer Interface Module requires Dominion KX II Release 2.5firmware to operate.
Raritan D2CIM-DVUSB-DP FeaturesUp to 150ft via Single CATx Cable
Raritan D2CIM-DVUSB-DP ComputerInterface Module (CIM) extends access to your DisplayPort enabledcomputer over a single CAT5/6 cable; The maximum resolutionachievable is:
BIOS-Level Virtual Media
The D2CIM-DVUSB-DP has two USB plugs, one for keyboard/mouse andone for virtual media; This enables many additional server BIOS,including ones that require a special 'USB Profile', to accessvirtual media drive
Audio via USB
Digital Audio over IP is supported using USB Virtual Media on newenhanced Dominion KX III CIMS. USB Audio allows you to interface withaudio peripherals such as speakers, microphones, or mixing desks.Note, Audio is not embedded in the DisplayPort signal.
Flash Updatable
Raritan CIMs can be Flash-upgraded with new firmware - ensuringRaritan CIMs are future proof - and allow you to set custom settingsfor each CIM level for non-standard operations.
Blazing-fast, High Definition DisplayPort Video
Raritans new enhanced digital D2CIM-DVUSB-DP CIM supports highdefinition standard DisplayPort video resolutions of up to 1920x1080,including widescreen formats.
Absolute Mouse Synchronization
The Absolute Mouse Synchronization feature in the D2CIM-DVUSB-DPallows for the use of absolute coordinates that are specified in theUSB HID mouse specification instead of using 'mouse acceleration' onthe target machine mouse drivers. This ensures the pointers arealways synchronized.
Compact 'Zero-U'
Raritan CIMs are compact transmitters that fit in your palm, andtake 0U of space in rack. These CIMs can simply be zip-tied or hangoff the back of racks.
Plug and Play
Raritan CIMs are designed for plug and play functionality and donot require any drivers or software to be installed for standardoperations.
USB Virtual Media with Support for Audio &Smart Card (CAC)
Raritan D2CIM-DVUSB-DP supports beaming of USB devices over IP -also known as "Virtual Media". This enables the use ofmemory sticks, external drives, mice, and web cameras with remotetarget servers. The included dual USB also supports Smart Card or USGovernment Common Access Card (CAC) use.
DDC/E-EDID Display Emulation
DDC/E-EDID is supported by the digital CIMs with the "preferredtiming mode" set by the Dominion KX III administrator. This isthe preferred/native/default video resolution, called the "DisplayNative Resolution" on the KX GUI. The default resolution can bechanged by the user on the Port Configuration Page for each port.
USB Powered
Raritan CIMs are automatically powered over USB connector by thesource computer. This eliminates a need for any separate power supplyand makes setup simple.
