Raritan MasterConsole Digital MCD-216 Dual User USB DVI Audio 16 port KVM Switch
Raritan MCD-216 MasterConsole Digital KVM is a dual-user switch to used to control multiple servers. It features KVM ports for 16 servers and can be cascaded 2 levels to support up to 512 connections at distances up to 150 feet (45 meters). Connecting to a computer is made easier with the use of standard Category 5/6/6e cables. MCD-216 provides a friendly OSD (On-Screen Display) interface and hotkeys for quick and easy access connected computers.
Raritan's MCD-216 is ideal for small to midsized businesses (SMB) who need to have a centralized point of access to multiple servers without the expense and clutter of a dedicated keyboard, mouse, and monitor for each computer or server. MCD-216 supports the highest HD video resolution of up to 1920x1080 via standard Category 5/6/6e cabling. The multi-format video interface supports both Analog - VGA and Digital - DVI, HDMI and DisplayPort. Stereo audio is also supported by using VGA combo cables or MCD-216's HDMI Computer Interface Modules (CIMs).
- Supports HDMI/DVI/DP/VGA video and stereo audio
- MCD-216 MasterConsole Digital supports severs with both analog (VGA) and digital video: HDMI, DVI, and DisplayPort (DP). Audio is supported by Raritan's MDCIM-HDMI or MDUTP VGA KVM combo cables.
- MCD-216 supports 1920 x 1080 video resolutions at 150 feet.
- Dual local users user can manage 16 servers connected to MCD-216. Users can also expand up to 512 servers by cascading the units.
- AutoScan allows users to scan servers at variable rates for effortless monitoring.
- AutoSkip allows users to bypass inactive channels.
- Plug-and-play installation, auto-configuration, and easy-to-use on-screen displays. Targets can be labeled with device names for easier server selection from the OSD.
- MCD-216 can be cascaded 2 levels, by using Raritan's MDCIM-DVI or MDUTP cables, to control up to 512 servers
- MCD-216 MasterConsole Digital KVM Switch is the next generation of Raritan Cat5 KVM switches. It supports dual user control of up to 16 servers.
- MCD-216 is only 1U of rack space in height
- MCD-216 works with a mixture of servers that have USB keyboard/mouse interfaces and
- HDMI/DVI/DP digital video interfaces or analog VGA.
- MCD-216 server interface cables (MDCIMs) with "keep-alive" technology allow users to add, remove and hot-swap CIMs without interruption to the live servers. MDCIMs also support DDC, DDC2, and DDC2B.
- Utilizes Cat5e/6/6e cabling to carry the KVM signaling from the server (via MDCIMs) to a KVM switch.
- Allows easier server selection from the on-screen menu.
- Plug-and-play installation, auto-configuration along with easy-to-use, on-screen displays. With the one-man installation kit, you can easily install MCD-216 in the rack.
- Support of one administrator and 127 user profiles for secure access and simple management.
Raritan MCD-216 Specifications
Mechanical
Width 17.33 in. (440mm)
Depth 5.91 in. (150mm)
Height 1.73 in. (44mm)
Weight 4.43 lbs. (2009g)
Form Factor 1U, full width
rack mountable (brackets included)

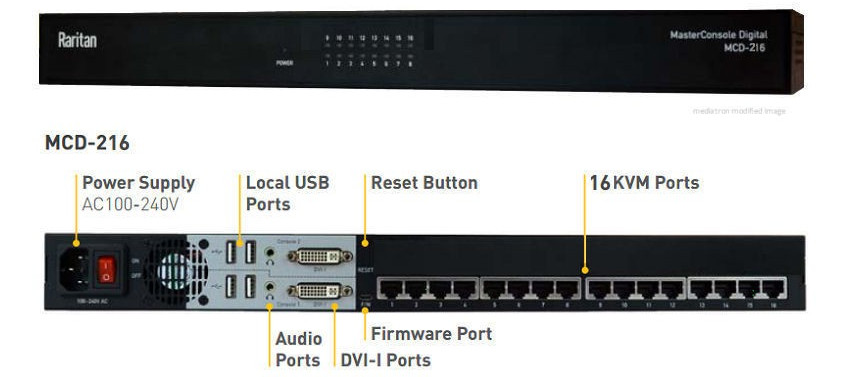

Connections & Indicators
Supported console users 2
Channel ports (female RJ-45) 16
Female USB-A ports (for keyboard/mouse) 4
Female DVI-I ports (for video output) 2
Female 3.5mm audio jack (for audio output) 2
Female Micro USB (for firmware upgrade) 1
Reset button (for power cycle) 1
AC socket 1
Power switch 1
Channel LEDs (white, but turn green when accessed) 16
Power LED (blue) 1
Maximum number of servers with a two-tier system comprising the same models 512
Video support 1920 x 1200 @75Hz (VGA)
1920 x 1080@60Hz (DVI)
DDC2B
Power
Maximum Input Power Rating AC100-240V, 1.5A
Maximum Power Consumption DC12V/5.42A (65W)
Environmental
Operating Temperature 32° (0°C) to 122° (50°C)
Storage temperature -4° (-20°C) to 140° (60°C)
Humidity 0-80% RH , Non-condensing
Safety CE/FCC/VCCI/UL
Many other Raritan Accessories (CIMs, switches, user stations....) are also available at the KVM section in our store.
