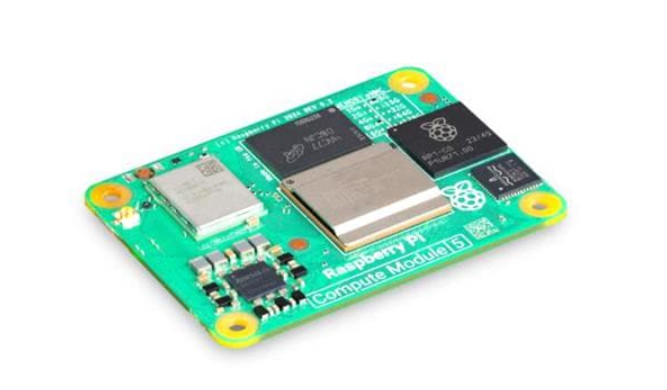

Raspberry Pi Compute Module 5 CM5002000 SC1556 2GB RAM Lite No Wireless
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Raspberry Pi Compute Module 5 CM5002000 SC1556 2GB RAM Lite No Wireless
Price: BR $55.00

Key Features

  • Genuine Raspberry Pi Compute Module 5
  • Manufacturer Part Number: SC1556
  • Model: CM5002000
  • Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 processor @ 2.4GHz
  • 2GB LPDDR4 RAM with ECC
  • Lite version (no onboard eMMC storage)
  • No onboard Wi-Fi or Bluetooth
  • Compact 55 × 40mm module for embedded systems
  • Compatible with Raspberry Pi CM5 IO Board and custom carrier boards
Technical Specifications
  • Processor: Broadcom BCM2712 Quad-Core Cortex-A76 64-bit @ 2.4GHz
  • Memory: 2GB LPDDR4 SDRAM with ECC
  • Storage: None (Lite version; boot from external storage)
  • Wireless: None
  • Networking: Gigabit Ethernet PHY (via carrier board)
  • USB: 2 × USB 3.0, 1 × USB 2.0 (via carrier board)
  • PCIe: 1 × PCIe Gen 2 x1
  • Display: Dual HDMI 2.0 (up to dual 4K@60Hz via carrier board)
  • Camera/Display Interfaces: Dual 4-lane MIPI CSI/DSI
  • GPIO: Up to 30 GPIO
  • Power Input: 5V USB PD (via compatible carrier board)
  • Dimensions: 55 × 40 × 4.7 mm
  • Operating Temperature: -20°C to +85°C

  • Ideal For
    • Industrial automation
    • Embedded computing
    • Robotics
    • Edge AI and machine vision
    • IoT gateways
    • Custom hardware development
    • Commercial and OEM products
    Package Includes
    • 1 × Raspberry Pi Compute Module 5 CM5002000 (SC1556)
