Waveshare Ethernet USB HUB HAT 1 RJ45 Ethernet Port 3 USB Ports for Raspberry Pi Zero W WH

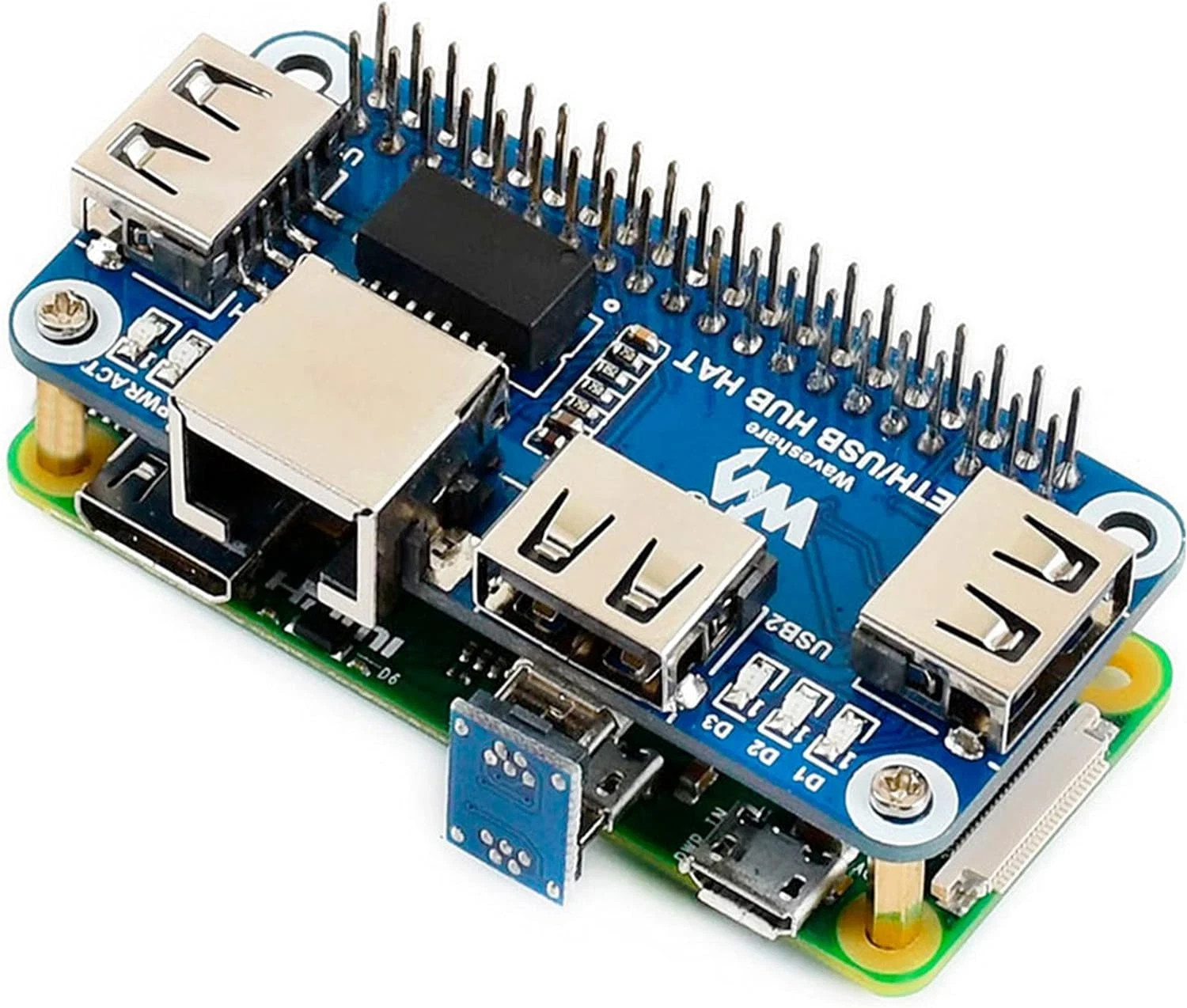

Ethernet / USB HUB HAT For Raspberry Pi, 1x RJ45 Ethernet Port, 3x USB Ports

This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.

It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.

• 3x USB ports, compatible with USB2.0/1.1

• 1x RJ45 10/100M port, based on the RTL8152B Ethernet chip

• Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port

1. Raspberry Pi GPIO interface: for connecting Raspberry Pi

2. USB extended ports: USB1~USB3

3. RJ45 port: 10/100M Ethernet interface

4. USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port

   • Raspberry Pi Zero / Zero W / Zero WH: connected via Micro USB connector

   • Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected via Micro USB cable

5. TS8121A: Ethernet wave filter

6. RTL8152B: 10/100M Ethernet chip

7. FE1.1S: USB HUB chip

8. LED indicators:

   • PWR: power indicator

   • ACT: Ethernet indicator

   • D1~D3: dedicated indicator for USB1~USB3 style="margin-block: 1em; margin-inline: 0px;">

   • Operating voltage: 5V

   • Dimension: 65mm × 30mm

   • Mounting hole size: 3.0mm

   Dimensions
   Package Content


   1. ETH/USB HUB HAT x1

   2. Micro USB connector x1

   3. Micro USB cable x1

   4. RPi screws pack (2pcs) x1
