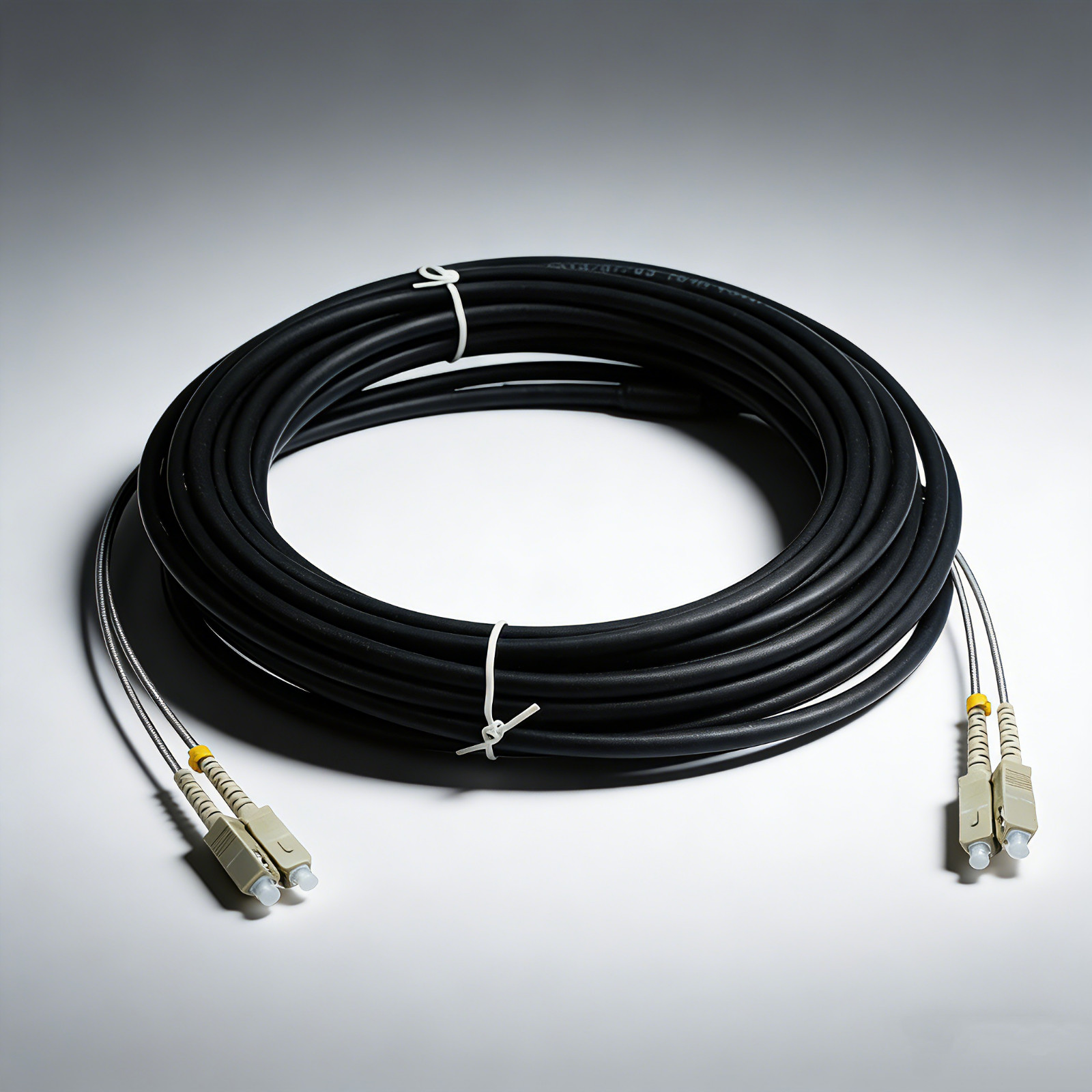

SC UPC to SC UPC Duplex MM MultiMode OM2 30M Outdoor Field Fiber Optical Patch Cord
Description:
Note: If you need other length and connector, pls contact with us, thank you!

30M SC UPC to SC UPC MM MultiMode Duplex Outdoor Field Fiber Optical Patch Cord, engineered for stable, high-speed optical signal transmission in outdoor field environments. Built to withstand harsh outdoor conditions, it’s ideal for short-to-medium distance outdoor projects, including FTTH, enterprise outdoor wiring, and outdoor network connections, with duplex design to support offerirectional signal transmission.Key Features

• Length: 30 Meters (98.4 Feet) – perfect for short-to-medium distance outdoor field connections, compatible with outdoor FTTH and enterprise network projects
• Connector Type: SC UPC to SC UPC Duplex – standard SC UPC (Ultra Physical Contact) connectors, low insertion loss, easy to mate with outdoor optical equipment, ensuring secure and stable offerirectional signal transmission
• Fiber Spec: MM MultiMode – optimized for short-to-medium distance transmission, high bandwidth, compatible with 1G/10G Ethernet, ideal for outdoor local area networks and enterprise connections
• Duplex Design: Dual fiber cores (transmit and receive), supports offerirectional signal transmission simultaneously, improving work efficiency for outdoor field projects
• Outdoor Field Grade: Weather-resistant, UV-resistant, and anti-aging jacket, designed to withstand extreme temperatures, rain, dust, and outdoor harsh environments
• Telecom-Grade Quality: Strict quality control, low insertion loss, high return loss, stable performance, and long service life for outdoor long-term use
• Field Installation-Friendly: Flexible design, easy to deploy in outdoor field scenarios (e.g., pole mounting, underground wiring), no complicated tools required for connection
• Widely Applicable: Suitable for outdoor FTTH projects, enterprise outdoor networks, CATV outdoor transmission, outdoor LAN, and outdoor optical communication engineering

Specifications

• Cable Type: SC UPC to SC UPC Duplex Outdoor Field Fiber Optical Patch Cord
• Quantity: 1 Piece (30M)
• Length: 30 Meters (±1% tolerance)
• Fiber Mode: MM MultiMode (50/125μm or 62.5/125μm, industry standard)
• Fiber Core/Cladding: 50/125μm or 62.5/125μm (standard multiMode)
• Cable Design: Duplex (2 fiber cores, transmit + receive)
• Connectors: SC UPC (Female) to SC UPC (Female), gold-plated ferrule, anti-oxidation, low insertion loss
• Jacket Material: Outdoor-grade PE/PVC (weather-resistant, UV-resistant, flame-retardant)
• Insertion Loss: ≤0.3dB per connector
• Return Loss: ≥50dB (UPC standard)
• Operating Temperature: -40°C ~ +85°C (adapts to extreme outdoor temperatures)
• Bending Radius: ≥10mm (static), ≥20mm (dynamic)
• Application: Outdoor FTTH, Enterprise Outdoor Networks, CATV Outdoor Transmission, Outdoor LAN

Package Includes1 x 30M SC UPC to SC UPC MM MultiMode Duplex Outdoor Field Fiber Optical Patch Cord
