Create a high-performance workstation via one set of keyboard and mouse to control 2 DisplayPort 1.2 computers with USB 3.0 and audio devices

Effortlessly Switch

Easily switching between computer/device via the front panel push button or USB keyboard hotkeys make this DisplayPort 1.2 4K Smart Console KVM Switch with USB 3.0 Multi-Media user-friendly to operate

Built-in signal level enhancement slide switch reforms DP source and resolve unstable original DP input automatically

High Resolution

Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV 4:4:4 8-bit, 3D, Deep color.

**Note: Does NOT work with passive or active DP-to-HDMI/DVI/VGA adapters

* HDR is not supported

High Performance

Offers a true 21.6Gbps video bandwidth and supports 7.1ch surround sound or stereo audio. PCM, DTS-HD, Dolby Digital and Dolby TrueHD audio also supported

Multiple Connectivity Port

Comes with two DisplayPort video ports, four USB 3.0 Type-A ports for connecting multiple USB peripherals such as flash drives, printers…, two USB 1.1ports for keyboard and mouse connection, six 3.5mm audio jack ports to connect stereo speakers / earphone or microphone, one Micro USB port for Firmware update, one DIP Switch, and one Slide Switch (signal level)

Connection

HIGH-SPEED DATA TRANSFER

Delivers four USB 3.1 Gen1 Type-A ports and supports data transfer rates up to 5Gbps

Maximum Compatibility

Auto EDID (bypass) design maximizes the compatibility from OS to display. Auto-scan feature for quick browsing and system monitoring. Supports Plug-n-play and no driver installation required

TAA Compliant

Completely manufactured in a TAA designated country

Metal Housing Design

Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component and ESD protection for long service life

ESD Protection

An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device

• ? Educational facilities
• ? Gaming
• ? Hospital
• ? Workstation
• ? Control center
• ? Reception desk
• ? Media editing
• ? Retail stores
• ? Audio/Video presentation room

1. Please confirm your 2 computers with DisplayPort 1.2 port, USB 3.0 Type-B port, audio port and Mic port

2. Requires DisplayPort 1.2 connection for the display/monitorresolution that supports4K@60Hz* Please note that HDR is not supported

3. If you want to take full advantage of DisplayPort 1.2 full specifications, you need the DisplayPort 1.2 cable capable of the correct bandwidth. For example, if you are running4K@60Hz, then please use our DisplayPort 1.2 cables (those are included) or use the DisplayPort certified cables

4. Four USB 3.0 cables are required to connect to the USB peripheral devices.* Not support Dynamic Device Mapping (DDM) fast switching

Layout:

• 2x 20-pin DisplayPort 1.2, Female (PC input)
• 2x 9-pin USB 3.0 Type-B, Female
• 4x 3.5mm phone jack for Microphone and Stereo audio, Female (PC)
• 1x 20-pin, DisplayPort, Female, Output
• 2x 3.5mm phone jack for Microphone and Stereo audio, Female (Device)
• 4x 9-pin USB 3.0 Type-A, Female
• 2x 4-pin USB 1.1 Type-A, Female (for Keyboard/Mouse)
• 1x 5-pin Micro USB, FW update, Female
• 1x 2-pin DIP switch (control FW)
• 1x Slide switch (signal level)
• 1x DC power jack (5.5x2.5x10mm)

• PC or Laptop with available DisplayPort 1.2 port, USB Type-A port (USB 3.0 recommended), audio and Mic ports
• Compliant with Windows or Mac system

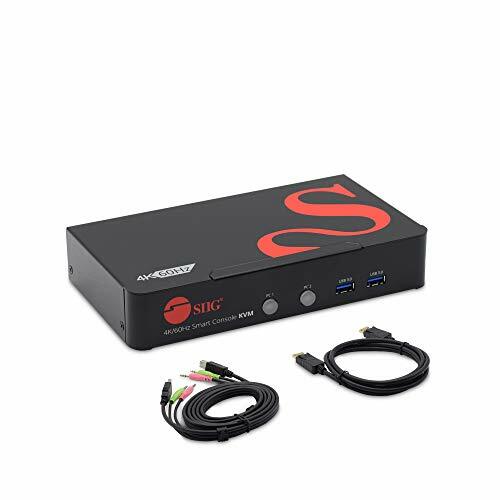

• 1x 2-Port DisplayPort 1.2 4K Smart Console KVM Switch with USB 3.0 Multi-Media
• 2x DisplayPort 1.2 cable (1.8m)
• 2x 3-in-1 cable (USB 3.0+Mic+Stereo, 1.8m)
• 1x Power Adapter (12V/2A)
• 1x User Reference Guide
