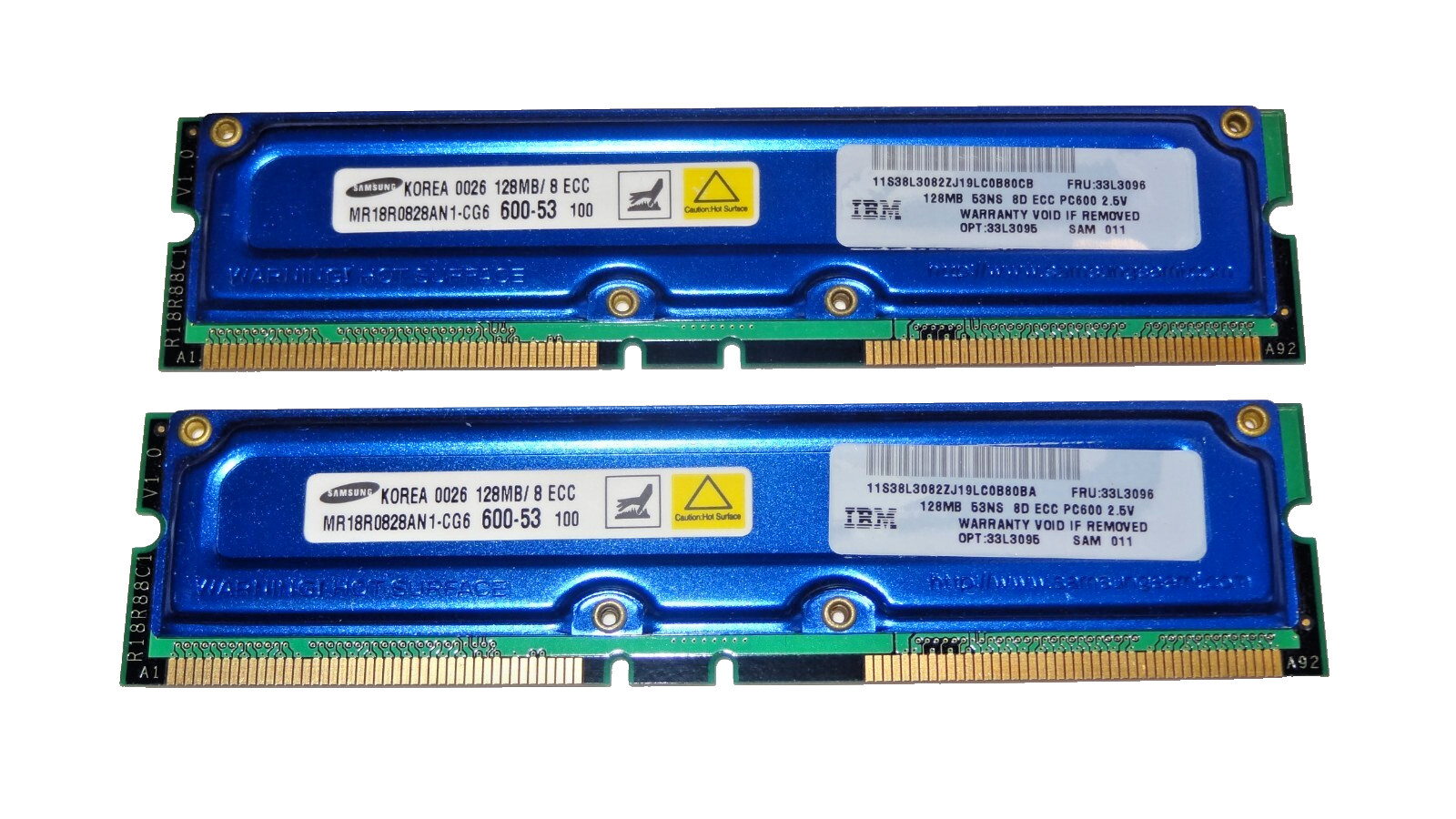

Samsung 256MB Rambus 2x128MB PC600 600MHz ECC 184-Pin RDRAM - MR18R0828AN1-CG6
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Samsung 256MB Rambus 2x128MB PC600 600MHz ECC 184-Pin RDRAM - MR18R0828AN1-CG6
Price: US $24.99
🧠 Samsung MR18R0828AN1-CG6 – Technical Specifications📦 Summary

  • Manufacturer: Samsung

  • Part Number: MR18R0828AN1-CG6

  • IBM FRU Number: 38L3096

  • Kit: 2 × 128MB modules (256MB total)

  • Memory Type: RDRAM (Rambus DRAM)

  • Form Factor: 184-pin RIMM

  • Module Speed: PC600-53

  • Capacity per Module: 128MB

  • Total Kit Capacity: 256MB

  • Data Bus Width: 16-bit

  • Chip Count: 8 chips per module

  • ECC Support: ✅ Yes (Error-Correcting Code)

  • Buffered: Yes (as required for ECC RDRAM)

  • Voltage: 2.5V

  • Latency: 53 ns

  • Heat Spreader: Yes (mandatory for all RDRAM)

🔧 Technical Details Per ModuleAttributeValueModule Capacity128MBKit Capacity256MB (2 x 128MB)Module Organization8 devices x 16-bit eachTypeECC, BufferedRDRAM Clock Rate600 MHz effective (300 MHz base)Data Transfer Rate1.6 GB/s per module (PC600 spec)CAS Latency~53 nsVoltage2.5VPins184-pin RIMMCompatibility TypeECC Workstation / Server🖥️ Compatible PC Systems

These modules are compatible with Intel 820/840-based workstations that support ECC RDRAM. They were not intended for consumer desktops like Dell Dimension or Gateway systems that used non-ECC RAM.

✅ IBM Systems (with IBM FRU: 38L3096)

  • IBM IntelliStation M Pro 6849 / 6850

  • IBM IntelliStation Z Pro 6865

  • IBM NetVista 2800 Series (with ECC RDRAM option)

  • IBM 6868, 6889 series Workstation platforms

These models were built on Intel 820/840 chipsets and had ECC-capable BIOS/firmware.

✅ Other Compatible Workstation-Class PCs / D820LP, D820GBIntel 820Socket 370/423 ECC RDRAM supportIntelOR840Intel 840Dual-channel ECC RDRAM supportSupermicroP3TDE6, P3TDEIntel 840Dual PIII ECC server/workstation boardsASUSCUR-DLSIntel 840Dual Slot 1 server/workstation boardTyanThunder 2500 (S1867)Intel 840Dual CPU, ECC support❌ Not Compatible With:

  • Dell Dimension 8100, 8200, 8250 (non-ECC RDRAM only)

  • HP Pavilion or Compaq Presario consumer desktops

  • Intel 850/850E chipset boards (require PC800 RDRAM)

  • DDR/SDR systems (completely different memory type)

  • Any system without ECC RDRAM BIOS/firmware support

🧩 Installation Notes

  • Must be installed in matched pairs

  • Empty RIMM slots require C-RIMM (Continuity RIMM)

  • ECC RDRAM only works in systems with ECC enabled in firmware

  • Check for chipset compatibility (Intel 820 or 840) and ECC requirement
