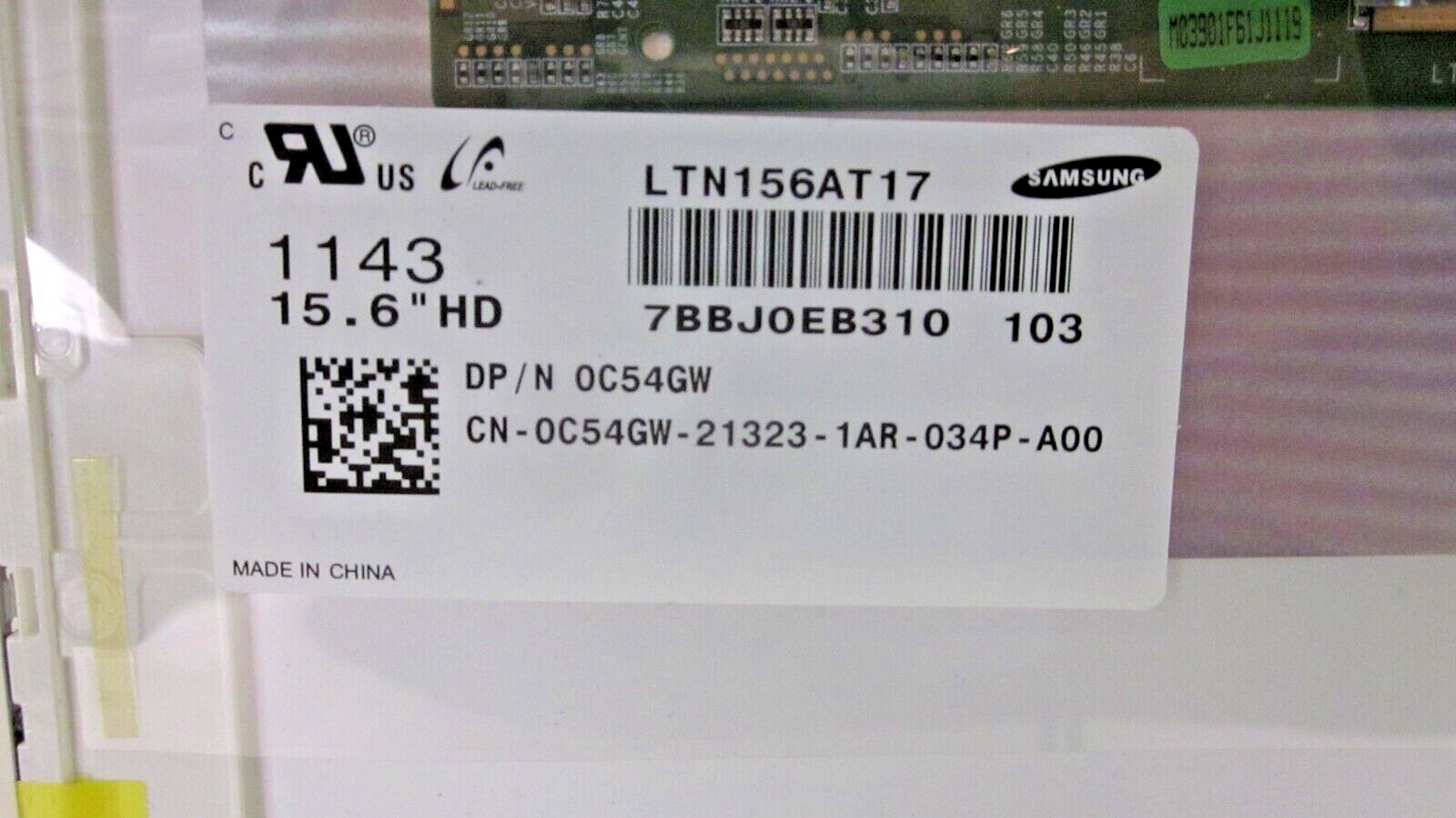

Samsung LTN156AT17 15.6" 1366x768 TFT-LCD, LCD Matte Laptop Screen DP 0C54GW - It has a 40 Pin Connector.
- This screen is 1 of 8 listed, so the screen arriving may differ only by CN Number orLTN156AT17/LTN156AT17-103, this will not affect the compatibility main part number of LTN156AT17
- It is a good bench tested working pull, is in good cosmetic condition.
- This screen and 4 listed where pulled from an laptop workstation that was used in an office environment.
- I give this a grade B only because its used.
- It has a D/P N : 0C54GW because it was pulled from a Dell Precision M4600 laptop SAMSUNG Model Name LTN156AT17Screen Size 15.6 inch Screen Type LCM , a-Si TFT-LCDPixel Number 1366(RGB)×768 (WXGA) 100PPI Arrangement RGB Vertical StripeActive Area(mm) 344.232 × 193.536 (H×V) Outline(mm) 359.3 × 209.5 × 5.5 (H×V×D)Bezel Area(mm) 348.8 × 197.1 (H×V) Treatment Hard coating (3H)Luminance 220 cd/m² (Typ.) Contrast Ratio 500 : 1 (Min.) (TM) Viewing Angle 40/40/10/30 (Min.)(CR≥10) Left / Right / Up / Down Response 16 (Typ.)(Tr+Td) msGood View at 6 o'clock Work Mode TN, Normally White, Transmissive [Panelook copyright, copy is strictly prohibited]IPS Family: AAS, ADS, AHVA, FFS, IPS, New Mode2, PLS, SFT, VistarichVA Family: ASV, HVA, MVA, PVA, SVA, UV²A, VAColor Depth 262K 60% NTSC Backlight 9S4P WLED , With LED DriverOutline Shape Wedge (PCBA Bent, T≥5.2mm) Used for LaptopRefresh Rate 60Hz [Panelook copyright, copy is strictly prohibited]120Hz (60HZ Input) : Embedded MEMC Circuit120Hz+120Hz : 120Hz Panel+120Hz Backlight240Hz (60HZ Input) : Embedded MEMC Circuit Touchscreen WithoutSignal Type LVDS (1 ch, 6-bit) , 40 pins ConnectorVoltage Supply 3.3V (Typ.)Max. Ratings Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
|
|
