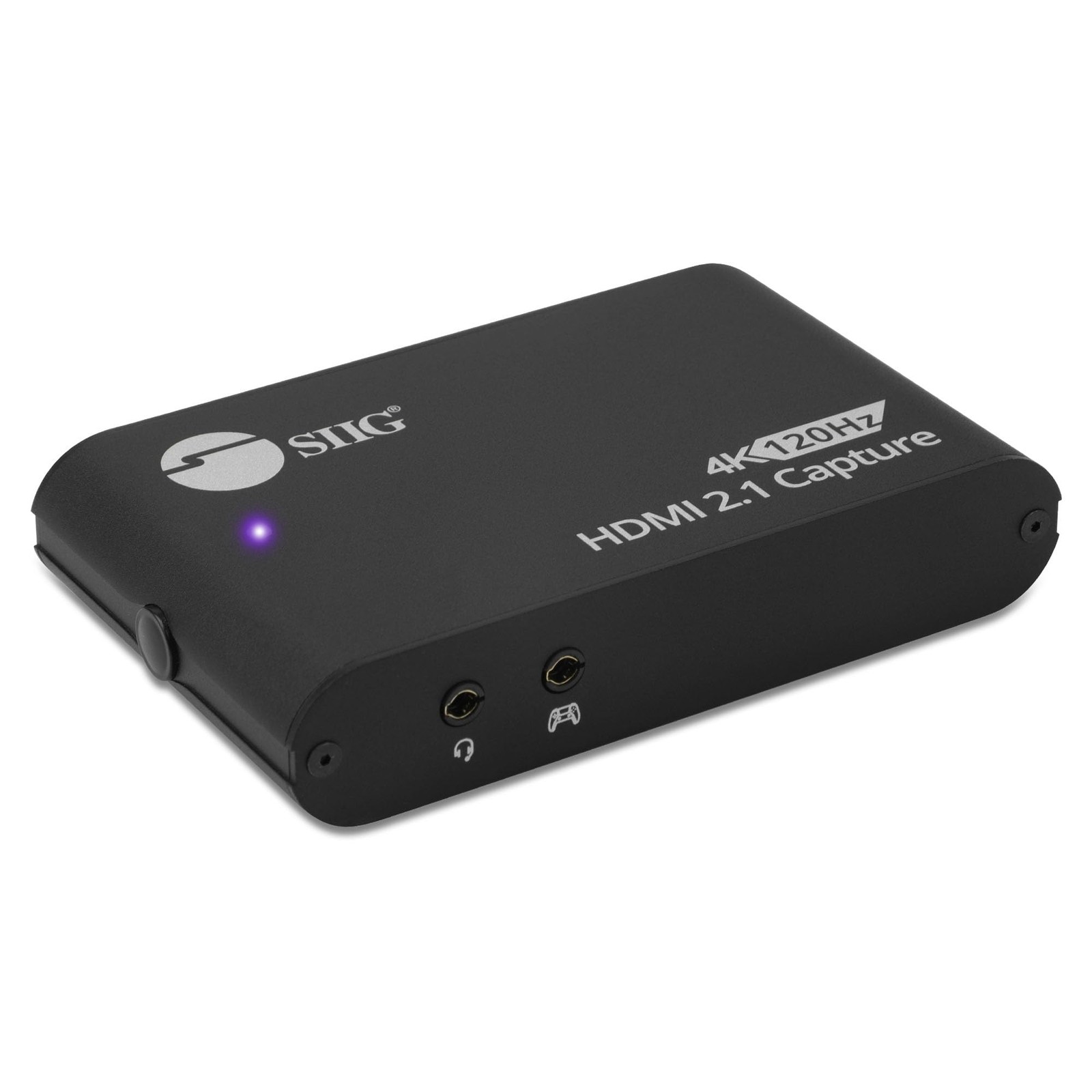

SIIG 4K120Hz HDMI 2.1 Capture Device for Gaming and Streaming - 4K60Hz Capture - 4K 120Hz/144Hz Loopout - USB-C 10Gbps - TAA Compliant (ce-h28311-s1) SIIG 4K120Hz HDMI 2.1 Capture Device for Gaming and Streaming - 4K60Hz Capture - 4K 120Hz/144Hz Loopout - USB-C 10Gbps - TAA Compliant (ce-h28311-s1)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: 4K120Hz HDMI 2.1 Capture Device for Gaming and Streaming 1x USB-C to C cable (1M) 1x 4 Pole 3.5mm Audio Cable(1.5M) 1x User Manual

TAA Compliant: Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: Taiwan

Product Description

This item is brand-new, factory sealed.

Overview
Easily capture and recording 4K60Hz resolution from any HDMI source such as Gaming PC (4K144Hz), Gaming console (4K120Hz), Media players or Set-top box while simultaneously viewing in the HDMI loopout for 4K144Hz / 4K120Hz, 1080p240Hz resolution, USB-C 10Gbps, VRR, Aluminum Housing, ESD Protection, TAA Compliant
Features
Easily capture and record 4K at 60Hz HDMI live video with low latency via a USB-C device and up to 10Gbps date transfer, great for gaming, live streaming, training, meetings and more
4K120Hz / 4K144Hz Pass-through and 4K60Hz Capture
Experience lifelike gaming with 4K144Hz (PC) / 2K144Hz (PC) / 4K120Hz (console) / 1080p240Hz HDMI input and pass-through, seamless capture / recording HDMI signals through USB-C 10Gbps, resolution supports 4K60Hz / 4K30Hz HDR / 2K120Hz / 2K60Hz HDR / 1080p240Hz and so on, ensuring every detail is preserved with crystal clarity. Supports various resolution with downscaling and upscaling
Note: 1) macOS max capture: 4K30Hz 2) 4K144Hz only works in 48G bandwidth, monitor must support 4K144Hz 48G bandwidth, if the monitor only supports 4K144Hz DSC mode, it wont work with 4K144Hz
Live and Party Chat
Built-in two 4-pole 3.5mm jacks enable connection with a controller and headset for game console party mode, easily control game and chat volume, simultaneous party chat and live commentary recording. One 4-pole 3.5mm cable included, no additional purchase required
USB-C 10Gbps Connectivity
With USB-C 10Gbps connectivity, transfer your captured content quickly and efficiently to your computer for editing or streaming purposesUSB-C bandwidth:
Up to 10Gbps (USB-C)Video support USB-C:
Up to 4K60Hz/ 1080p240Hz/ 2560x1440120Hz/ 4K30Hz HDRHDMI bandwidth:
Up to FRL 6 (48Gbps)Video support HDMI input and Loopout:
Up to 4K120Hz / 4K144Hz (4:2:0)Audio input:
HDMI embedded audio and Mono mic input audioAudio support:
HDMI output up to 7.1ch, stereo audio up to 2chRecording mode:
Software compressionRecording Video Fomat:
RGB/YUY2/NV12/I420/P010/ MJPEG (USB 10Gbps)
MJPEG/YUY2/NV12/I420(USB2.0)Software compatibility(not complete list):
OBS Studio (Windows, Linux, MAC), AMCap (Windows), Potplayer (Windows)VLC (OS X, Linux), XSplit Broadcaster (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)Firmware update:
Feasible via USB-C portProduct:
Color:
Black
Housing:
Aluminum
Connector:
1x 19-pin HDMI, Type-A, female, Input
1x 19-pin HDMI, Type-A, female, Output
1x 4-pole 3.5mm jack for Headset
1x 4-pole 3.5mm jack for Gamepad
1x 24-pin USB-C 10Gbps, femaleEnvironmental conditions:
Operation Temperature:
32 to 104 degrees F
Storage Temperature:
-4 to 140 degrees F
Relative humidity:
20 to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
TAA compliant
Country of origin:
TaiwanItem Dimension (L"xW"xH")
7 x 2 x 5

Weight
1 lb

Warranty Information
3 years limited SpecificationPhysical CharacteristicsWeight (Approximate)0.56 lbProduct ColorBlackHeight0.8"Color Warranty3 YearInterfaces/PortsNumber of HDMI Inputs1Host InterfaceHDMIUSBYesNumber of HDMI Outputs1Audio Line InYesHDMIYesAudio Line OutYesUSB StandardUSB 2.0MemoryMemory TechnologyGDDR5General InformationBrand NameSIIGMarketing Information Easily capture and recording 4K60Hz resolution from any HDMI source such as Gaming PC (4K144Hz), Gaming console (4K120Hz), Media players or Set-top box while simultaneously viewing in the HDMI loopout for 4K144Hz / 4K120Hz, 1080p240Hz resolution, USB-C 10Gbps, VRR, Aluminum Housing, ESD Protection, TAA Compliant Features Easily capture and record 4K@60Hz HDMI live video with low latency via a USB-C device and up to 10Gbps date transfer, great for gaming, live streaming, training, meetings and more 4K120Hz / 4K144Hz Pass-through & 4K60Hz Capture Experience lifelike gaming with 4K144Hz (PC) / 2K144Hz (PC) / 4K120Hz (console) / 1080p240Hz HDMI input and pass-through, seamless capture / recording HDMI signals through USB-C 10Gbps, resolution supports 4K60Hz / 4K30Hz HDR / 2K120Hz / 2K60Hz HDR / 1080p240Hz and so on, ensuring every detail is preserved with crystal clarity. Supports various resolution with downscaling and upscaling Live and Party Chat Built-in two 4-pole 3.5mm jacks enable connection with a controller and headset for game console party mode, easily control game and chat volume, simultaneous party chat & live commentary recording. One 4-pole 3.5mm cable included, no additional purchase required Note: 1) macOS max capture: 4K30Hz; 2) 4K144Hz only works in 48G bandwidth, monitor must support 4K144Hz 48G bandwidth, if the monitor only supports 4K144Hz DSC mode, it won't work with 4K144Hz More from the Manufacturer Product TypeVideo Capturing DeviceProduct Name4K120Hz HDMI 2.1 Capture Device for Gaming and Streaming - 4K60Hz Capture - 4K 120Hz (Console) / 4K144Hz (PC) Loopout - USB-C 10Gbps - TAA CompliantManufacturerSIIG, IncManufacturer Part NumberCE-H28311-S1Packaged Quantity1TitleProduct TitleSIIG 4K120Hz HDMI 2.1 Capture Device for Gaming and Streaming - 4K60Hz Capture - 4K 120Hz/144Hz Loopout - USB-C 10Gbps - TAA Compliant (CEH28311S1)SoftwareOperating System Supported

• Video Game Streaming
• Video Game Capturing

Platform SupportedPCDevice SupportedMedia PlayerVideo Formats
