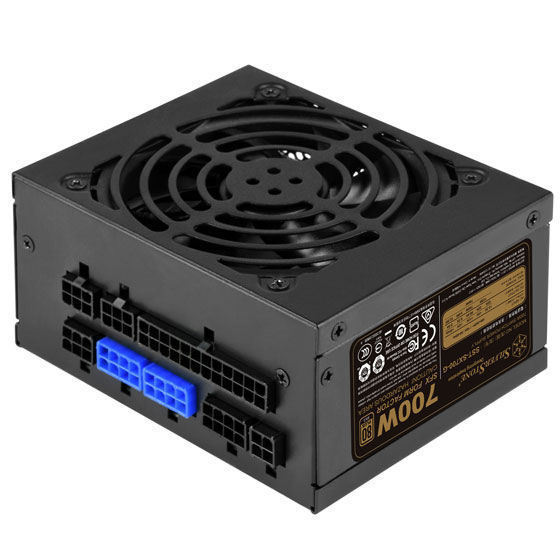

After pioneering full featured, high performance SFX power supplies in 2012, SilverStone has continued refining the segment it has created. The SX700-G is yet another evolutionary step toward perfecting this small form factor power supply category. It is more powerful without growing in size to achieve unprecedented power density levels of 882W, the highest of any SFX or ATX PSUs released thus far. This increase in power density was achieved through more advanced engineering and component selection so rather than added noise as is the norm for upping wattage output in power supplies, the SX700-G remains just as quiet as lower wattage models thanks to the use of 92mm FDB fan. For connectivity, the SX700-G is equipped with connectors a wide variety of system configurations with SilverStone’s famed short, flexible flat cables. Longer standard length cable set, the PP05-Lis also available for purchase separately for those users wishing to use this PSU in larger enclosures.
? Support standard SFX form factor
? Silent running 92mm FDB fan with 18 dBA minimum
? All Japanese capacitors
? High efficiency with 80 PLUS Gold certification
? Class-leading single +12V rail
? Strict ±3% voltage regulation and low ripple & noise
? 100% modular cables
? All cable with flexible flat arrays
Model No.SST-SX700-GMax. DC Output700WPower density882W per literLoad (Amps)/////Min.(Amps)0A0A0A0A0ARange (%)±3%±3%±3%±5%±10%Line Paint)Combined +3.3V & +5V110WCombined +12V700WInput Voltage90V ~ 264VInput Frequency Range47Hz ~ 63HzPFCActive PFC (PF>0.9 at full load)Efficiency87% ~ 90% at 20% ~ 100% loadingMTBF100,000 hoursOperating temperature0°C ~ 40°CProtectionOver Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature ProtectionConnectors1 x 24 / 20-Pin motherboard connector (300mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (400mm)
2 x 8 / 6-Pin PCIE connector (400mm / 150mm)
2 x 8 / 6-Pin PCIE connector (550mm / 150mm)
6 x SATA connector ("300mm / 220mm / 100mm" x 2)
3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm)
1 x 4-Pin Floppy connector (100mm)Cooling SystemSingle 92mm FDB fanForm factorSFXNoise Level18 dBA minimumDimension125 mm (W) x 63.5 mm (H) x 100 mm (D)
4.92" (W) x 2.5" (H) x 3.94" (D)Weight1.4 KgCertification80 PLUS GoldOther
Compatible with ATX12V v2.4
