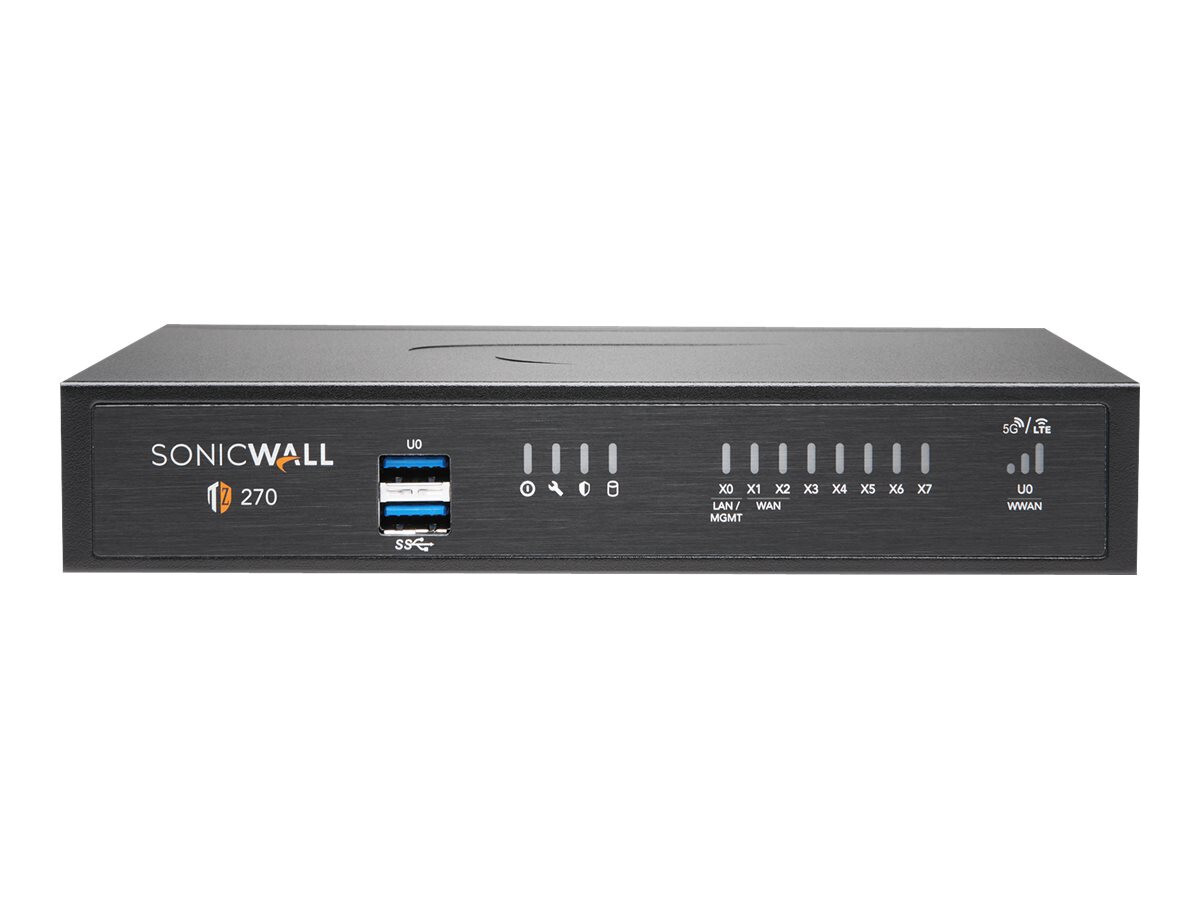

Main SpecificationsProduct DescriptionSonicWall TZ270 - High Availability - security applianceDevice TypeSecurity applianceForm FactorDesktopData Link ProtocolGigabit EthernetPerformanceFirewall throughput: 2 Gbps ¦ Threat prevention throughput: 750 Mbps ¦ Application throughput: 1 Gbps ¦ IPS throughput: 1 Gbps ¦ Anti-malware throughput: 750 Mbps ¦ TLS/SSL inspection and decryption throughput: 300 Mbps ¦ VPN throughput (IPSec): 750 Mbps ¦ Connection rate: 6000 connections per secondCapacityVirtual interfaces (VLANs): 64 ¦ SSL VPN licenses: 1 (maximum 50) ¦ VPN tunnels (site-to-site): 50 ¦ IPSec VPN clients: 5 (maximum 200) ¦ SPI connections: 750000 ¦ DPI connections: 150000 ¦ DPI SSL connections: 25000 ¦ Single Sign-On (SSO) users: 1000 ¦ Manageable access points: 16VoIP ProtocolsSIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5PowerAC 120/230 V (50/60 Hz)Dimensions (WxDxH)7.5 in x 5.3 in x 1.4 inWeight28.92 ozGeneralDevice TypeSecurity applianceWidth7.5 inDepth5.3 inHeight1.4 inWeight28.92 ozExpansion / ConnectivityInterfaces6 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 (WAN) ¦ 2 x USB 3.0 - Type A ¦ 1 x console - RJ-45MiscellaneousMTBF51.1 yearsCompliant StandardsFCC Class B certified, UL, TUV GS, C-Tick, BSMI, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FIPS 140-2 Level 2, EMC, RoHS, ICES Class B, KCC, WEEE, REACH, LVD, VCCI Class B, MSIP, CoC, Common CriteriaNetworkingForm FactorDesktopConnectivity TechnologyWiredData Link ProtocolGigabit EthernetNetwork / Transport ProtocolTCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCPRouting ProtocolOSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR)Remote Management ProtocolSNMP 2, SNMP 3, HTTP, HTTPS, SSH, CLIPerformanceFirewall throughput: 2 Gbps ¦ Threat prevention throughput: 750 Mbps ¦ Application throughput: 1 Gbps ¦ IPS throughput: 1 Gbps ¦ Anti-malware throughput: 750 Mbps ¦ TLS/SSL inspection and decryption throughput: 300 Mbps ¦ VPN throughput (IPSec): 750 Mbps ¦ Connection rate: 6000 connections per secondCapacityVirtual interfaces (VLANs): 64 ¦ SSL VPN licenses: 1 (maximum 50) ¦ VPN tunnels (site-to-site): 50 ¦ IPSec VPN clients: 5 (maximum 200) ¦ SPI connections: 750000 ¦ DPI connections: 150000 ¦ DPI SSL connections: 25000 ¦ Single Sign-On (SSO) users: 1000 ¦ Manageable access points: 16Status IndicatorsPower, test mode, link/activity, SSD activity, secureFeaturesFirewall protection, NAT support, VPN support, PAT support, VLAN support, Stateful Packet Inspection (SPI), DoS attack prevention, content filtering, port mirroring, IPv6 support, antivirus analysis, Deep Packet Inspection (DPI), DDos attack prevention, anti-spam protection, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), Jumbo Frames support, DHCP server, bandwidth control, IPv4 support, Common Access Card (CAC) reader support, DHCP relay, 3G/4G USB Dongle Support, NetFlow, Single Sign-On (SSO) support, VLAN trunking, SD-WAN supportEncryption AlgorithmDES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AESAuthentication MethodRADIUS, LDAP, XAUTH authenticationPowerPower DeviceExternal power adapterVoltage RequiredAC 120/230 V (50/60 Hz)Power Consumption Operational16.84 WattPower Provided36 WattSoftware / System RequirementsOS ProvidedSonicOS 7.0Environmental ParametersMin Operating Temperature32 °FMax Operating Temperature104 °FHumidity Range Operating5 - 95% (non-condensing)Dimensions & Weight (Shipping)Shipping Weight3.11 lbsIP TelephonyVoIP ProtocolsSIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
