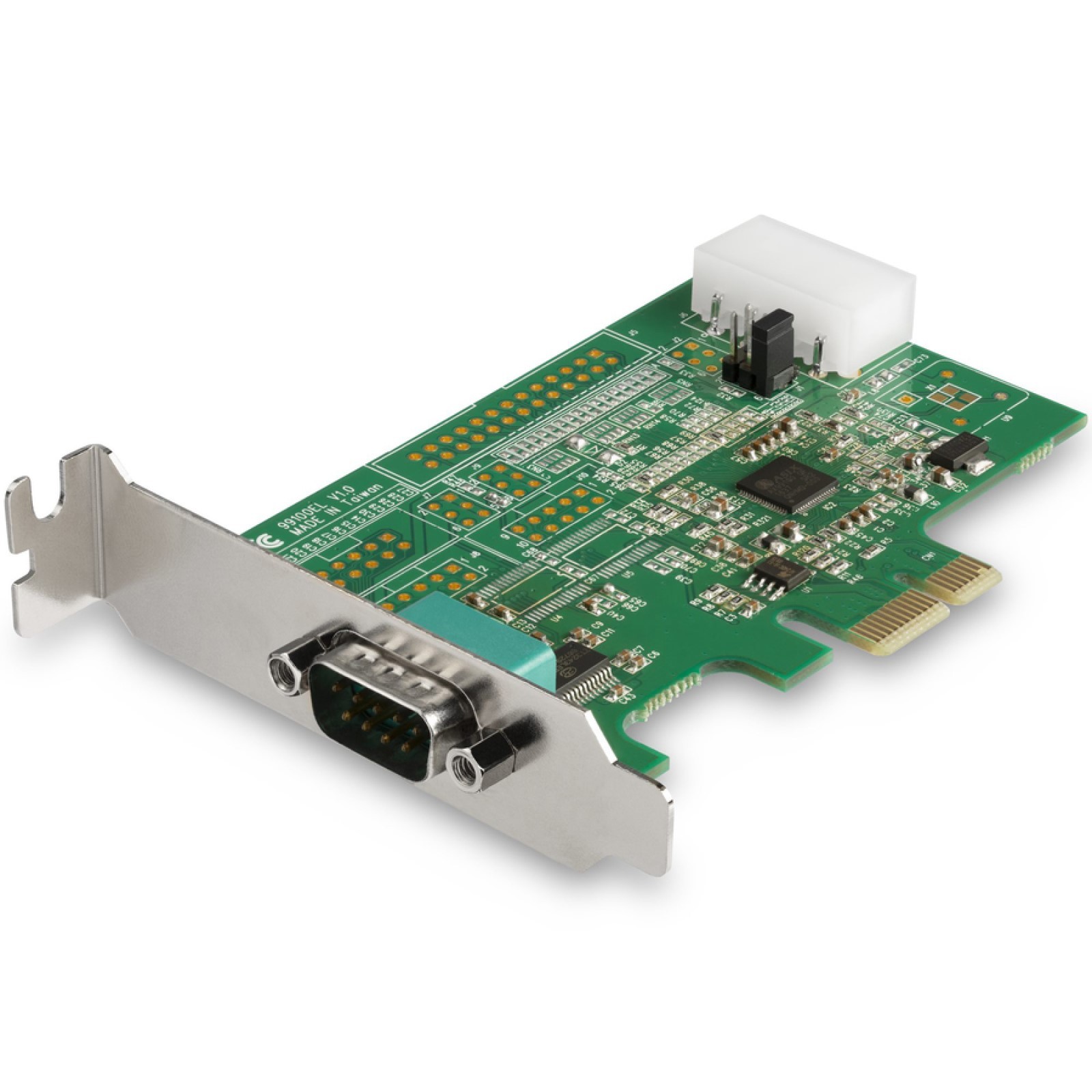

StarTech 1 Port RS232 Serial Adapter Card with 16950 UART PCIe to Serial Adapter Brand: StarTech UPC: 0065030881159 Mfr Part #: PEX1S953LP
General Information
This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
- Compatible with industry standard 16950 UART
- Supports max baud rate of up-to 921.4Kbps
- Provides 5/12V power output on Pin 9 when external power is connected
- 128-byte depth FIFO per transmitter and receiver
- Supports 9, 8, 7, 6, 5 data bits
- Asix AX99100 chipset
- PCI Express 1.1 compliant
PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
?
Technical Information Host Interface: PCI Express x1 UART Type: 16950 Platform Supported: PC Platform Supported: Linux
?
Physical Characteristics Form Factor: Plug-in Card Card Height: Low-profile Height: 5.9" Width: 2.6" Length: 3.9" Weight (Approximate): 1.60 oz
1-Port PCI Express Serial Card with 16950 UART - Low-Profile 1 x Full-Profile Bracket 1 x User Manual Environmentally Friendly: Yes Environmental Certification: WEEE Environmental Certification: REACH Environmental Certification: RoHS Country of Origin: Taiwan
?
