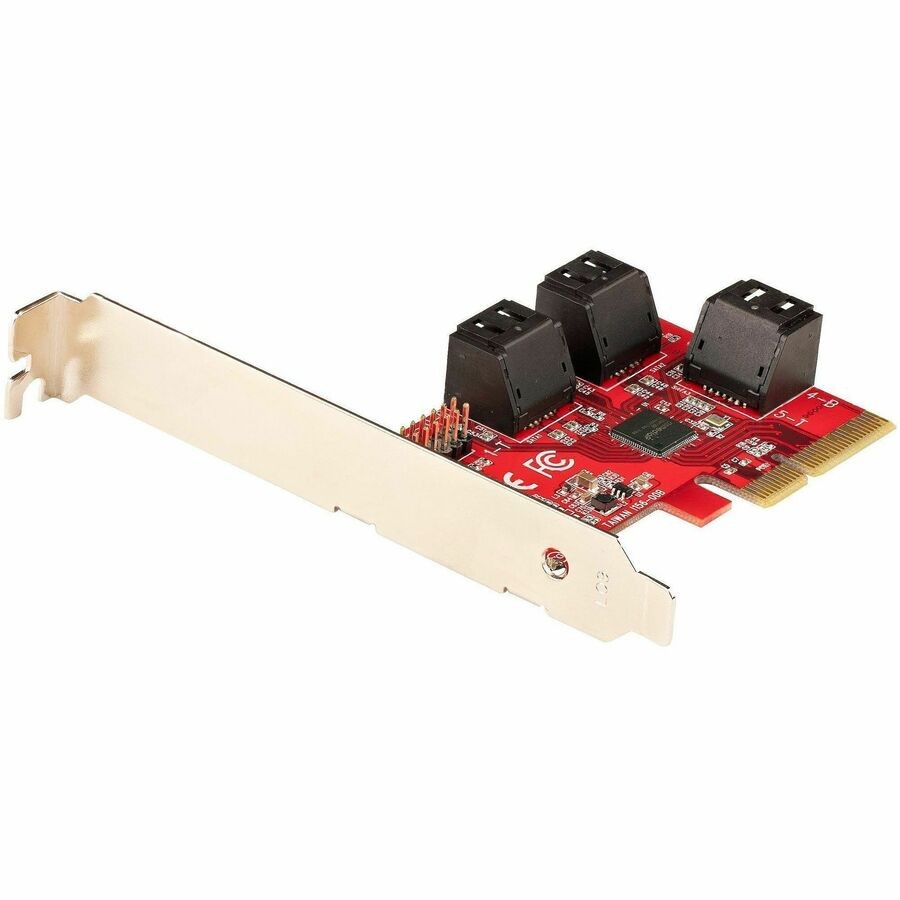

StarTech 6 Port PCIe SATA Expansion Card 6Gbps 6P6GPCIESATACARD Brand: StarTech UPC: 0065030893749 Mfr Part #: 6P6GPCIESATACARD
General Information
This 6-port SATA III (6Gbps) controller enables you to add six SATA 6Gbps hard drives (HDDs) or solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.
ASM1166 to Deliver 6-Port SATA 6Gbps Performance
Featuring the ASM1166 controller, this SATA card enables the connection of six high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via six individual SATA ports located on the card (SATA cables sold separately).
Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7,8,10), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.
Hassle-Free Installation
The SATA controller card features plug-and-play installation and can be installed in full-profile and low-profile computer systems with a full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft) , RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
6P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.
?
Technical Information Host Interface: PCI Express x4 Controller Type: Serial ATA/600 Operating System Supported: Windows 7 Operating System Supported: Windows 8 Operating System Supported: Windows 8.1 Operating System Supported: Windows 10 Operating System Supported: Windows Server 2012 R2 Operating System Supported: Windows Server 2016 Operating System Supported: Windows Server 2019 Operating System Supported: Linux 2.6.32 Operating System Supported: Windows 11 Operating System Supported: Mac OS X 10.10 Yosemite Operating System Supported: Mac OS X 11.0 Big Sur
?
Physical Characteristics Height: 0.6" Width: 2.1" Length: 3.2" Weight (Approximate): 2.65 oz
PCIe SATA Card Full-Profile Bracket (Installed) Low-Profile Bracket Quick-Start Guide Platform Supported: PC Environmentally Friendly: Yes Environmental Certification: RoHS Environmental Certification: WEEE Country of Origin: Taiwan
?
Warranty Limited Warranty: 2 Year Store Policies
