Dock your USB 3.0 equipped Mac or Windows laptop withsupport for several dual monitor configurations using the included video adapters
Connect and charge your USB devices with 5x USB 3.0 ports,including two Fast-Charge USB ports
Save space on your desktop by placing the dock in a verticalorientation with the included dock stand
Compatibility
Windows 10 logo
Windows 8 logo
Windows 7 logo
macOS Mojave (10.14) logo
macOS Sierra (10.12) logo
Chrome OS logo
Mac OS X El Capitan (10.11) logo
macOS Catalina (10.15) logo
macOS Big Sur (11.0) logo
Windows® XP SP3 (32-bit), Vista, 7, 8, 8.1, 10
macOS 10.6 - 10.12, 10.14 - 10.15, 11.0
Chrome OS™ v55+
Specifications
Warranty Information
Warranty
3 Years
Connector(s)
1 - Connector Type(s)
DVI-D (25 pin)
DVI-I (29 pin)
2 - Connector Type(s)
USB 3.0 A (Fast-Charge, 9 pin)
3 - Connector Type(s)
USB Type-A (9 pin) USB 3.0 (5 Gbps)
1 - Connector Type(s)
RJ-45
3.5 mm Mini-Jack (4 Position)
USB Type-B (9 pin) USB 3.0
Environmental
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
5~85% RH
Hardware
4K Support
No
Fast-Charge Port(s)
Yes
Displays Supported
2
Bus Type
USB 3.0
Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB Battery Charging Specification Rev. 1.2
USB 3.0 - Hub ports support USB 2.0/1.1backward-compatibility
Chipset ID
DisplayLink - DL-3900
Genesys Logic - GL3520
VIA/VLI - VL817
Indicators
1 - LED Indicators
Power
Packaging Information
Package Height
3.7 in [95 mm]
Package Length
7.3 in [18.6 cm]
Shipping (Package) Weight
2.2 lb [1.0 kg]
Package Width
10.0 in [25.5 cm]
Performance
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Analog Resolutions
2048x1152 (VGA)
Maximum Digital Resolutions
2048x1152 (Dual-Link DVI/HDMI)
Lower resolutions are also supported.
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
Compatible Networks
10/100/1000 Mbps
Auto MDIX
Yes
Full Duplex Support
Yes
Physical Characteristics
Weight of Product
10.1 oz [285 g]
Color
Black & Silver
Material
Aluminum and Plastic
Cable Length
39.4 in [100 cm]

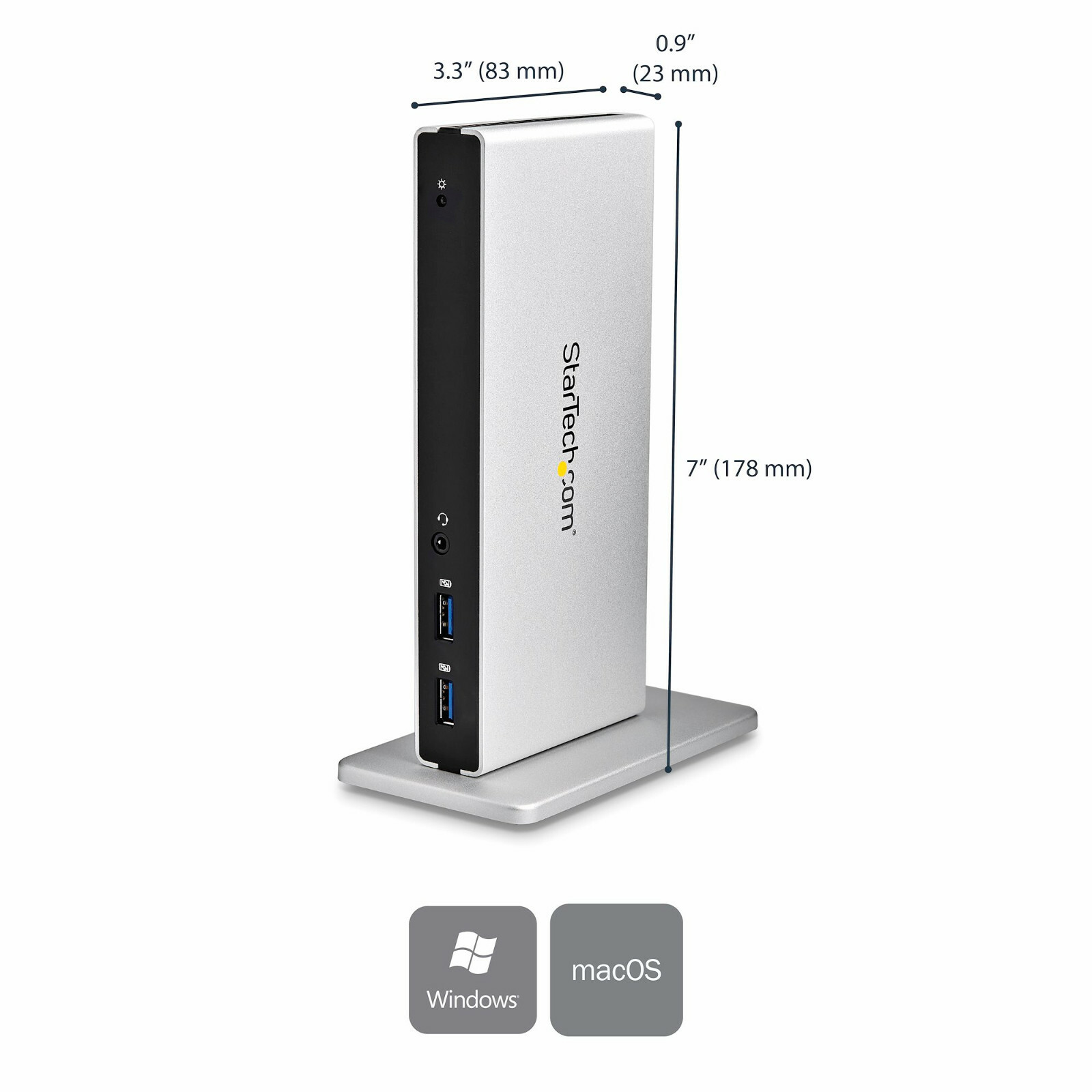

Product Length
3.3 in [83 mm]
Product Width
0.9 in [23 mm]
Product Height
7.0 in [17.8 cm]
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
0.8 A
Output Voltage
12V DC
Output Current
2 A
Center Tip Polarity
Positive
Plug Type
H
Power Consumption (In Watts)
24W
Software
OS Compatibility
Windows® XP SP3 (32-bit), Vista, 7, 8, 8.1, 10
macOS 10.6 - 10.12, 10.14 - 10.15, 11.0
Chrome OS™ v55+
Special Notes / Requirements
System and Cable Requirements
USB 3.0 port interface and USB 3.0 cable to connect theLaptop Docking Station to a host computer (USB 3.0 host cable included)
Note
HDMI and VGA adapters included
VGA adapter can only be used on the DVI-I (29-pin) port
The DVI-I connector supports DVI-I signaling (digital andanalog)
This USB docking station is not intended for graphicalintensive applications, such as gaming
What's in the Box
1 - Included in Package
USB 3.0 Laptop Docking Station
1m USB 3.0 Cable
4 - Included in Package
Rubber Feet
1 - Included in Package
Stand
2 - Included in Package
Stand Screws
1 - Included in Package
Screwdriver
DVI to VGA Adapter
DVI to HDMI Adapter
Universal Power Adapter (NA/JP, EU, UK, ANZ)
Driver CD
Instruction Manual
