StarTech PCI Express Serial Card StarTech PCI Express Serial Card

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: PCIe Serial Card 1 x Low-Profile Bracket 1 x Quick-Start Guide

Environmentally Friendly: Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: Taiwan

Product Description

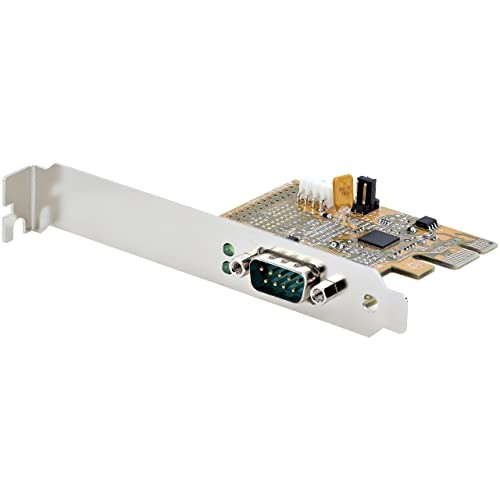

This item is brand-new, factory PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card, 16C1050 UART, Standard and Low Profile Brackets, COM Retention, Windows/Linux (11050-PC-SERIAL-CARD)

• PCIE TO SERIAL: Connect a serial RS232 (DB9) device to a computer with this PC serial card. Features support for high performance 16C1050 UART. Monitor activity with the built-in LED status lights on the PCI express DB9 card
• DEVICE COMPATIBILITY: Use this serial interface card to connect with barcode readers/scanners, receipt printers, scales, PLCs, medical devices, etc. The UART PCIe card supplies 5V or 12V power over pin 9. Low-profile bracket is included
• APPLICATIONS: This card is ideal for IT applications such as server rooms, industrial control/automation, logistics, and laboratories. Continue using legacy hardware with this RS232 PCIe card. DB9 port accepts screw locking serial cables
• PC SERIAL CARD SPECS: 16C1050 UART | Max Baud 921.6 Kbps | 256 Byte FIFO | COM Retention | Supports Windows and Linux | Asix AX99100 Chipset | Odd/Even/Mark/Space/None Parity Modes | 5/6/7/8/9 Data Bits | PCIe 2.0 x1 | Low-profile Bracket Included
• THE IT PRO'S CHOICE: Designed and built for IT Professionals, this PCIe to RS232 card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance

• Brand: StarTech
• Item model number: 11050-PC-SERIAL-CARD
• Operating System: Linux 2.6.13 and older. LTS Versions Only, Windows 7, 8, 8.1, 10, 11, Windows Server 2016, 2019
• Item Weight: 0.16 ounces
• Product Dimensions: 2.6 x 2.6 x 0.7 inches
• Item Dimensions LxWxH: 2.6 x 2.6 x 0.7 inches
• Color: Yellow
• Manufacturer: STARTECH.COM

1-PORT PCI EXPRESS SERIAL CARD, PCIE TO RS232 (DB9) SERIAL CARD, 16C1050 UART, S

Package Contents:

• PCIe Serial Card
• 1 x Low-Profile Bracket
• 1 x Quick-Start Guide

SpecificationPhysical CharacteristicsForm FactorPlug-in CardWeight (Approximate)0 ozCard Warranty Information 2-years by , including free lifetime 24/5 multi-lingual technical assistance. Limited Warranty2 YearInterfaces/PortsNumber of Serial Ports (External)1General InformationBrand Name
