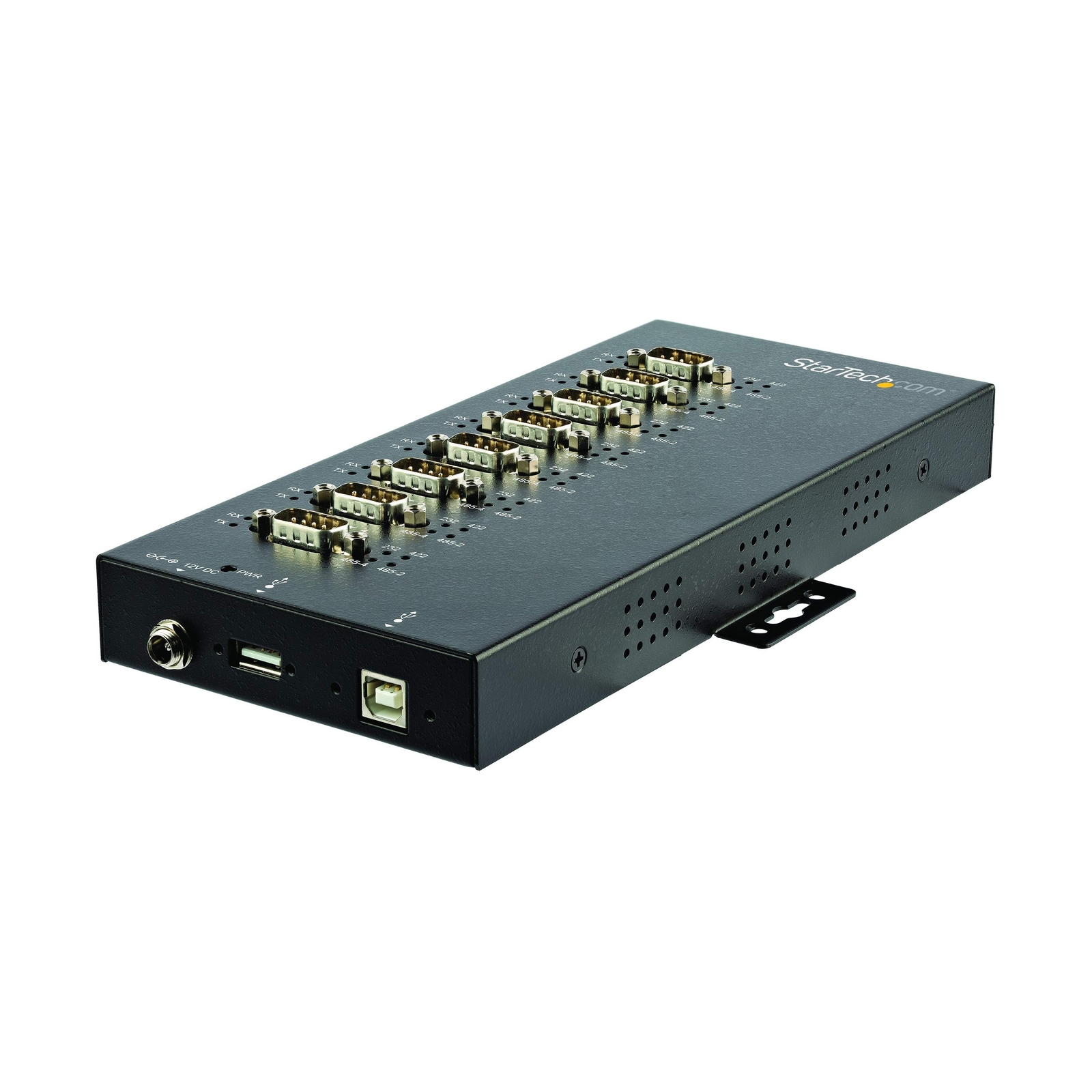

StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection (ICUSB234858I)
Product Details Size: 8-port
Brand: StarTech.com
MPN: ICUSB234858I
UPC: 065030878579
EAN: 0065030878579
- Brand
- Color: Black
- Hardware Interface: USB
- Special Feature: Powered
- Compatible Devices: Scanners, Monitors, Laptops
- Global Trade Identification Number: 79
- UPC: 065030874663 065030878579
- Brand Name: StarTech.com
- Manufacturer: StarTech.com
- Material Type: Alloy Steel
- Color: Black
- Item Weight: 1.52 Pounds
- Item Dimensions L x W x H: 8.6"L x 5"W x 1"H
- Data Transfer Rate: 921 Megabits Per Second
- Number of Ports: 8
- Operating System: Windows® 7, 8, 8.1, 10, 11 Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022 macOS 10.9 to 10.15, 11.0, 12.0, 13.0 Linux 2.4.x and up - LTS Versions only
- Compatible Devices: Scanners, Monitors, Laptops
- Total Usb Ports: 2
- Hardware Connectivity: USB
- Additional Features: Powered
- RUGGED & RELIABLE: This industrial metal USB to serial adapter hub adds 8 RS-232/422/485 ports & 1 USB 2.0 port w/ 15kV ESD surge protection (level 4), IP30 rating & locking connectors on all ports
- 8 SERIAL PORTS: The ports on this USB to serial converter can be individually configured to RS232, RS422 or RS485 (2wire/4wire) at baud rates up to 921.6Kbps for devices like barcode scanners/printers
- MOUNTING OPTIONS: This metal mountable 8-port serial hub w/ 6ft (1.8 m) screw-lock USB cable incl. installs securely to a desk, wall or DIN rail using the built-in mounting ears & incl. DIN brackets
- FLEXIBLE POWER: This serial hub can be powered with either the 12V screw-locking power adapter or the 5V USB input, while each serial port (pin 9) can be set to 5V, 12V (power adapter required), or 0V
- WIDELY COMPATIBLE: To connect industrial grade equipment to any terminal, the USB to multiple DB9 male serial converter supports current and legacy Windows, Linux, macOS, as well as embedded platforms
Add extra COM ports to your laptop or desktop computer, quickly and easily.This USB to RS232/422/485 serial adapter lets you connect to your serialdevices through an external USB port.Supports multiple serial protocolsTheversatile serial adapter converts a single USB port into eightRS232/RS422/RS485 serial ports, enabling you to connect, monitor, and controla wide range of serial devices, such as sensors, barcode scanners, and LEDsignage. It supports four operating modes, including RS232, RS422, 4-wire and2-wire RS485.Ideal for harsh environmentsWith its rugged IP30-rated metal hubhousing, the serial adapter is built to meet the extreme demands of harsh andmission-critical environments. It provides 15 kV ESD protection, which helpsto reduce downtime in industrial environments where communications lines aremore prone to noise emissions or sudden spikes in voltage.The serial adapteroffers flexible mounting options, with a built-in wall-mounting bracket andincluded DIN rail mounting kit. It also features a screw-locking hostconnection plus a screw-locking USB-B connector on the included USB cable, toprevent accidental disconnections.Fast data transfersThe serial adapter isequipped with high-speed UARTs, providing fast data rates of up to 921Kbps inRS232/422/485 operating modes.The ICUSB234858I is backed by a StarTech.
