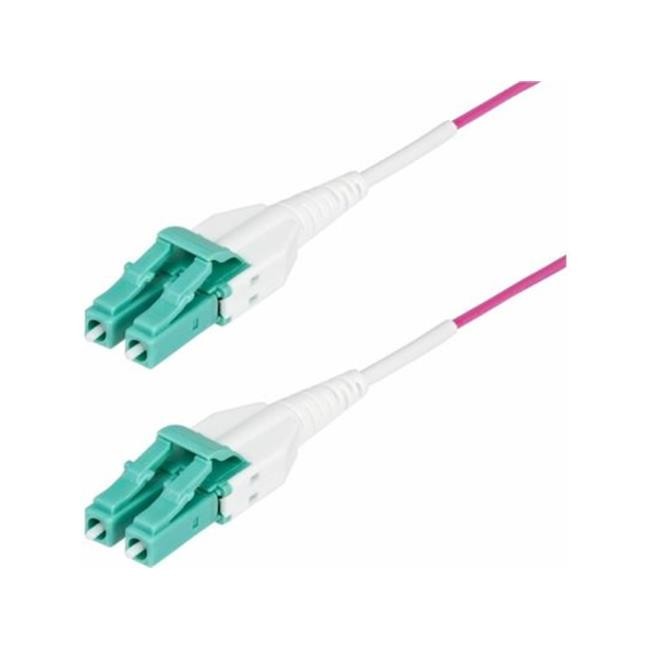

Startech OM4RLCLC2M 2m OM4 Multimode Fiber CableDescriptionDescription

2m (6.6ft) OM4 LC/LC UPC OM4 LOMMF cable supports 1/10/40/100 Gbps duplex connections - Erika Violet is TIA-standardized for clear OM4 fiber identification; Compact unboots LC connector is suitable for high-density installations; 50/125 m fiber core/cladding w/OFNR Riser Rated jacket - Optimized for 2000MHz.km at 850nm w/VCSEL; Facilitate high-bandwidth multimode transmissions between servers and Storage Area Networks (SANs) - Cord O.D.: 1.6mm; Temp Range: -20 to 60 C (-4 to 140 F).

Features. OM4 multimode fiber cable is immune to EMI and supports up to 100Gbps. Erika Violet jacket is TIA-standardized for OM4 avoiding OM3/OM4 confusion with Aqua cables; Compact unboots design enhances airflow & access in dense installations. QUALITY CONSTRUCTION: LC/LC connectors with UPC polished ends significantly improves loss over PC polish. Robust molded strain reliefs minimize wear from bending; Protective Aramid yarn for increased tensile strength. SAFETY AND RELIABILITY: Each cable is individually tested for guaranteed OM4 performance and includes a test report. OFNR riser-rated cable jacket minimizes flame spread between floors in riser spaces; Attenuation value of 3dB/km meets TIA standards. WIDE COMPATIBILITY: Supports 1/10/40/100 Gbps full duplex transmission; Backward compatible with OM3. For high-density network applications such as SANs data servers fiber switches and LC-based SFP/SFP Plus transceivers. SPECS: 2-meter (6.6-foot); Color: Erika Violet (OM4); LC/LC UPC; 50/125 m; 850nm/1300nm LED/VCSEL. Modal Bandwidth: 2000MHz/km at 850nm; OFNR (Riser) Jacket; Cable OD: 1.6mm; Min Bend Radius: 7.5mm (0.29in)Specifications
