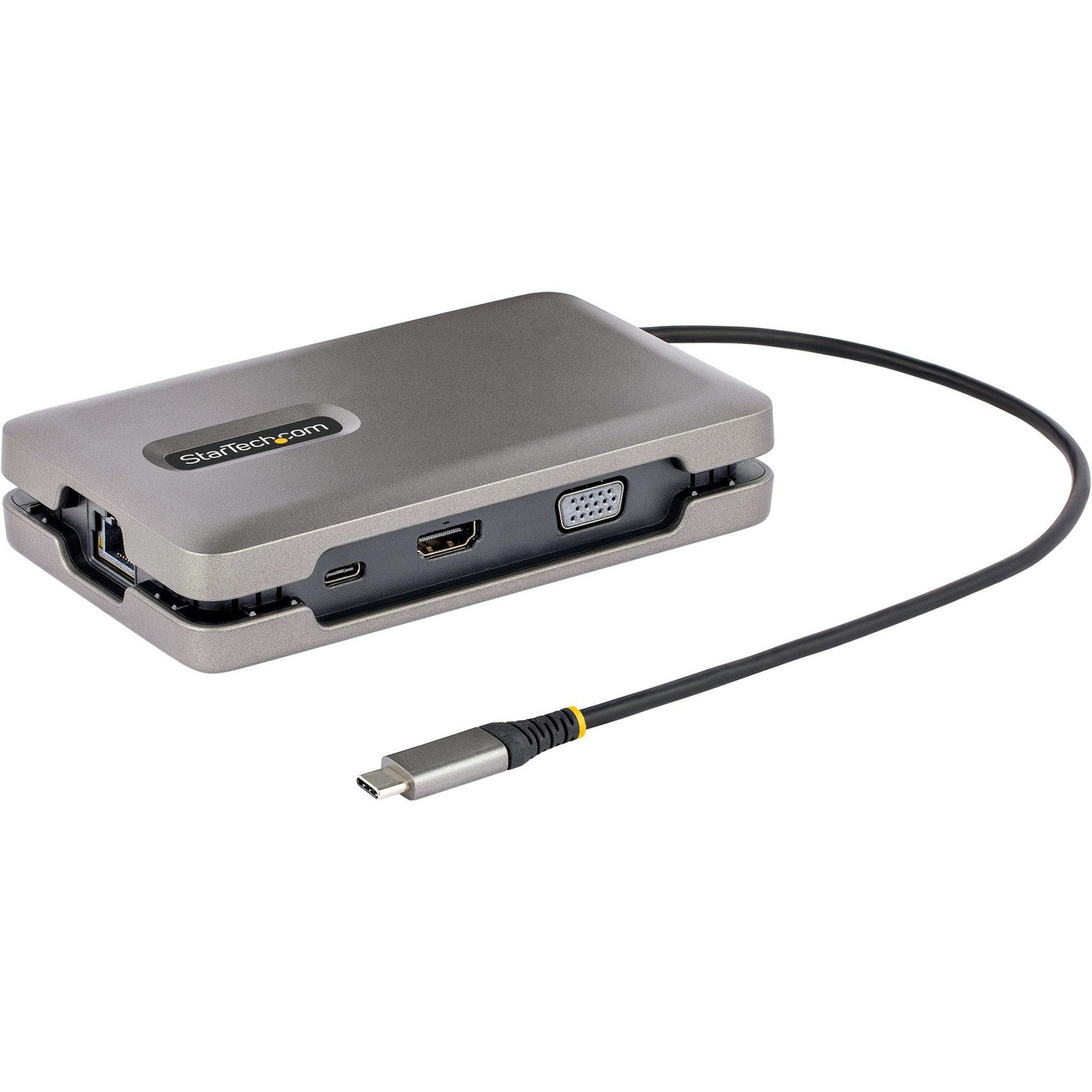

Startech Usb-c Multiport Adapter W/usb-c Dp Alt Mode Video/4k Hdmi/vga Startech Usb-c Multiport Adapter W/usb-c Dp Alt Mode Video/4k Hdmi/vga

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: Docking Station 1 x Quick-Start Guide

TAA Compliant: Yes

Environmentally Friendly: Yes

Compatibility: Compatibility Products: Mini dock compatible w/USB-C 3/4/USB4 laptops from HP/Dell/Lenovo; Windows/Android/Linux/ChromeOS - For optimal video performance use with Intel 11th & 12th gen+ laptop CPUs

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Brand Compatibility:

Product Description

This item is brand-new, factory USB-C Multiport Adapter with USB-C DP Alt Mode Video Output/4K HDMI 2.0/VGA, USB-C Dual Monitor Docking Station, 100W PD Pass-Through, USB Type C Mini Dock/MST Adapter Hub (DKM31C3HVCPD)

• 7-IN-1 MULTIPORT ADAPTER: Single or Multi Monitor DP 1.4 Alt Mode, HDMI 2.0b, VGA, USB-C port with DP Alt Mode for video or 10Gbps Data, plus 2 x USB-A 3.2 Gen 2 10Gbps hub, 100W USB PD Pass-Through (88W laptop charging), Gigabit Ethernet
• USB-C DOWNSTREAM PORT WITH VIDEO OUTPUT: Industry's first non-Thunderbolt adapter features a 10Gbps USB-C port w/ DP Alt Mode; Connect a portable USB-C monitor or desktop monitor w/USB-C Display Adapter as an extended display, or USB-C peripheral
• FLEXIBLE VIDEO: 1x 4K 60Hz HDMI or USB-C DP Alt Mode video, or 2x 4K 30Hz HDMI + USB-C (discrete DP 1.4 GPU) - 1x 4K 30Hz HDMI or USB-C, or 4K 30Hz + 1080p 60Hz in dual monitor (integrated DP 1.4 GPU) - 1x 4K 30Hz HDMI or USB-C, or 2x 1080p (DP 1.2 GPU)
• EXTRA LONG CABLE: 10" (25cm) cable for extended reach reducing port/connector strain on 2-in-1 devices like Surface Pro 7/8, iPad Pro, HP Elite X2 or laptops on riser stands; Hideaway cable design stores attached cable during travel
• COMPATIBILITY: Mini dock compatible w/USB-C 3/4/USB4 laptops from HP/Dell/Lenovo; Windows/Android/Linux/ChromeOS - For optimal video performance use with Intel 11th & 12th gen+ laptop CPUs

• Product Dimensions: 5.7 x 3.3 x 1.1 inches
• Item Weight: 6 ounces

This USB-C Multiport Adapter with DisplayPort 1.4 (Alt Mode) and MST, features three video output options (HDMI, VGA and USB-C video) to support a single or multi-monitor workstation. The USB-C video port supports USB 3.2 Gen 2 (10Gbps) with 10W of power, to connect a USB-C monitor or a USB-C peripheral. In addition, the Docking Station also features a 2-Port USB-A 3.2 Gen 2 (10 Gbps) Hub, a Gigabit Ethernet port, and providing advanced charging through a USB Power Delivery (PD) 3.0 pass-through port. The Multiport Adapter connects to a laptop's USB-C or Thunderbolt 3/4 port, using the integrated 10-inch (25.4cm) USB-C cable. The USB Type-C Docking Station features three video output options to turn your laptop into a single or multi-monitor workstation. The HDMI port provides HDR video with resolutions up to 4K 60Hz. The VGA port provides analog video with resolutions up to 1080p 60Hz. The USB-C port provides the industry's first downstream full featured video or data (10Gbps) USB-C port that supports DP Alt Mode video or peripheral connection, on a non-Thunderbolt adapter. This Docking Station utilizes MST to obtain video versatility. Video performance is based upon the number of attached monitors and the host computer's video controller. A laptop with a discrete GPU is recommended for maximum performance. The USB 3.2 hub features two USB-A ports and one USB-C port, for connecting your USB devices. The downstream USB-C port can be used to connect a monitor, or USB-C peripheral with up to 10W of power.

Package Contents:

• Docking Station
• 1 x Quick-Start Guide

SpecificationPower DescriptionMaximum Power Supply Wattage100 WPhysical CharacteristicsWeight (Approximate)6 ozProduct ColorSpace GrayHeight1.10"Color Warranty3 YearInterfaces/PortsUSB Type-C DetailUSB Type-C (24 pin) USB Power Delivery OnlyNumber of RJ-45 Ports1Number of USB Type-C Ports1DisplayPort Version1.4Number of USB 3.2 Gen 2 Type-A Ports2USB Type-CYesVGAYesNetwork (RJ-45)YesHDMI Version2.0bNumber of HDMI Ports1Host InterfaceUSB 3.2 (Gen 2) Type CDisplayPortYesUSB Type-AYesHDMIYesGeneral InformationBrand Name
