Maintenance kit part number 209394-0001-s

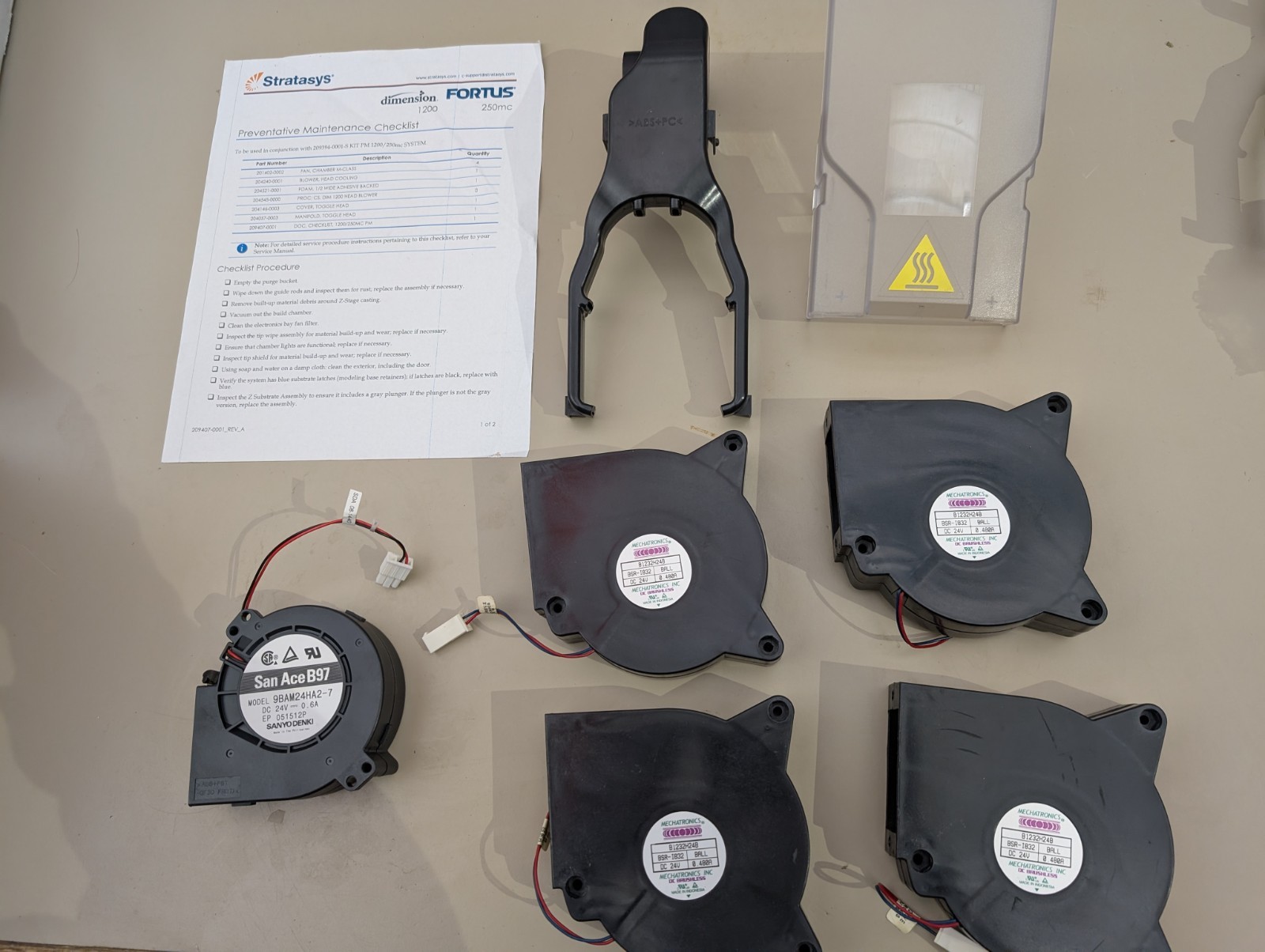

Includes
4x MECHATRONICS
B1232H24B
BSR-1832
BALL
DC 24V
0.480A
MECHATRONICS INC
OC BRUSHLESS
CNUS A
MADE IN INDONESIA
▼
1x
4-40
San Ace B97
MODEL 9BAM24HA2-7
DC 24V 0.6A
EP 051512P
SANYO DENKI
Made in The Philippines
1x duct
1x clear cover
Paperwork says:
dimension.
strong
1200
250mc
Preventative Maintenance Checklist
To be used in conjunction with 209394-0001-5 ΚΙΤ PM 1200/250mc SYSTEM.
Part Number
Description
201402-0002
FAN CHAMBER M-CLASS
204240-0001
BLOWER, HEAD COOLING
204521-0001
FOAM 1/2 WIDE ADHESIVE BACKED
204545-0000
PROC: CS, DIM 1200 HEAD BLOWER
204146-0003
COVER, TOGGLE HEAD
204057-0003
MANIFOLD TOGGLE HEAD
209407-0001
DOC. CHECKLIST, 1200/250MC PM
Note: For detailed service procedure instructions pertaining to this checklist, refer to your Service Manual.
Checklist Procedure
Empty the purge bucket.
Wipe down the guide rods and inspect them for rust; replace the assembly if necessary.
Remove built-up material debris around Z-Stage casting.
Vacuum out the build chamber.
Clean the electronics bay fan filter.
Inspect the tip wipe assembly for material build-up and wear, replace if necessary.
Ensure that chamber lights are functional; replace if necessary.
Inspect tip shield for material build-up and wear, replace if necessary.
Using soap and water on a damp cloth: clean the exterior, including the door.
Verify the system has blue substrate latches (modeling base retainers); if latches are black, replace with blue.
Inspect the Z Substrate Assembly to ensure it includes a gray plunger. If the plunger is not the gray version, replace the assembly.
209407-0001 REV A
SDA 08-
1 of 2
