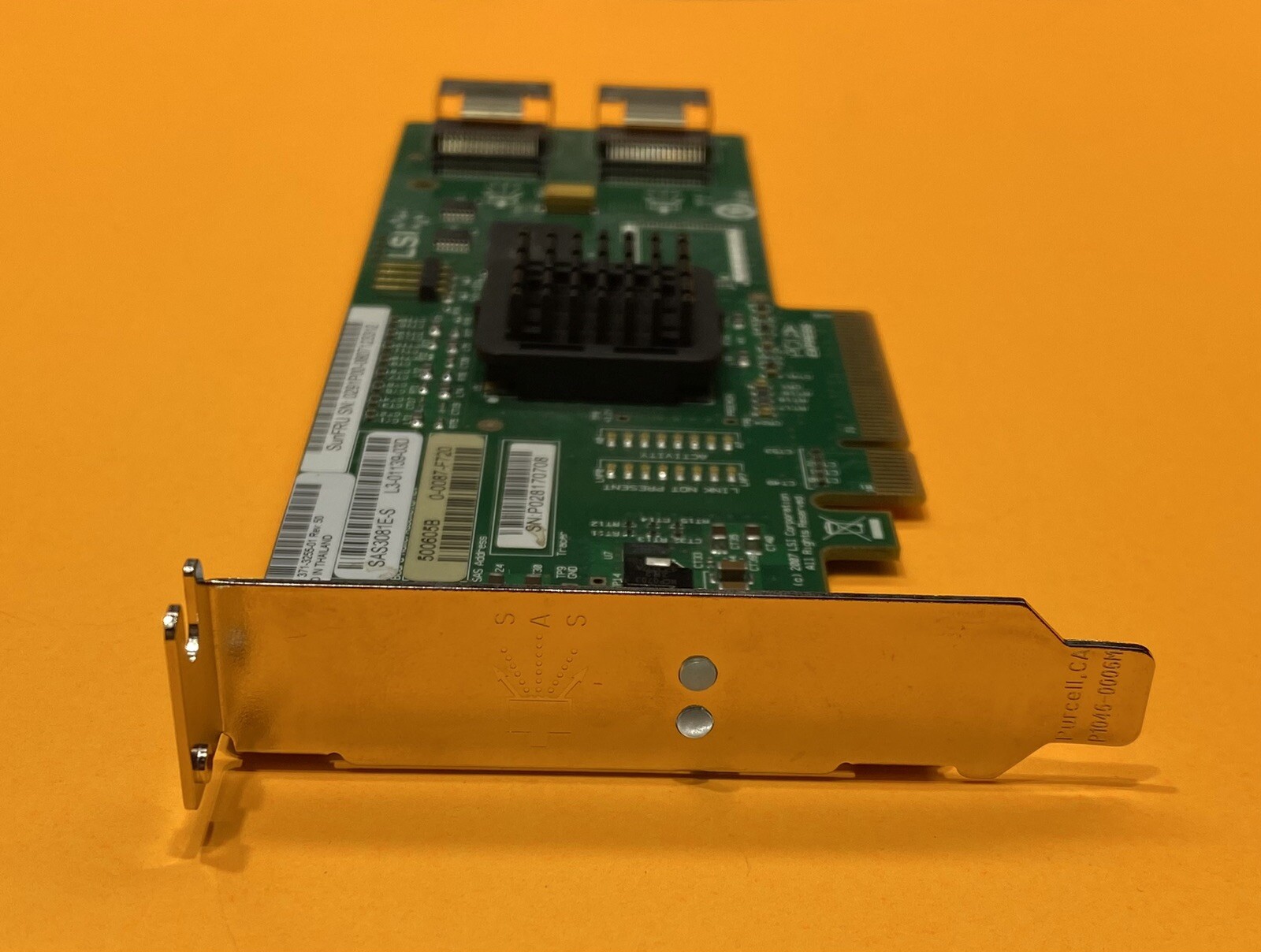

Sun 371-3255 8-Port 3Gbps SAS RAID Controller PCI-E SG-PCIE8SAS-Z - LP Bracket
Price: US $15.00
Sun Microsystems 8-Port 3Gbps Serial Attached SCSI HBA Part# 371-3255Option# SG-PCIE8SAS-ZManufacturer: Sun MicrosystemsDescription: 8-Port 3Gbps SAS PCI-E HBA CardModel: LSI SAS3081E-S (L3-01139-03C)Condition: Clean Working Pull, Tested Compatible Sun / Oracle Servers:
Sun Fire X4240
Sun Fire X4250
Sun Fire X4270
Sun Fire X4275
Sun Fire X4440
Sun Fire X4450
Manufacturer Notes:
The minimum Solaris operating system is Solaris 10 6/06 x64.
Install the SAS3081E in Ultra 40 M2 Slot PCI-E0.
Connect the Red SAS cable to Port 0 and the Ultra 40 M2 Lower Disk Backplane.
Connect the Orange SAS cable to Port 1 and the Ultra 40 M2 Upper Disk Backplane.
Option SG-PCIE8SAS-Z includes SAS Cable Kit 371-2349.
Cable Kit 371-2349 includes an LED cable and 250 mm and 400 mm SAS Cables.
Option SG-PCIE8SAS-Z does not include documentation.
The SAS3081E supports SAS and SATA.
The 371-3255-03 includes Solid State Drive BIOS and firmware support.(WO_40963)
Seller Notes:
You are purchasing the card only.
Cables are not included with this purchase.
371-2253 was replaced by 371-3255 and later 7064052.
