Sun Fire X4500 System Board (PCI-X/PCIe I/O Board) - SunFRU PN 501-7102-05 - Tested Power Only

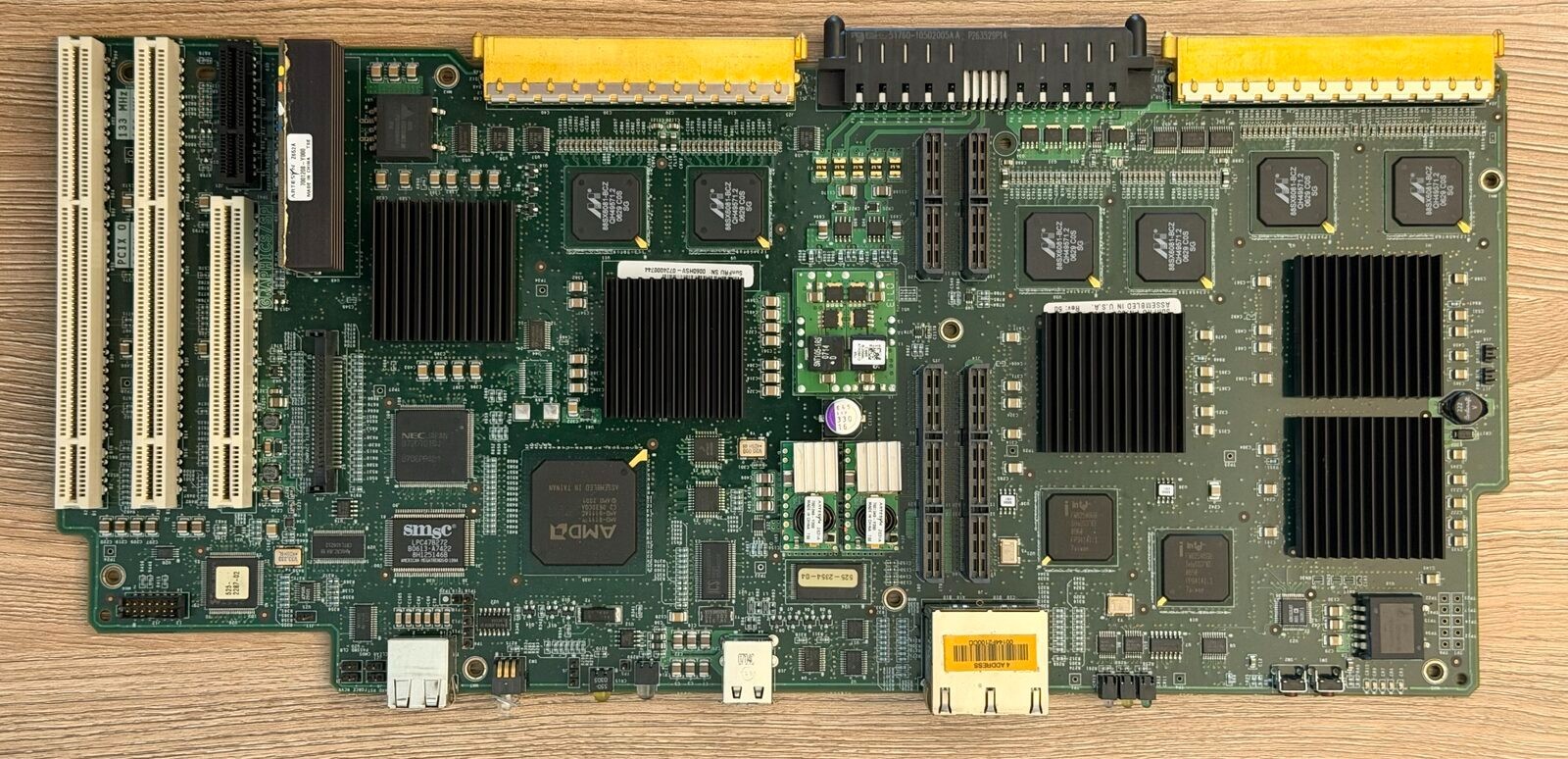

Main system board pulled from a Sun Fire X4500 ("Thumper") storage server. SunFRU PN: 501-7102-05, Rev 50, Assembled in USA. This is the PCI-X/PCIe I/O board with the six Marvell 88SX6081 SATA controllers used to drive the X4500's 48-drive SATA array, dual PCI-X slots, onboard graphics/service processor header, and rear networking/USB ports.
This board pairs with the matching Sun Fire X4500 CPU/Memory board (dual AMD Opteron 285, SunFRU PN 501-7278-04), which I have listed separately and can bundle if you need both - I have both parts with part numbers confirmed.
Specs (from board label):System: Sun Fire X4500 ("Thumper")SunFRU Part Number: 501-7102-05, Rev 50SATA Controllers: 6x Marvell 88SX6081 (48-port total, drives the X4500's 48-bay SATA array)Expansion: PCI-X slots (133MHz) plus additional PCIe/graphics headerOnboard: AMD chipset, dual Gigabit Ethernet, service processor header
Condition / Testing:Tested for power only - confirmed the board powers on. Not tested for full functionality, POST, or SATA controller diagnostics.Sold as-is, untested beyond power-on.
What's Included:1x Sun Fire X4500 system board (PCI-X/SATA I/O board) only
NOT Included:No CPU/Memory board (available separately), no RAM, no chassis, no drives, no cables
Sold as-is. Please review all photos as they form part of the description. Message with any questions before purchasing.
